N to N Female Bulkhead Adapter, DC-12 GHz

Order No:AD-N2N25A-BH/83-83
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
12
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20

Description

N Female to N Female Bulkhead Adapter, DC-12 GHz, VSWR 1.2, 50 Ω Impedance.

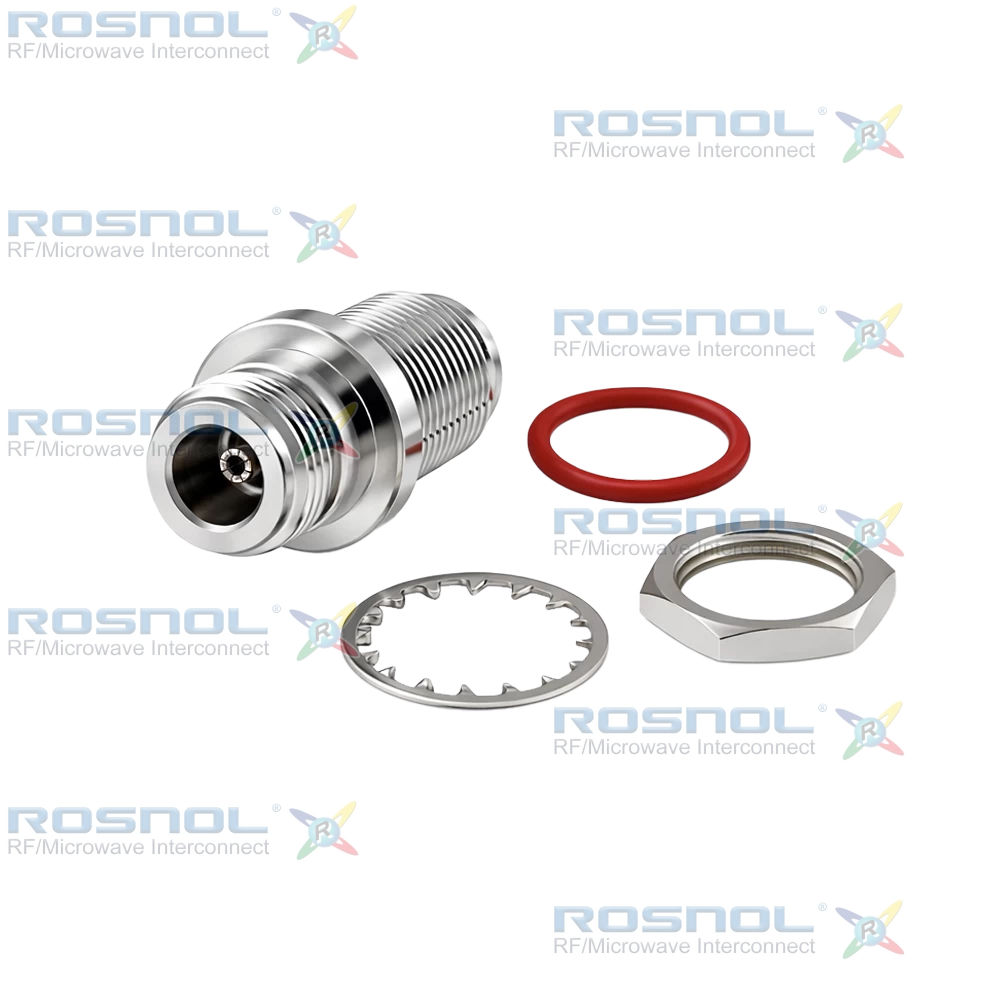

ROSNOL AD-N2N25A-BH/83-83 is an N Jack (Female) to N Jack (Female) Bulkhead RF Adapter designed for broadband RF interconnection and panel-mount applications. Supporting DC to 12 GHz operation with 50 Ω impedance and VSWR ≤ 1.20, this adapter provides dependable performance for RF, microwave, antenna, and communication systems.

The adapter utilizes beryllium copper center contacts with silver plating to support excellent conductivity. The connector bodies, washers, and fastening nuts are manufactured from brass with nickel plating, while PTFE insulators provide stable dielectric characteristics. Electrical specifications include insertion loss ≤ 0.05 × √F (GHz) dB, insulation resistance ≥ 5 GΩ, center contact resistance ≤ 1 mΩ, working voltage 500 Vrms, power handling up to 1000 W at 1 GHz, and RF leakage ≥ 128 dB up to 1 GHz.

Featuring a robust bulkhead structure and screw-on N interfaces with a minimum of 500 mating cycles, AD-N2N25A-BH/83-83 is ideal for RF communication equipment, wireless infrastructure, antenna feed systems, instrumentation platforms, and test & measurement environments.
