Precision SMA Female Bulkhead Adapter, DC-27 GHz

Order No:AD-PCA2PCA25B-BH/9X-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead Hexagonal Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
27
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

Precision SMA Female to Precision SMA Female Bulkhead Adapter, DC-27 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

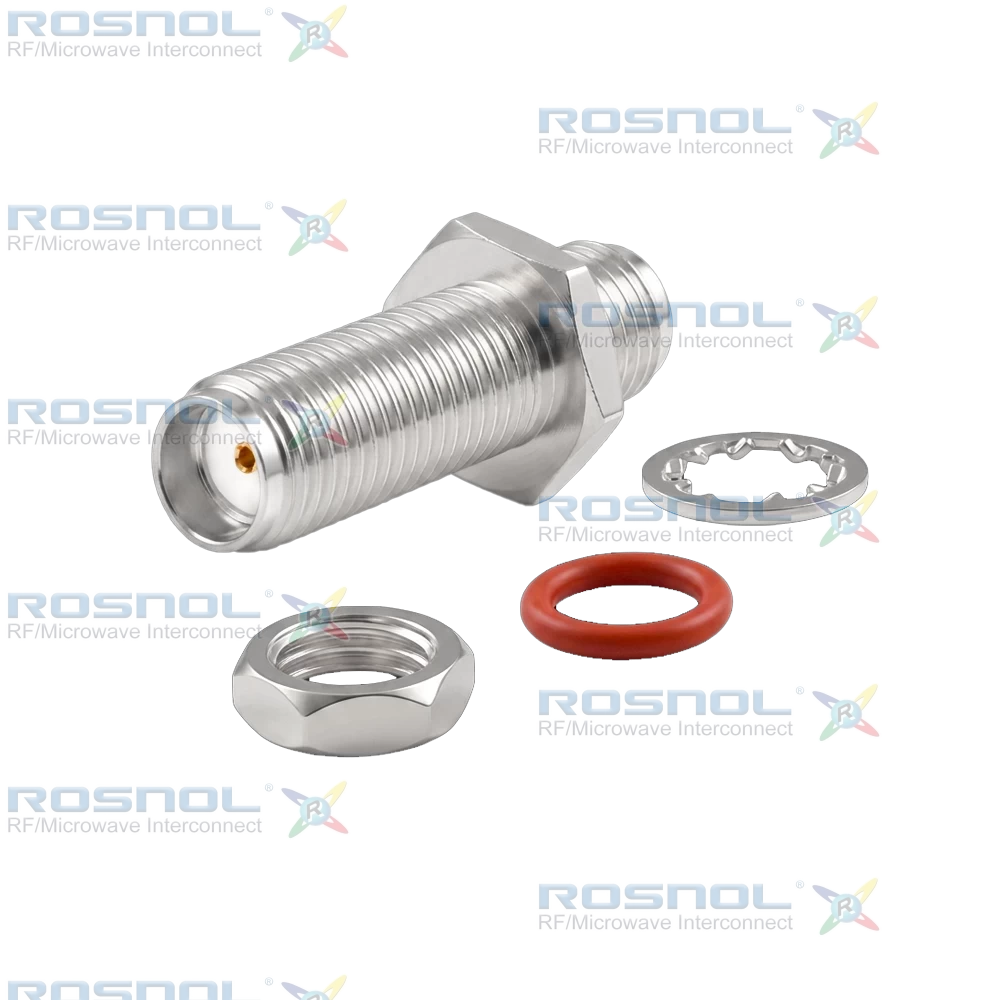

ROSNOL AD-PCA2PCA25B-BH/9X-9X is a Precision SMA Jack (Female) to Precision SMA Jack (Female) bulkhead adapter designed for RF and microwave applications up to 27 GHz. Featuring 50 Ω impedance, VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage ≥ 100 dB, it delivers excellent signal integrity and impedance stability for precision interconnect systems.

The adapter incorporates beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating, passivated stainless-steel bodies, PTFE insulators, and brass fastening hardware with copper-tin-zinc alloy plating. A sealing structure enhances environmental protection, while insulation resistance of 5 GΩ minimum and low contact resistance support dependable electrical performance.

Designed with a secure screw-lock interface and rated for at least 500 mating cycles, this adapter is suitable for RF instrumentation, aerospace electronics, communication systems, and microwave test applications requiring stable high-frequency connectivity and long-term reliability.
