Precision SMA Female Bulkhead Adapter, DC-27 GHz

Order No:AD-PCA2PCA25B-BH/91-91
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead Hexagonal Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
27
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.15

Description

Precision SMA Female to Precision SMA Female Bulkhead Adapter, DC-27 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

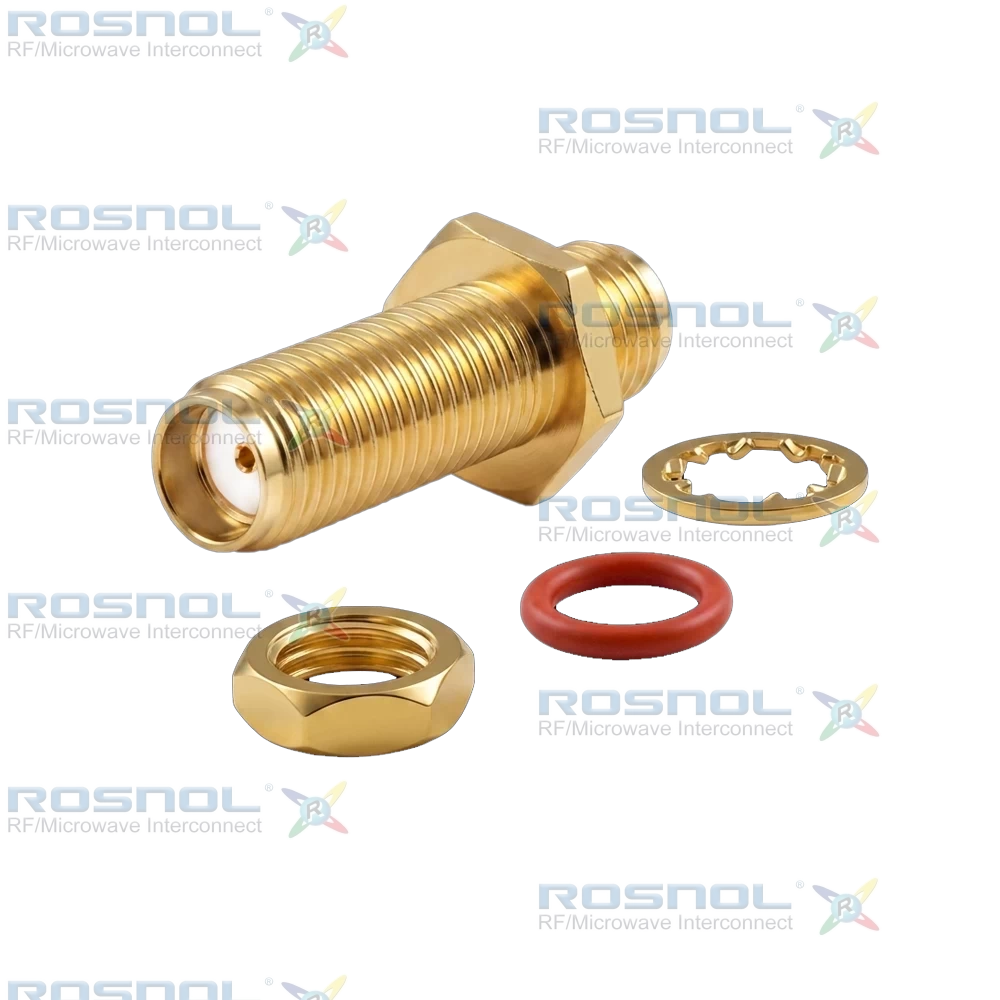

ROSNOL AD-PCA2PCA25B-BH/91-91 is a Precision SMA Jack (Female) to Precision SMA Jack (Female) bulkhead adapter developed for RF and microwave systems operating from DC to 27 GHz. With 50 Ω impedance, VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and power handling up to 200 W at 2 GHz, it ensures excellent signal quality and broadband performance.

The adapter incorporates beryllium copper center contacts and brass bodies with gold plating over non-magnetic nickel-phosphorus underplating, PTFE insulators, and gold-plated fastening hardware. An integrated sealing structure enhances environmental protection, while the precision-machined construction supports low resistance and stable electrical characteristics.

Designed for high-performance RF interconnections, this adapter offers a secure screw-lock interface, minimum 500 mating cycles, and reliable impedance control. It is well suited for microwave instrumentation, communication infrastructure, RF testing, and other applications requiring dependable high-frequency connectivity.
