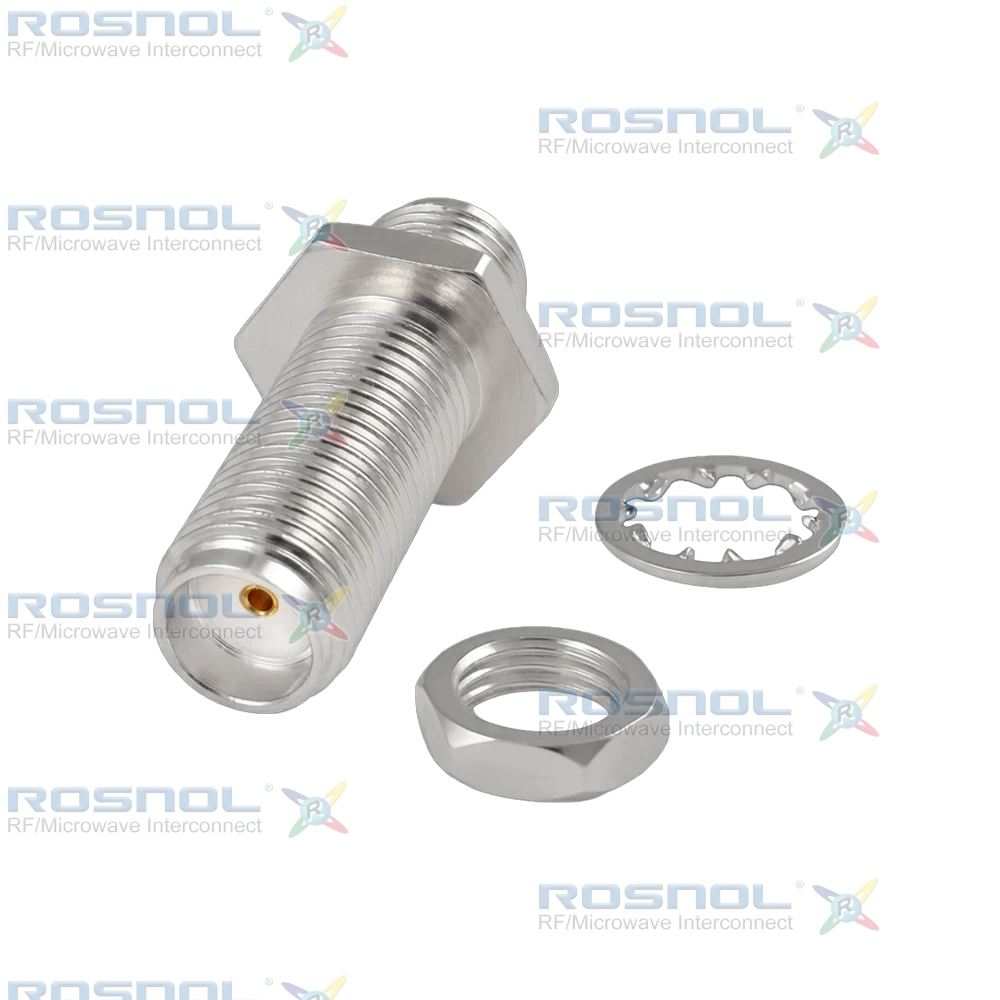

Precision SMA Female Bulkhead Adapter, DC-27 GHz

Order No:AD-PCA2PCA25A-BH/9X-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead Hexagonal Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
27
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

Precision SMA Female to Precision SMA Female Bulkhead Adapter, DC-27 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-PCA2PCA25A-BH/9X-9X is a Precision SMA Jack (Female) to Precision SMA Jack (Female) bulkhead adapter engineered for high-frequency RF and microwave systems. With 50 Ω impedance, DC to 27 GHz frequency coverage, VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and power handling up to 200 W at 2 GHz, it delivers excellent signal integrity and broadband performance.

The adapter features beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating, passivated stainless-steel bodies, PTFE insulators, and brass mounting hardware with copper-tin-zinc alloy plating. This construction provides low contact resistance, high insulation resistance of 5 GΩ minimum, and long-term corrosion protection.

Designed for precision RF interconnections, the adapter incorporates a secure screw-lock interface with a minimum of 500 mating cycles. It is well suited for aerospace electronics, microwave communication systems, RF instrumentation, and laboratory test applications requiring stable impedance matching and reliable signal transmission.
