Precision SMA Female Bulkhead Adapter, DC-27 GHz

Order No:AD-PCA2PCA25A-BH/91-91
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
Bulkhead Hexagonal Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
27
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.15

Description

Precision SMA Female to Precision SMA Female Bulkhead Adapter, DC-27 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

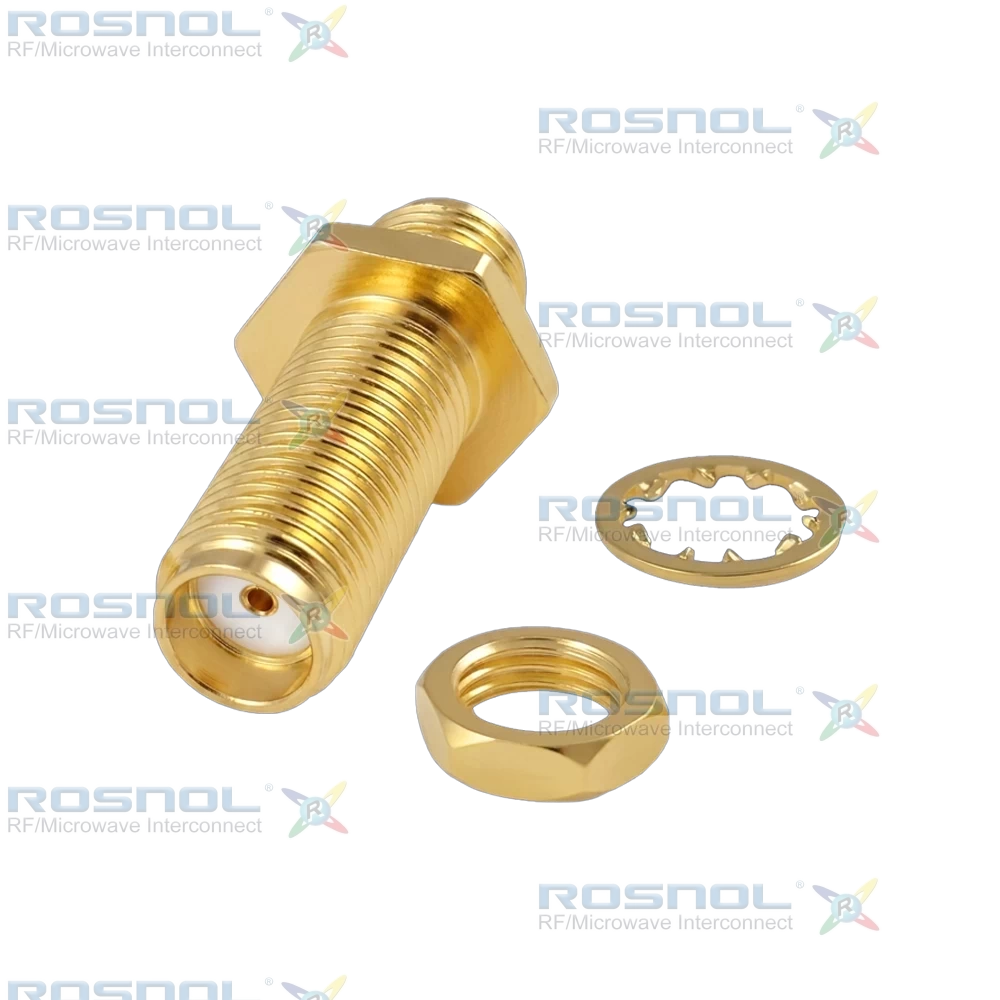

ROSNOL AD-PCA2PCA25A-BH/91-91 is a Precision SMA Jack (Female) to Precision SMA Jack (Female) bulkhead adapter designed for demanding RF and microwave applications up to 27 GHz. Featuring 50 Ω impedance, VSWR ≤ 1.15, insertion loss ≤ 0.05 × √F (GHz) dB, and RF leakage of at least 100 dB, it provides outstanding electrical performance across a wide frequency range.

The adapter utilizes beryllium copper center contacts and brass bodies with gold plating over non-magnetic nickel-phosphorus underplating, combined with PTFE insulators and gold-plated mounting hardware. The high-quality materials support low contact resistance, excellent conductivity, and dependable long-term durability in precision RF environments.

Its bulkhead mounting configuration and screw-lock coupling mechanism ensure secure installation and repeatable performance. The adapter is ideal for communication equipment, microwave assemblies, automated test systems, and precision measurement applications requiring low-loss signal transmission and robust mechanical reliability.
