Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
N
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
4 Hole Flange
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
11
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15
Description

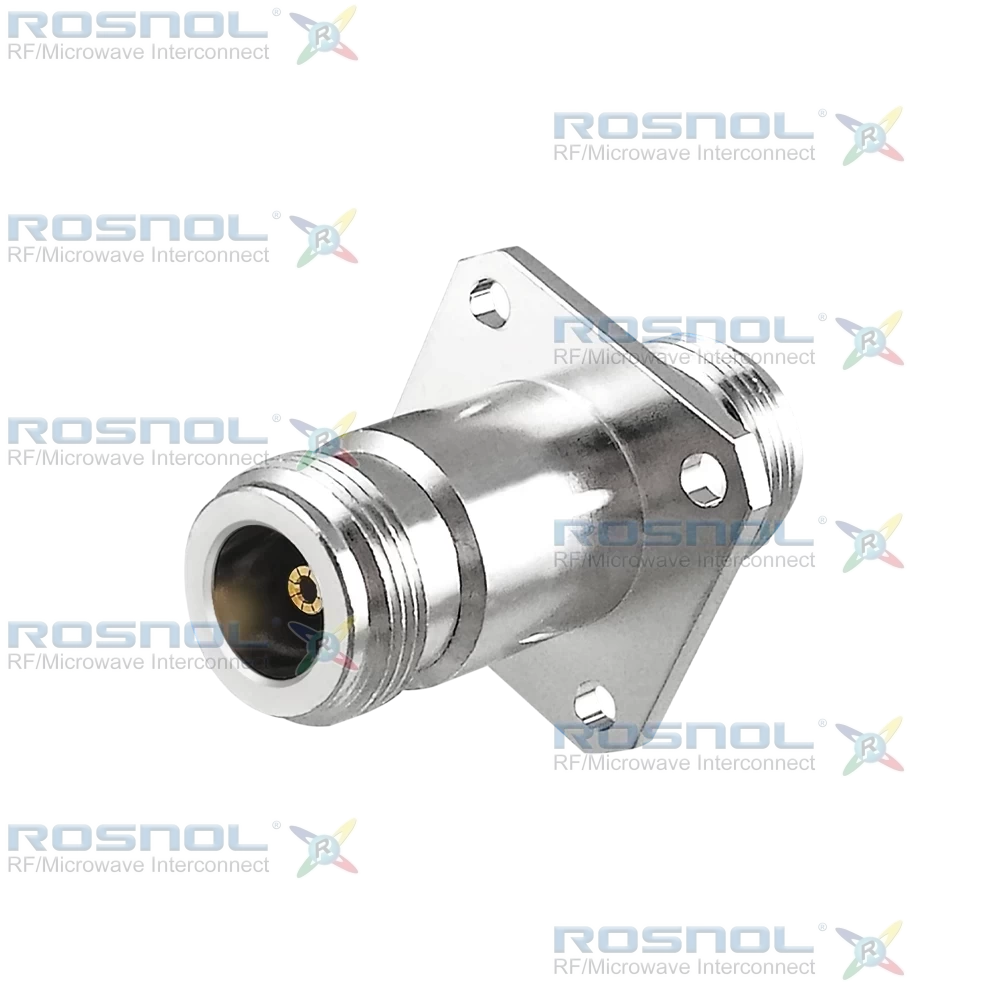

N Jack (Female) to N Jack (Female) | 4-Hole Flange Panel Mount | Screw-Lock | Stainless Steel Body
The ROSNOL AD-N2N25B-PF/9X-9X delivers outstanding RF performance for frequencies up to 11 GHz with a 50 Ω impedance. It maintains VSWR ≤ 1.15 and insertion loss ≤ 0.04√F (GHz) dB, ensuring superior signal integrity. Rated for power handling up to 1000 W at 1 GHz and 700 W at 2 GHz, this adapter is built for reliability. The screw-lock coupling mechanism provides secure engagement with ≥ 500 mating cycles and recommended torque of 0.7 to 1.1 Nm.Engineered with high-grade materials, the center contact is beryllium copper with gold plating over nickel-phosphorus underplating for optimal conductivity. The body and coupling nut are stainless steel with passivated finish, complemented by PTFE insulators for environmental sealing. Designed to withstand temperatures from -55°C to +155°C, this adapter ensures durability in harsh environments.
ROSNOL’s precision RF connectors combine high performance with cost efficiency, making them ideal alternatives to leading global brands. Manufactured in ISO 9001-certified facilities and fully compliant with RoHS and REACH standards, these connectors guarantee quality and environmental safety. Customization services for plating, materials, and mechanical design are available to meet specialized requirements.
