SMA Jack (Female) to SMA Jack (Female) Bulkhead Adapter, DC-18GHz VSWR 1.20

SMA Jack (Female) to SMA Jack (Female) | Bulkhead | Screw-Lock | Stainless Steel Body | Epoxy Captivation

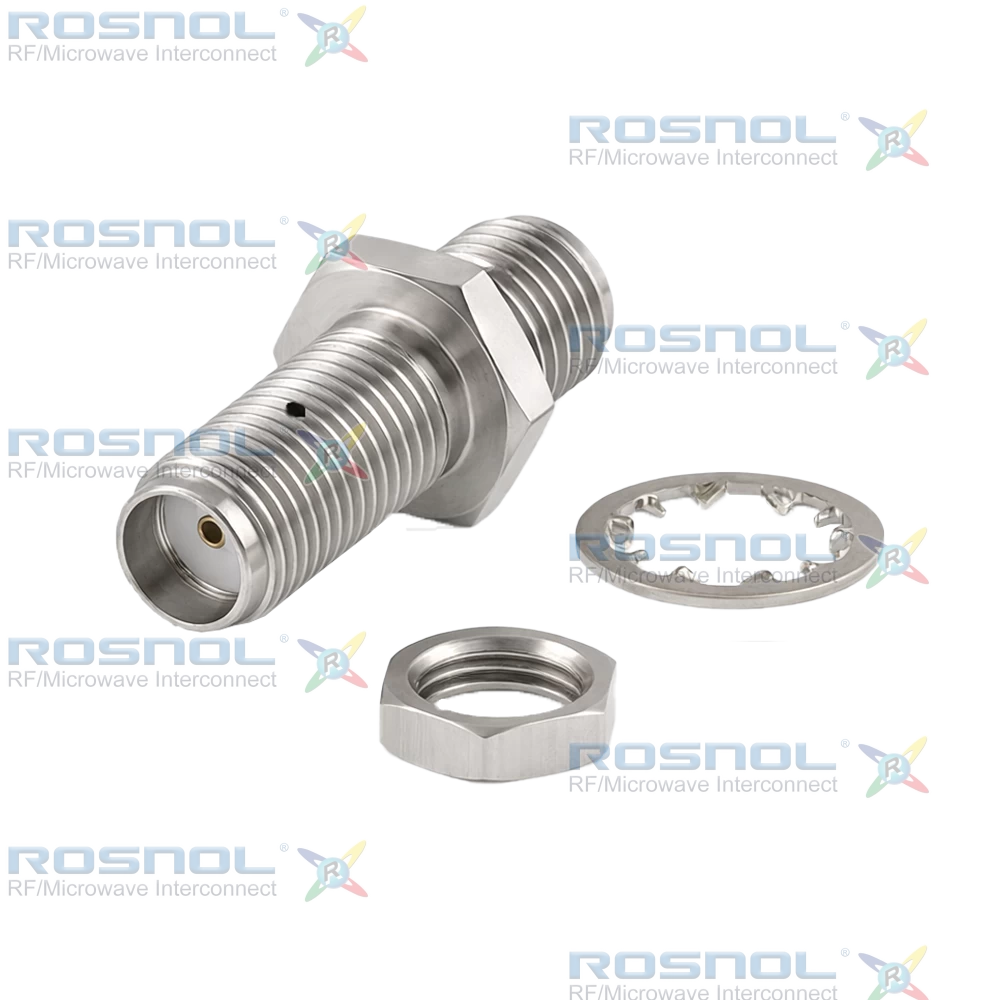

The ROSNOL AD-A2A25J-BH-EC/9X-9X is a bulkhead SMA jack-to-jack adapter featuring epoxy captivation for enhanced durability. It supports DC to 18 GHz operation at 50 Ω impedance, with VSWR ≤ 1.20 (Return Loss ≥ 20.8 dB), insertion loss ≤ 0.05 × √f (GHz), insulation resistance ≥ 5 GΩ, center contact resistance ≤ 3 mΩ, outer contact resistance ≤ 2 mΩ, test voltage 1000 V rms, working voltage 480 V rms, and power handling up to 200 W at 2 GHz. RF leakage is rated at ≥ 100 dB up to 1 GHz. The screw-lock coupling ensures axial contact captivation ≥ 27 N, radial captivation ≥ 3 N·cm, and mechanical endurance of ≥ 500 mating cycles, with recommended torque 0.8–1.1 Nm.

Piece parts and plating: center contact in beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating; body and fastening nut in stainless steel, passivated; PTFE insulator; washer in brass with copper-tin-zinc alloy finish. The design supports operation from −65 °C to +165 °C and provides superior corrosion resistance.

ROSNOL’s precision-engineered RF adapters deliver dependable performance for RF and microwave systems. Built under ISO 9001-certified processes and fully compliant with RoHS and REACH, ROSNOL offers high quality at competitive pricing as an effective alternative to major global brands. Customization services for plating, materials, and mechanical design are available.
