Key Specifications
Type Design:
Standard
Connection Type:
In-Series
Connector 1 Series:
SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20
Description

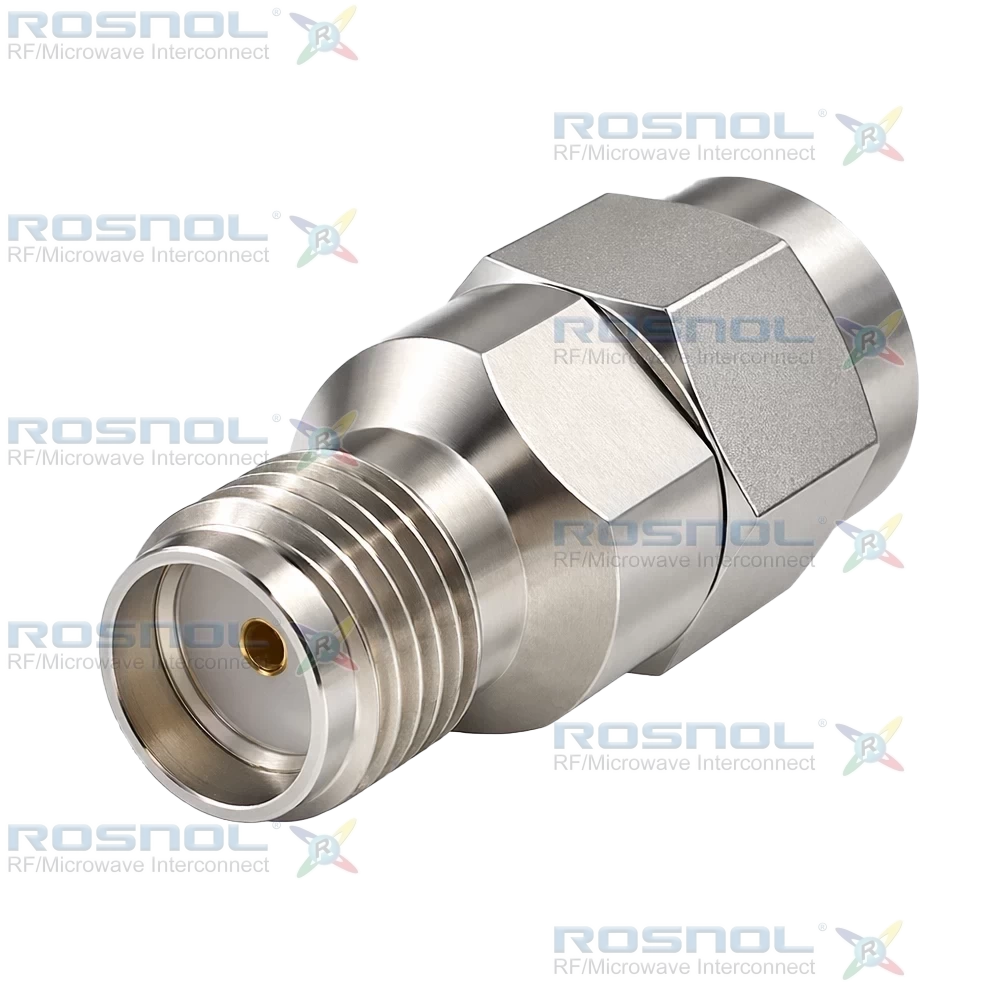

SMA Plug (Male) to SMA Jack (Female) Adapter | Straight Design | Screw-Lock | Brass Body
The ROSNOL AD-A1A25A/933-93 is a precision 50-ohm straight adapter designed for DC to 18 GHz operation, delivering VSWR ≤ 1.20 (≥ 20.83 dB return loss) and insertion loss ≤ 0.03 × √F (GHz) dB. It ensures insulation resistance ≥ 5 GΩ, center contact resistance ≤ 3 mΩ, and outer contact resistance ≤ 2 mΩ. RF leakage is rated at ≥100 dB up to 1 GHz, with power handling capability up to 200 W at 2 GHz. Screw-lock coupling provides secure engagement, with mechanical endurance of ≥500 mating cycles and recommended torque of 0.8–1.1 Nm.Piece-part construction includes beryllium copper center contacts finished with gold plating over a non-magnetic nickel-phosphorus underplating for optimal conductivity and longevity. The bodies and coupling nuts are brass with nickel plating, and PTFE insulators ensure stable dielectric performance. Silicone rubber gaskets enhance sealing for environmental protection. The design supports reliable service across −65°C to +165°C.
ROSNOL’s precision-engineered RF adapters deliver consistent broadband performance at competitive pricing, making them an effective alternative to leading European and American brands. All ROSNOL RF components are produced in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations. Customization services for materials, plating, and mechanical design are available to accommodate specialized interconnect requirements.
