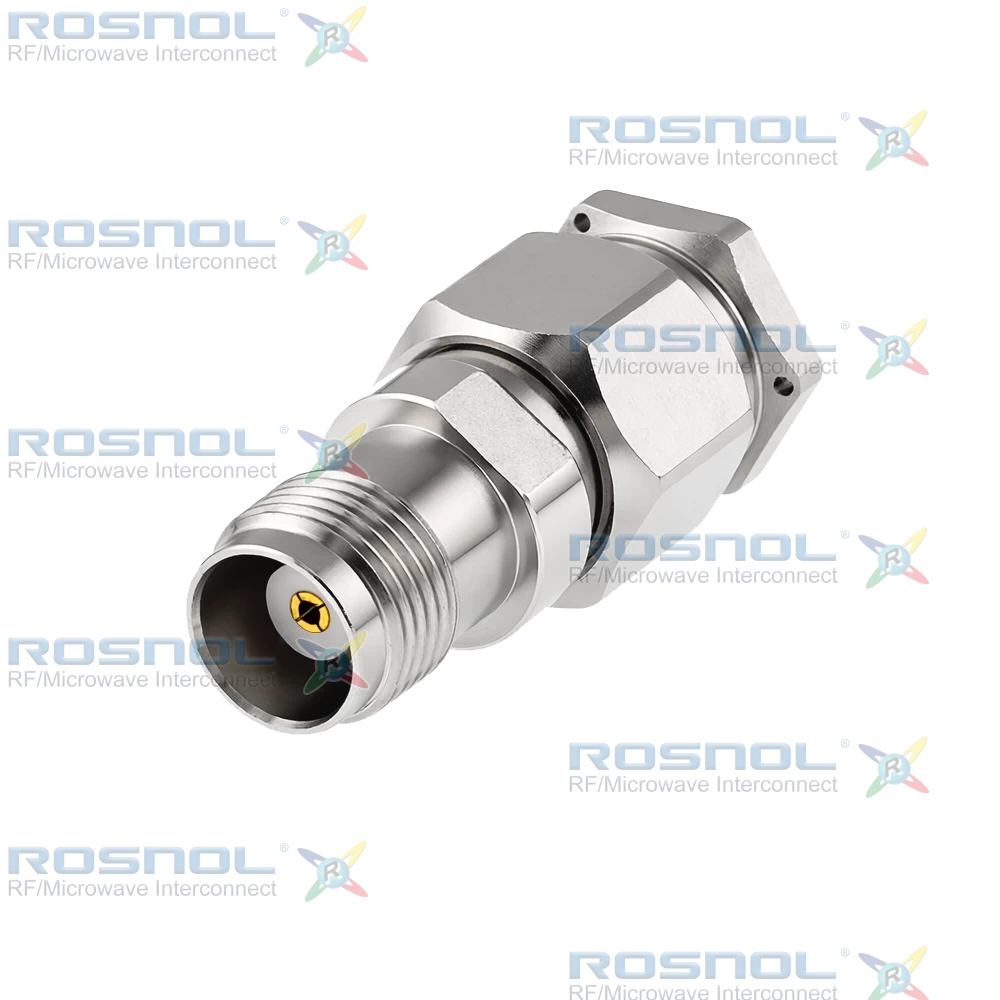

TK Male to Precision TNC Female Adapter, 18 GHz

Order No:AD-TK1PCT25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
TK
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision TNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.20

Description

TK Male to Precision TNC Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.20, 50 Ω Impedance.

ROSNOL AD-TK1PCT25A/9XX-9X is a high-performance RF adapter designed to interconnect a TK plug (male) interface with a Precision TNC jack (female) interface. Supporting a frequency range from DC to 18 GHz with 50 Ohm impedance, the adapter delivers excellent signal integrity with VSWR ≤ 1.20 and low insertion loss, making it suitable for precision microwave and RF measurement applications.

The adapter features beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating for stable electrical performance and corrosion resistance. The body and coupling nut are manufactured from stainless steel with passivated finishing, while PTFE insulation provides reliable dielectric characteristics. Screw-lock coupling on both interfaces ensures secure and repeatable connections.

Designed for demanding RF and microwave environments, this adapter enables accurate interconnection between TK and Precision TNC systems. Its broadband performance, low reflection characteristics, and durable mechanical construction make it well suited for laboratory instruments, RF test systems, calibration setups, communication equipment, and microwave measurement applications requiring consistent signal transmission.
