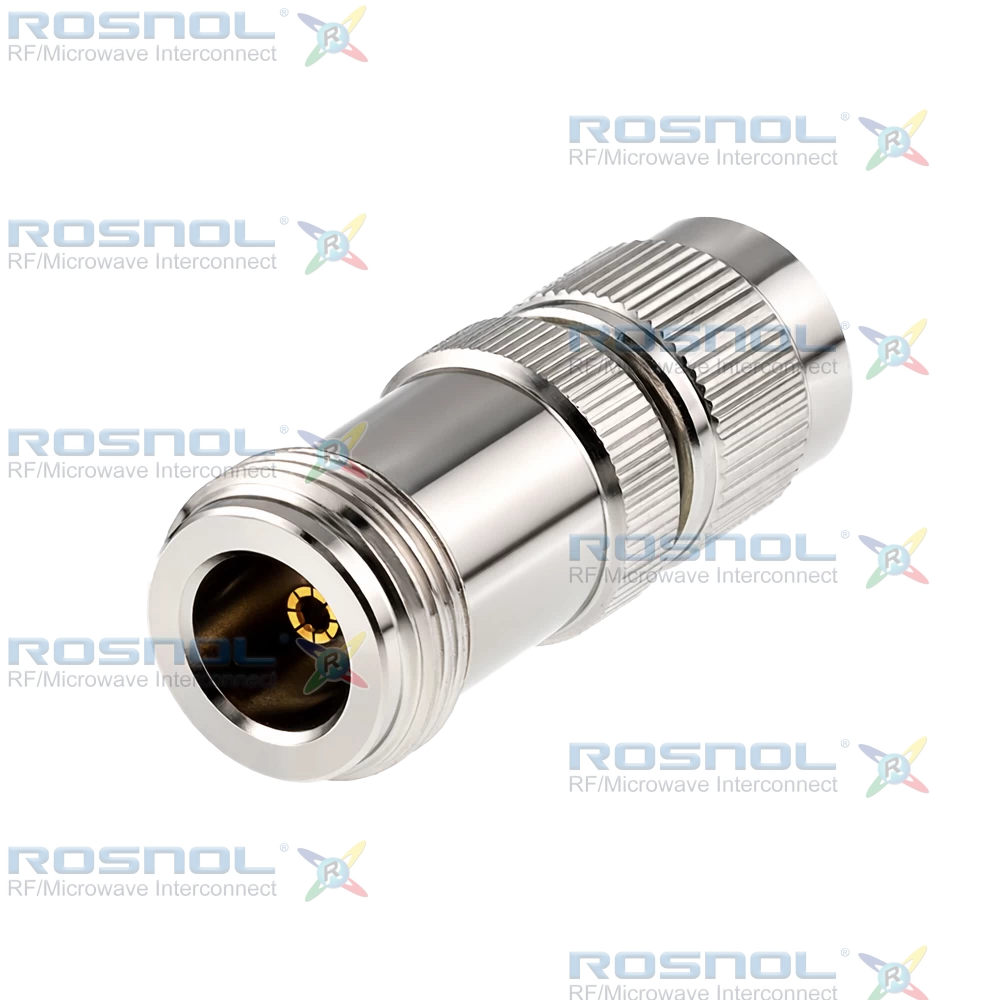

TNC Male to N Female Adapter, DC-11 GHz

Order No:AD-T1N25C/133-H3
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
TNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
N
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Bayonet
Frequency, Max (GHz):
11
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20

Description

TNC Male to N Female Straight Adapter, DC-11 GHz, VSWR ≤ 1.2, 50 Ω Impedance.

ROSNOL AD-T1N25C/133-H3 is a high-performance 50 Ω RF adapter featuring a TNC Plug (Male) to N Jack (Female) configuration. Operating from DC to 11 GHz, the adapter provides VSWR ≤ 1.20, low insertion loss, and excellent RF leakage performance, making it ideal for communication equipment, antenna systems, RF testing, and microwave transmission applications.

The adapter incorporates a phosphor bronze center contact on the N side and a brass center contact on the TNC side, both finished with gold plating over non-magnetic nickel-phosphorus underplating. The body and coupling nut are manufactured from nickel-plated brass, while PTFE insulators provide excellent electrical stability. Key specifications include ≤0.05 × √F dB insertion loss, ≥5 GΩ insulation resistance, 500 Vrms working voltage, 1500 V dielectric withstanding voltage, and 80 W power handling at 2 GHz.

With threaded coupling interfaces, a minimum mating life of 500 cycles, and an operating temperature range of-65°C to +165°C, the AD-T1N25C/133-H3 ensures reliable long-term performance. It is well suited for RF laboratories, wireless communication infrastructure, test systems, and microwave equipment requiring stable TNC-to-N connectivity.
