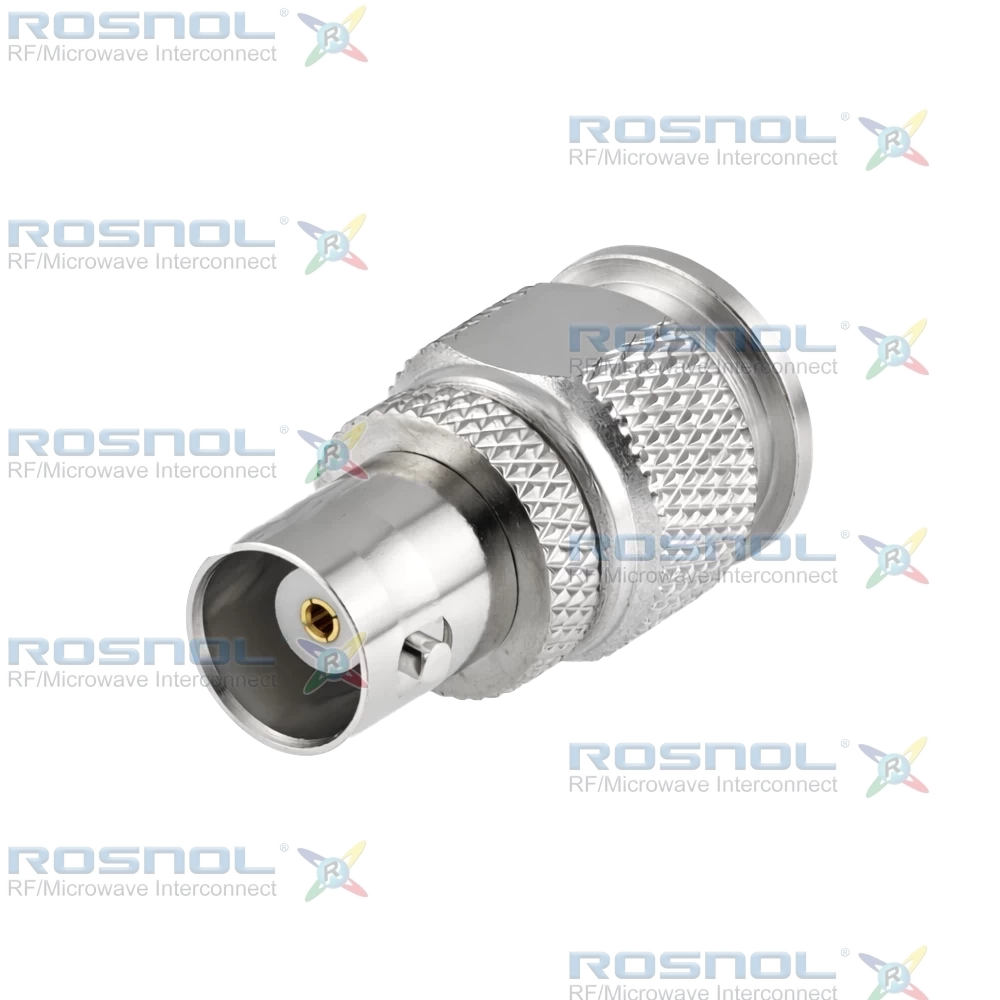

TNC Male to BNC Female Straight Adapter, DC-4 GHz, VSWR ≤ 1.2, 50 Ω Impedance.
ROSNOL AD-T1B25A/933-93 is a 50 Ω straight RF adapter designed to connect a TNC Plug (Male) to a BNC Jack (Female) interface. Operating from DC to 4 GHz with VSWR ≤ 1.20 and low insertion loss, this adapter provides reliable signal transmission and impedance stability for RF communication, instrumentation, antenna systems, and laboratory test applications.
The adapter features beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating, brass bodies with nickel plating, and PTFE insulators for excellent dielectric performance. Electrical specifications include ≤0.05 × √F dB insertion loss, ≥5 GΩ insulation resistance, 1500 Vrms dielectric withstanding voltage, 400 Vrms working voltage, and power handling up to 80 W at 2 GHz, ensuring dependable RF performance and low contact resistance.
With a threaded TNC interface and bayonet-lock BNC connection, the AD-T1B25A/933-93 enables fast, secure interconnection between RF systems. Supporting a minimum of 500 mating cycles and a wide operating temperature range of-65°C to +165°C, it is ideal for RF testing, wireless infrastructure, measurement equipment, and signal distribution networks requiring TNC-to-BNC connectivity.
