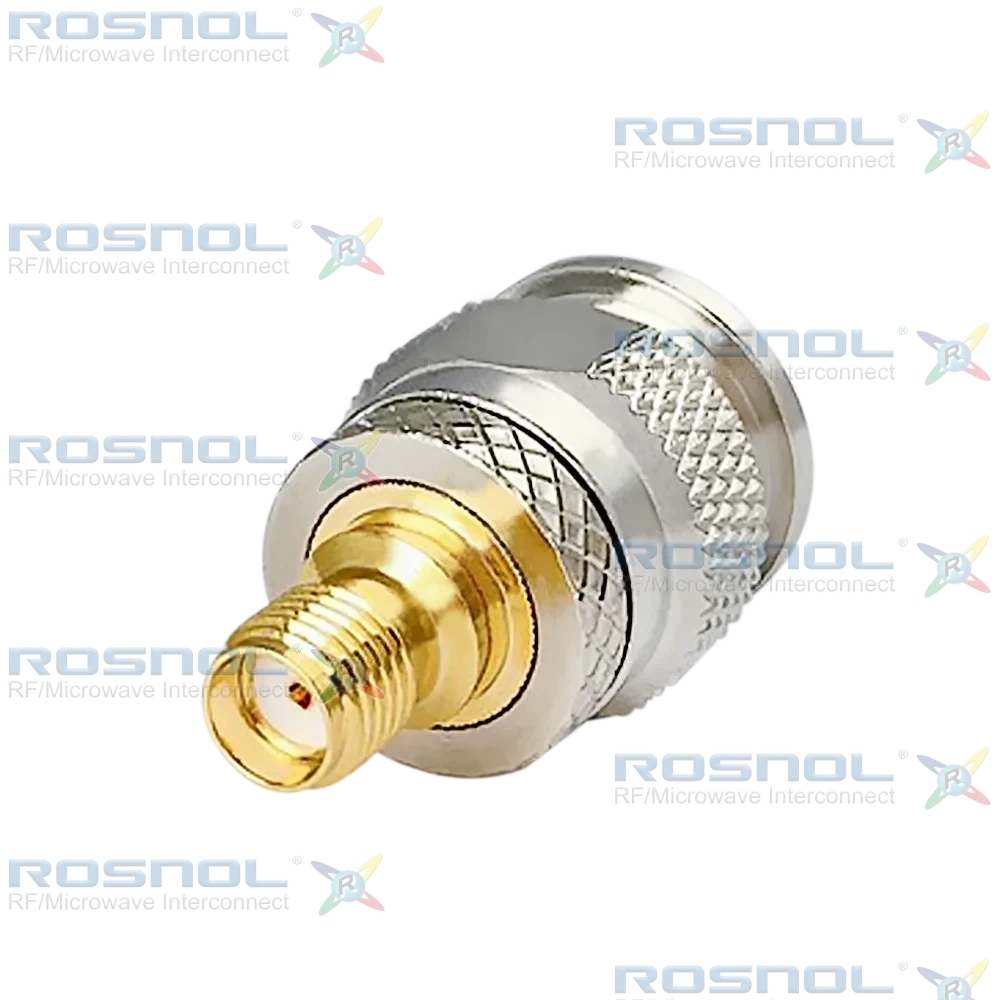

TNC Male to SMA Female Adapter, DC-11 GHz

Order No:AD-T1A25A/H33-91
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
TNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
11
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.25

Description

TNC Male to SMA Female Straight Adapter, DC-11 GHz, VSWR ≤ 1.25, 50 Ω Impedance.

ROSNOL AD-T1A25A/H33-91 is a high-performance 50 Ω RF adapter featuring a TNC Plug (Male) to SMA Jack (Female) configuration. Operating from DC to 11 GHz, it offers VSWR ≤ 1.25 and low insertion loss, enabling efficient signal transmission and minimized reflection across RF and microwave systems. The threaded coupling interfaces provide secure mechanical engagement for reliable operation in professional applications.

The adapter utilizes a phosphor bronze TNC center contact, beryllium copper SMA center contact, brass bodies, PTFE insulators, and a silicone rubber gasket. Both center contacts feature gold plating over non-magnetic nickel-phosphorus underplating for enhanced conductivity and wear resistance. The TNC body and coupling nut are nickel plated, while the SMA body is gold plated, providing excellent corrosion protection and stable electrical characteristics. Electrical performance includes insulation resistance ≥ 5 GΩ, working voltage 480 Vrms, and power handling up to 80 W at 2 GHz.

With a minimum mating life of 500 cycles and an operating temperature range of -65°C to +165°C, the AD-T1A25A/H33-91 is suitable for RF instrumentation, wireless communication equipment, microwave assemblies, antenna systems, and laboratory test environments requiring reliable TNC-to-SMA connectivity.
