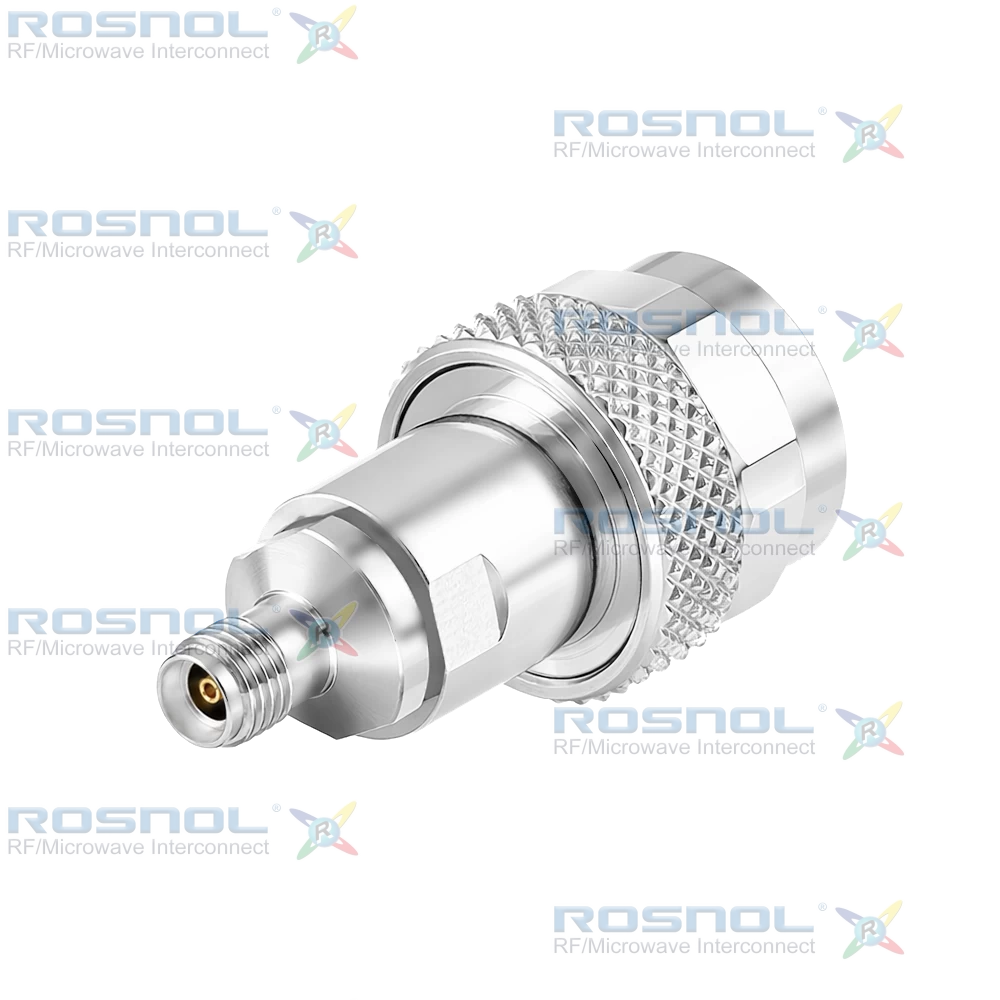

Precision N Male to 3.5mm Female Adapter

Order No:AD-PCN1PC25A/9XX-9X
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
Precision N
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
3.5mm
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.15

Description

Precision N Male to 3.5mm Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-PCN1PC25A/9XX-9X is a precision straight RF adapter designed to connect a Precision N Plug (Male) interface to a 3.5 mm Jack (Female) interface. Featuring 50 Ω impedance, DC to 18 GHz frequency coverage, VSWR ≤ 1.15, and low insertion loss, this adapter provides reliable microwave signal transmission for RF test systems, communication equipment, and precision measurement applications.

The adapter utilizes beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure excellent conductivity and long-term contact stability. Both the Precision N and 3.5 mm connector bodies are manufactured from passivated stainless steel for superior durability and corrosion resistance. PS insulators and silicone rubber gaskets support stable dielectric performance. Important RF characteristics include insertion loss ≤ 0.05 × √F (GHz) dB, insulation resistance ≥ 5 GΩ, RF leakage ≥ 90 dB up to 1 GHz, and operating voltage up to 335 V rms.

Designed for high-accuracy RF interconnection, this adapter features secure screw-lock coupling, controlled impedance, and a minimum of 500 mating cycles. It is ideal for calibration equipment, RF laboratories, microwave assemblies, wireless infrastructure, and other demanding applications requiring Precision N to 3.5 mm connector adaptation while maintaining signal integrity.
