Key Specifications
Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
Precision SMA Snap-On
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Snap-On
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
26.5
Connector 1 Body Material:
Stainless Steel
Connector 1 Body Plating:
Passivated
Connector 2 Body Material:
Stainless Steel
Connector 2 Body Plating:
Passivated
VSWR, Max:
1.20
Description

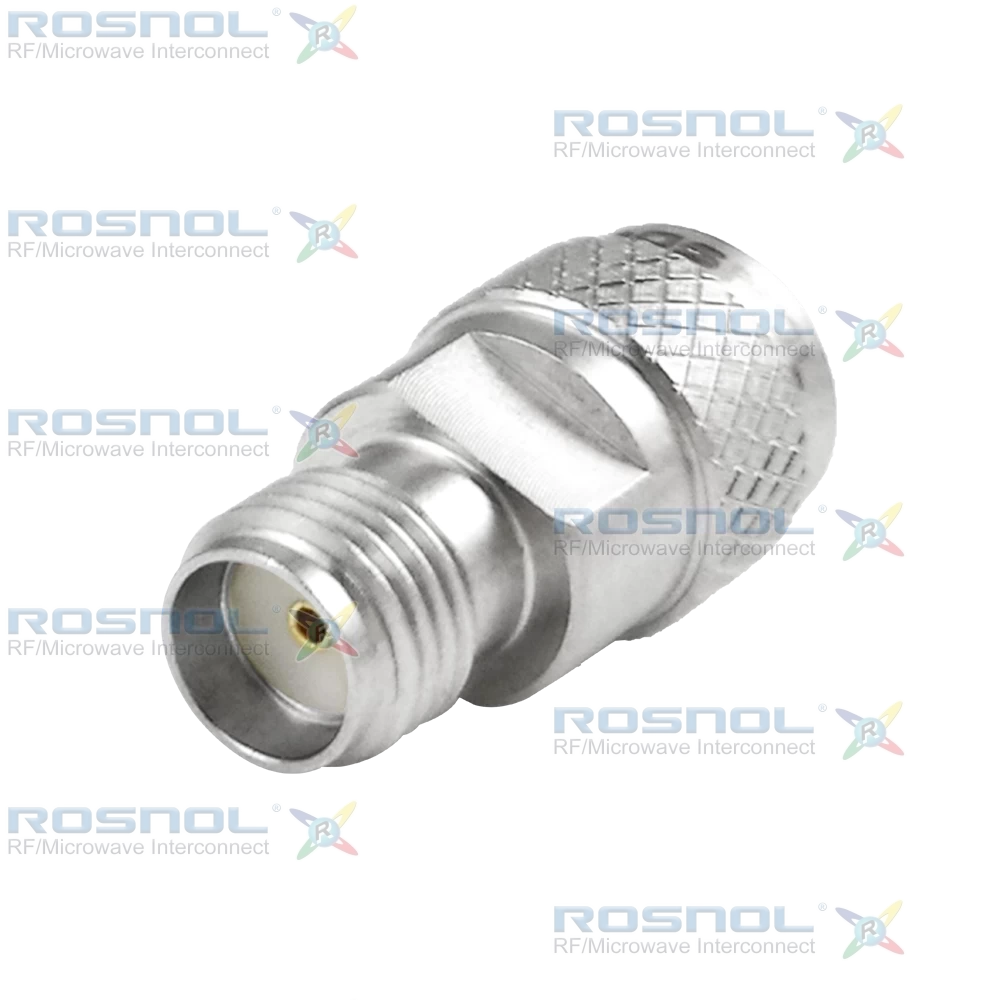

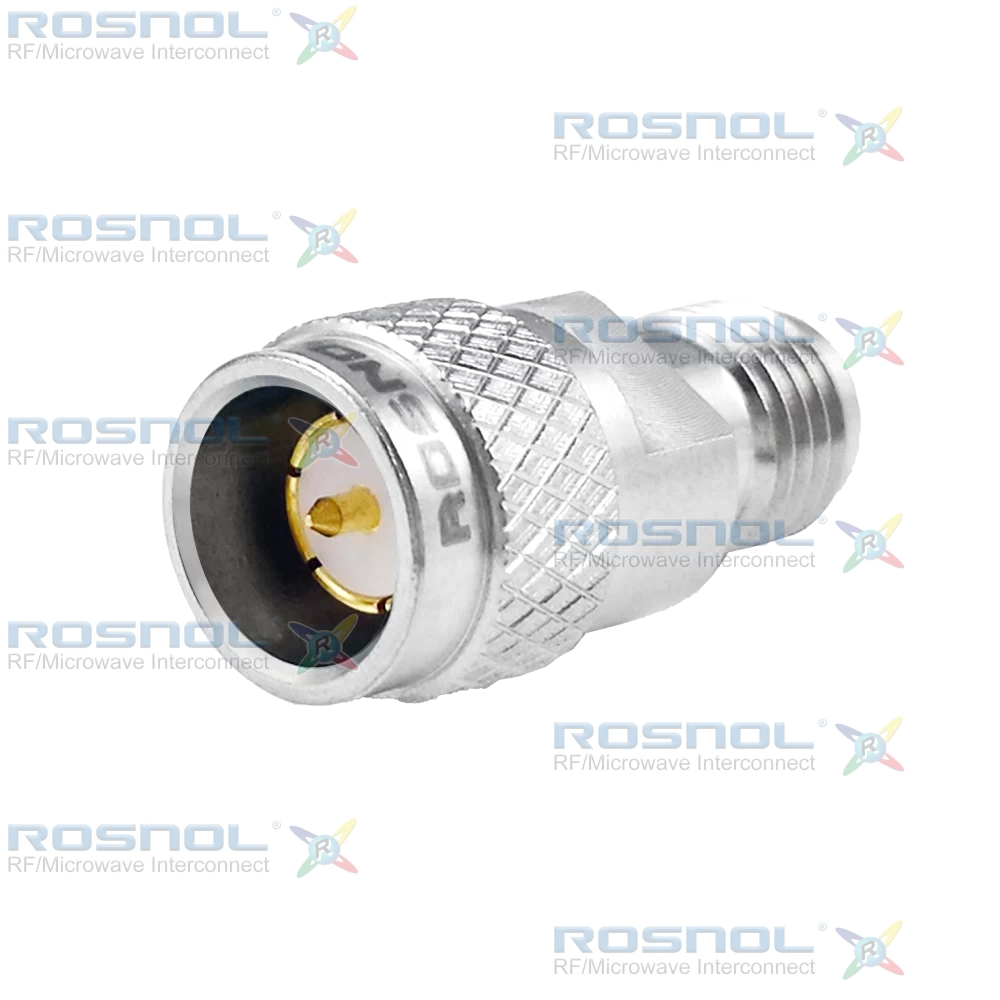

Precision SMA Snap-On Plug (Male) to Precision SMA Jack (Female) | Straight Adapter | Snap-Lock / Screw-Lock | Stainless Steel Body
The ROSNOL AD-PCAQ1PCA25A/99X-9X is designed for 50 Ω RF systems, supporting DC to 26.5 GHz with VSWR ≤ 1.20 and insertion loss ≤ 0.05 × √F (GHz). It combines snap-lock coupling on the plug side with screw-lock engagement on the jack side, ensuring secure connectivity and axial contact captivation ≥ 27 N. Mechanical durability reaches ≥ 500 cycles per side. Electrical specifications include insulation resistance ≥ 5 GΩ, test voltage 1000 V rms, and RF leakage ≥ 100 dB up to 1 GHz.The snap-on SMA interface uses beryllium copper center contacts plated with gold over nickel-phosphorus underplate, body components of beryllium copper with gold plating, and PTFE/PEI dielectric for thermal and electrical stability. The jack side features stainless steel body with passivated finish, beryllium copper center contacts with gold plating, and PTFE dielectric. A silicone rubber gasket ensures environmental sealing.
ROSNOL’s precision-engineered RF adapters provide high quality at cost-effective pricing. All products are manufactured in ISO 9001-certified facilities and comply with RoHS and REACH standards. Customization for materials, plating, and mechanical design is available to support specific system needs.
