BNC Male to SMA Female Adapter, DC-4 GHz

Order No:AD-B1A25A/133-13
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
BNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
4.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.15

Description

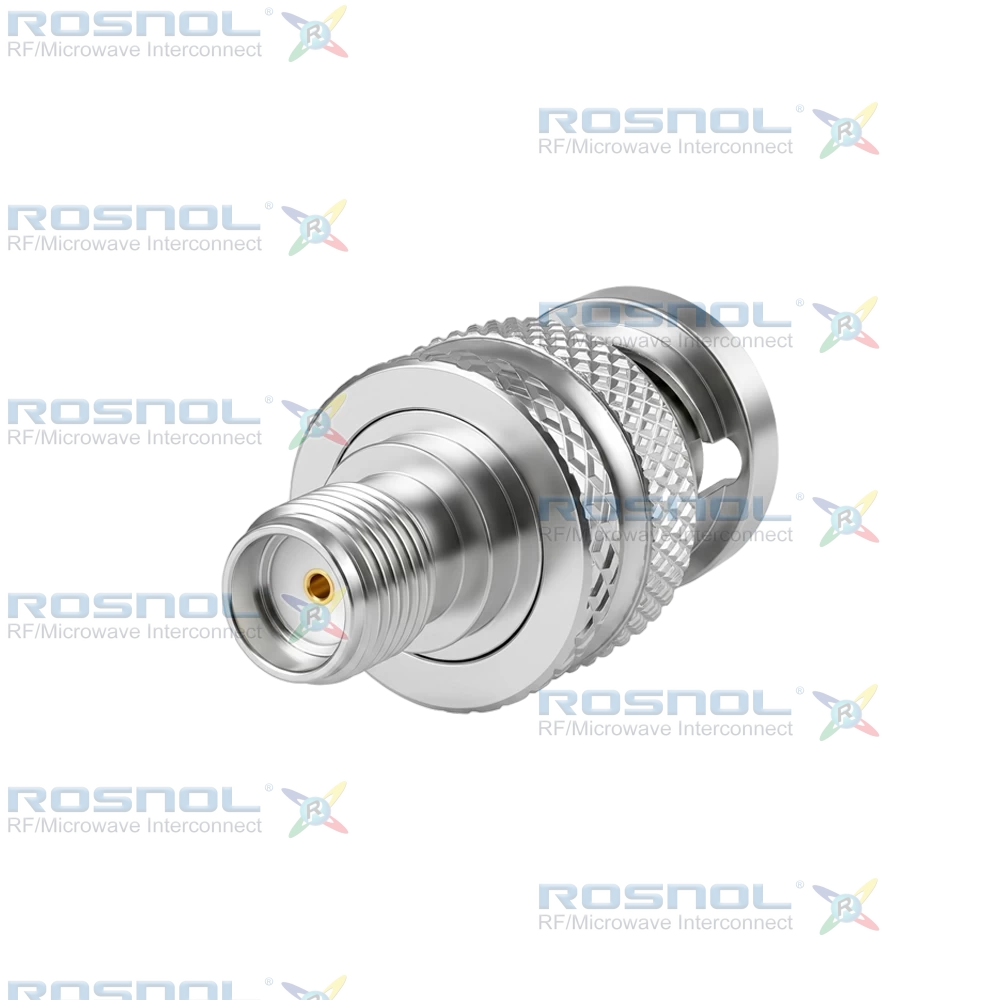

BNC Male to SMA Female Straight Adapter, DC-4 GHz VSWR ≤ 1.15, 50 Ω Impedance.

ROSNOL AD-B1A25A/133-13 is a high-performance BNC Plug (Male) to SMA Jack (Female) straight RF adapter designed for 50 Ω RF systems. Covering frequencies from DC to 4 GHz, the adapter delivers excellent signal integrity with VSWR ≤ 1.15, insertion loss of ≤ 0.04 × √F (GHz) dB, and power handling up to 80 W at 2 GHz, making it suitable for communication, testing, and measurement applications.

The adapter incorporates gold-plated brass center contacts with non-magnetic nickel-phosphorus underplating to ensure stable conductivity and long service life. The BNC and SMA bodies are manufactured from nickel-plated brass, while PTFE insulators and silicone rubber gaskets enhance dielectric stability and environmental durability. Electrical specifications include 400 Vrms working voltage and 1000 V test voltage.

Featuring a bayonet-lock BNC interface and a SMA screw-lock coupling mechanism, this adapter provides secure mating and dependable RF performance. With a minimum of 500 mating cycles and an operating temperature range of-65°C to +165°C, it is an ideal solution for RF instrumentation, wireless communications, laboratory testing, and antenna system integration.
