Key Specifications
Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
BNC
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
SMA
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Bayonet
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
4.0
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.15
Description

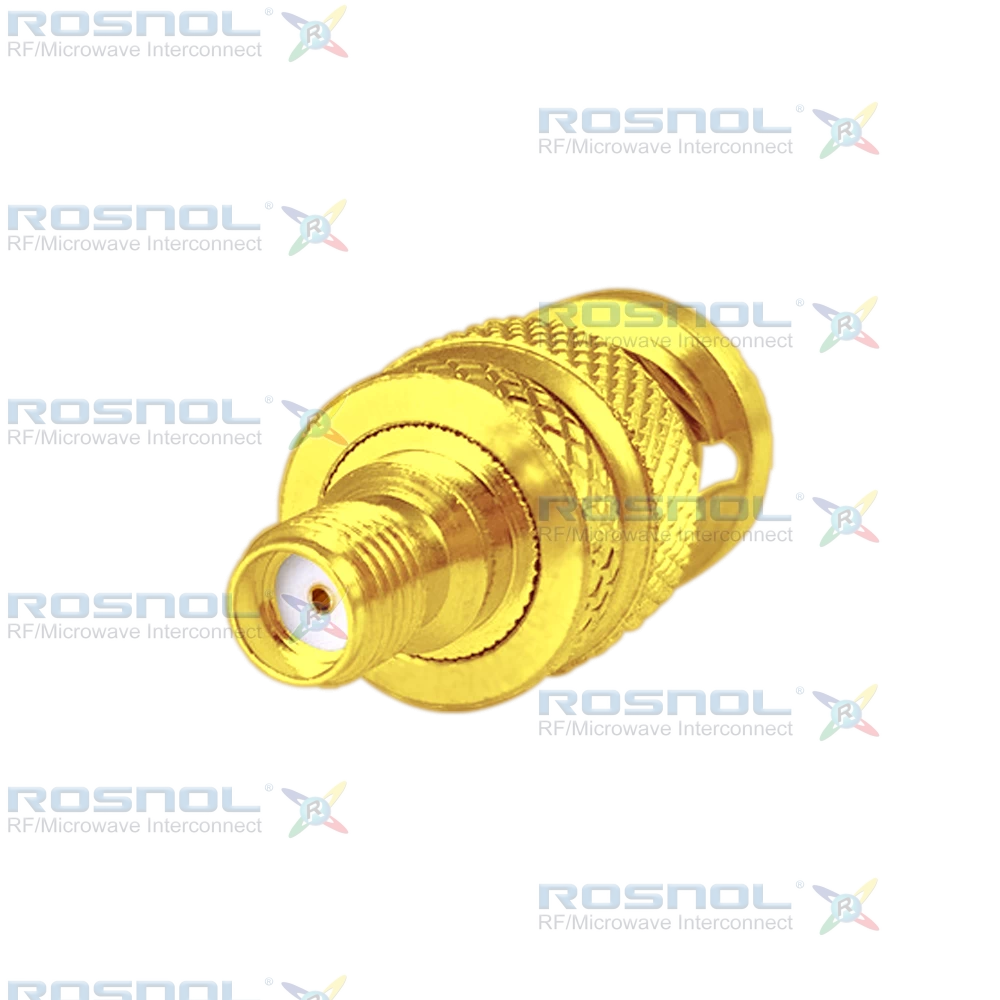

BNC Plug (Male) to SMA Jack (Female) Adapter | Bayonet-Lock & Screw-Lock | Brass Body
The ROSNOL AD-B1A25A/111-H1 adapter ensures reliable connectivity between BNC and SMA connectors for RF systems. Operating from DC to 4 GHz with 50 Ω impedance, it achieves VSWR ≤1.15 and insertion loss ≤0.04 × √F (GHz) dB. Electrical ratings include insulation resistance ≥5 GΩ, test voltage 1000 V RMS, and working voltage 400 V RMS. Designed for durability, it supports ≥500 mating cycles with bayonet-lock and screw-lock coupling mechanisms.The center contacts are phosphor bronze and brass with gold plating over nickel-phosphorus underplating for superior conductivity. Brass bodies feature gold plating, complemented by PTFE insulators and silicone rubber gaskets. The adapter withstands temperatures from -65°C to +165°C, ensuring dependable performance in demanding environments.
ROSNOL’s precision-engineered RF adapters deliver reliable performance across a wide range of RF and microwave systems. Designed to meet the stringent demands of high-frequency signal transmission, ROSNOL adapters offer a cost-effective alternative to products from leading European and American brands. All ROSNOL RF components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring global environmental and safety standards. Customization services for materials, plating, and mechanical design are available to support specialized interconnect requirements.
