SMA RA Male Cable Assembly, RFX085FEP, 10 GHz

Order No:A1E59-RFX085FEP-A1E59-380C/10G
Add Cart

Key Specifications

Connection Type:
In-Series
Impedance (Ohm):
50
Frequency, Max (GHz):
10
VSWR, Max:
1.25
Cable Type:
RFX085FEP
Left Side Series:
SMA
Left Side Gender:
Plug (Male)
Left Side Configuration:
Right Angle
Left Side Panel Mounting:
None
Right Side Series:
SMA
Right Side Gender:
Plug (Male)
Right Side Configuration:
Right Angle
Right Side Panel Mounting:
None
Cable Length:
Build-to-Order

Description

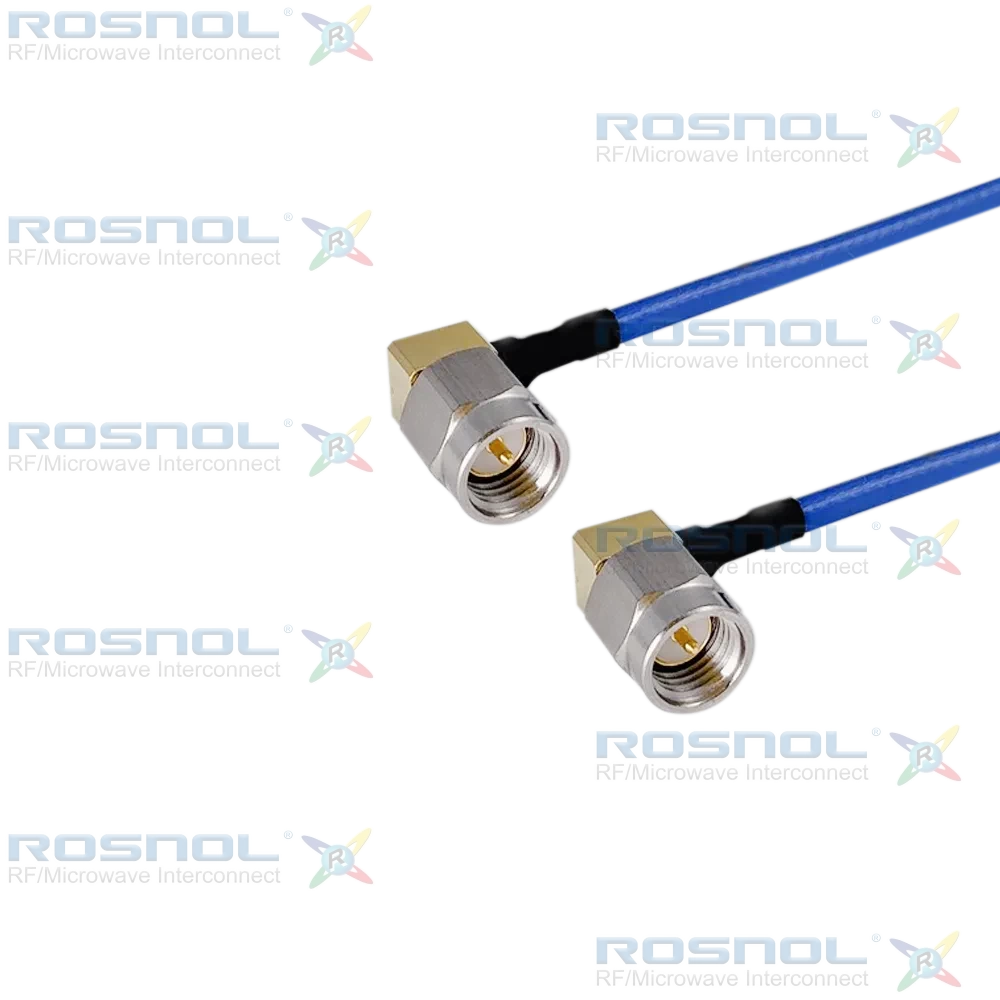

SMA right-angle male to SMA right-angle male cable assembly with RFX085FEP, DC-10 GHz, 50 Ω, VSWR ≤ 1.25, 380 mm.

ROSNOL A1E59-RFX085FEP-A1E59-380C/10G is a 50-ohm RF cable assembly developed for high-frequency signal transmission up to 10 GHz. The assembly features SMA Right-Angle Plug (Male) connectors on both ends and utilizes 380 mm of ROSNOL RFX085FEP cable. Designed for applications where connector orientation and installation space are critical, this cable assembly delivers a maximum VSWR of 1.25 and insertion loss of ≤ 0.0078 × L(mm) + 0.1 dB. The dual right-angle SMA connector configuration supports efficient cable routing while maintaining dependable RF performance.

The assembly is manufactured using two SMA Right-Angle Solder Plug connectors terminated to ROSNOL RFX085FEP cable, providing secure electrical contact and stable mechanical construction. Heat-shrink tubing is applied at both cable ends to reinforce the connector transition area and improve strain relief. The 50-ohm impedance architecture supports consistent RF signal transmission and helps minimize mismatch within high-frequency systems.

This RF cable assembly is suitable for RF instrumentation, microwave communication systems, test equipment, electronic subsystems, wireless infrastructure, and laboratory environments operating up to 10 GHz. The SMA Right-Angle Male to SMA Right-Angle Male interface is particularly useful in densely packed equipment where connector clearance is limited. ROSNOL A1E59-RFX085FEP-A1E59-380C/10G provides a practical and reliable RF interconnect solution for engineers requiring high-frequency performance and optimized cable routing.
