SMA to TNC Male Adapter, DC-11 GHz VSWR 1.2

Order No:AD-A1T15B/133-133
Add Cart

Key Specifications

Type Design:
Standard
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
TNC
Connector 2 Gender:
Plug (Male)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
11
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20

Description

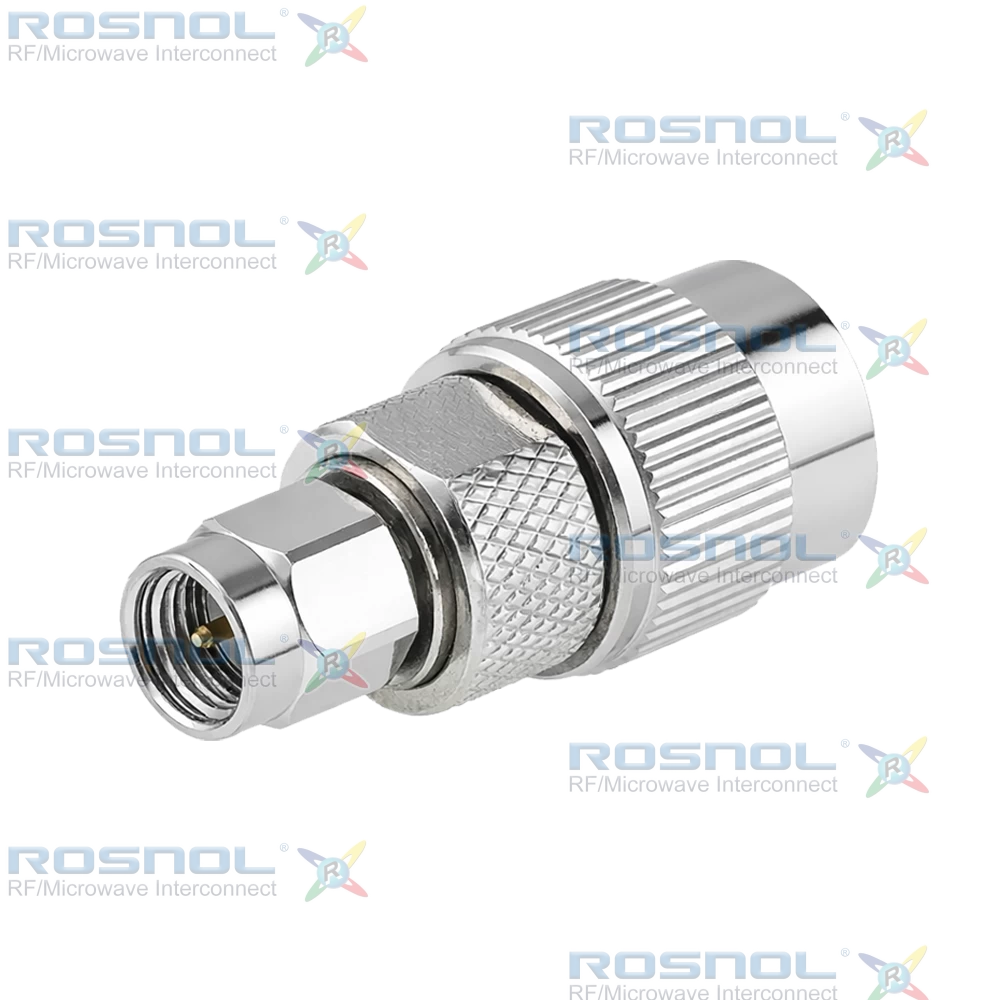

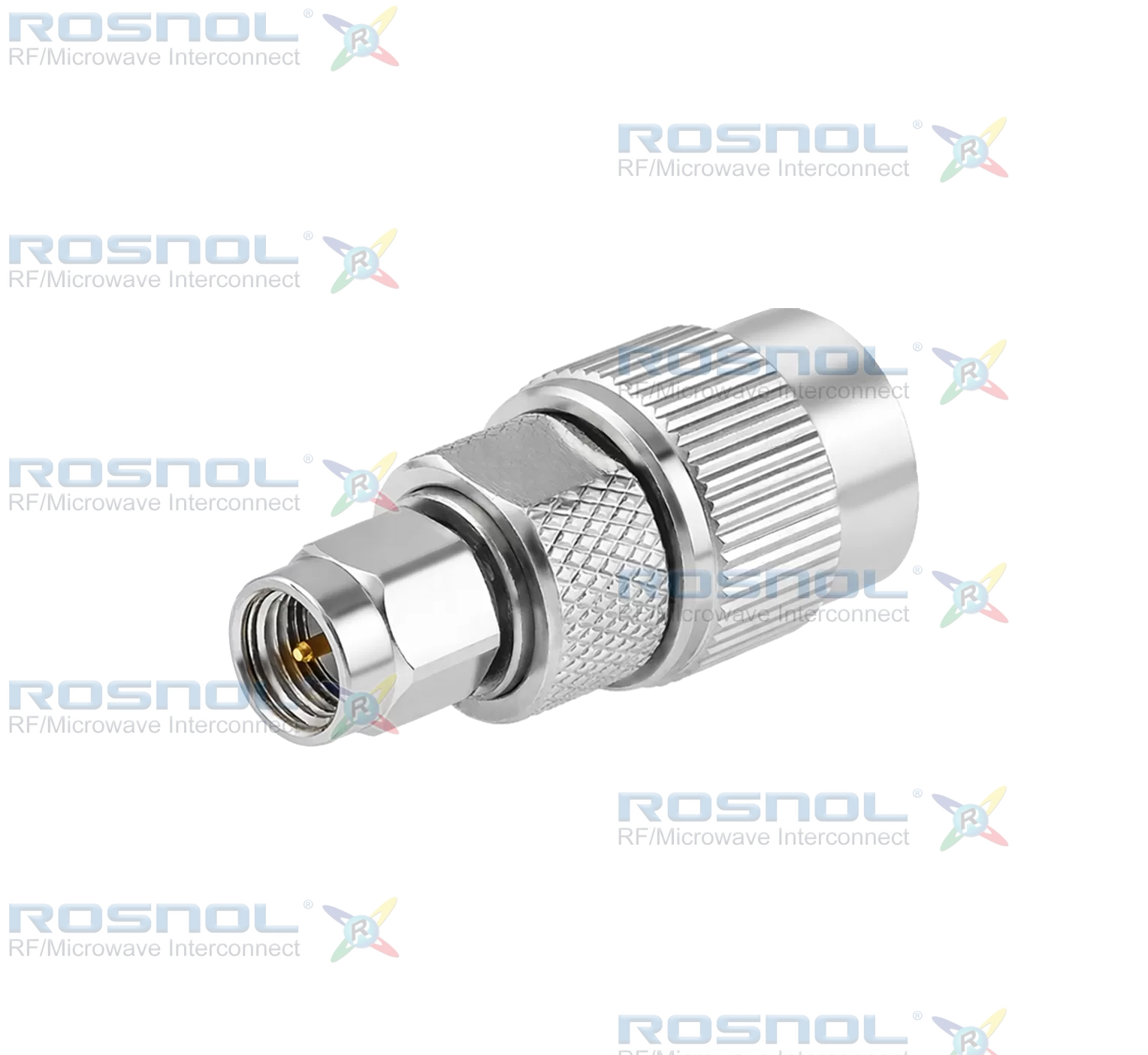

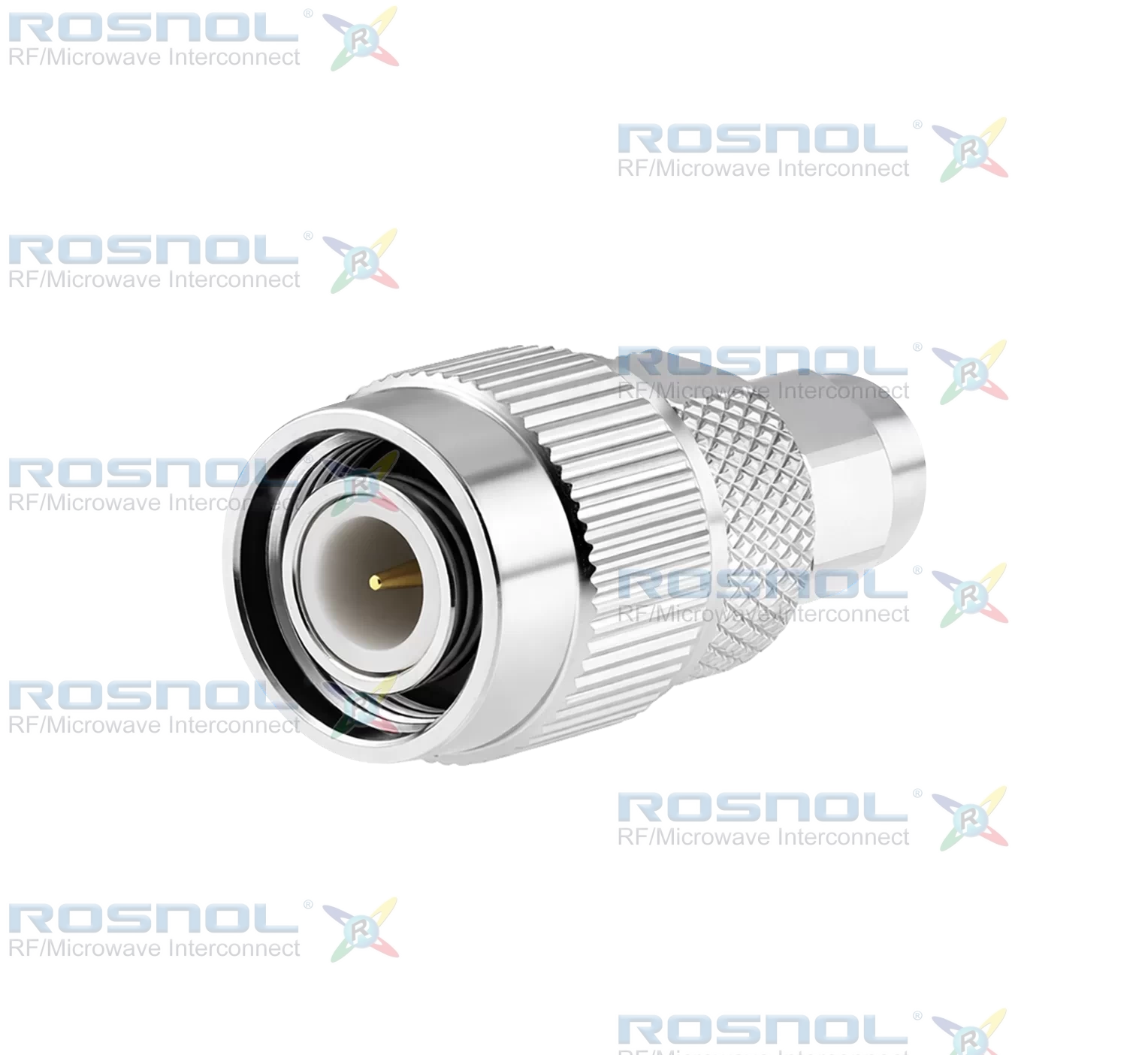

SMA Male to TNC Male Straight Adapter, DC-11 GHz, VSWR ≤ 1.20, 50 Ω Impedance.

ROSNOL AD-A1T15B/133-133 is a straight RF Adapter designed to connect SMA Jack (Female) and TNC Jack (Female) interfaces. Operating at 50 Ω impedance with a frequency range from DC to 11 GHz, the adapter delivers VSWR ≤ 1.20 and power handling up to 80 W at 2 GHz, providing reliable impedance matching and signal transmission for RF and microwave systems.

The adapter features beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to maintain low contact resistance and stable electrical performance. Both SMA and TNC bodies and coupling nuts are manufactured from nickel-plated brass, while PTFE insulators provide dependable dielectric characteristics. Insertion loss is specified at ≤ 0.05 × √F (GHz) dB, with RF leakage better than -50 dBi at 2 GHz, supporting signal integrity in high-frequency applications.

Its SMA Female to TNC Female configuration offers a practical interface conversion solution for RF interconnection, test & measurement systems, communication equipment, and microwave assemblies. The robust screw-lock coupling design and durable plated construction help ensure reliable mechanical performance and long-term operational stability.
