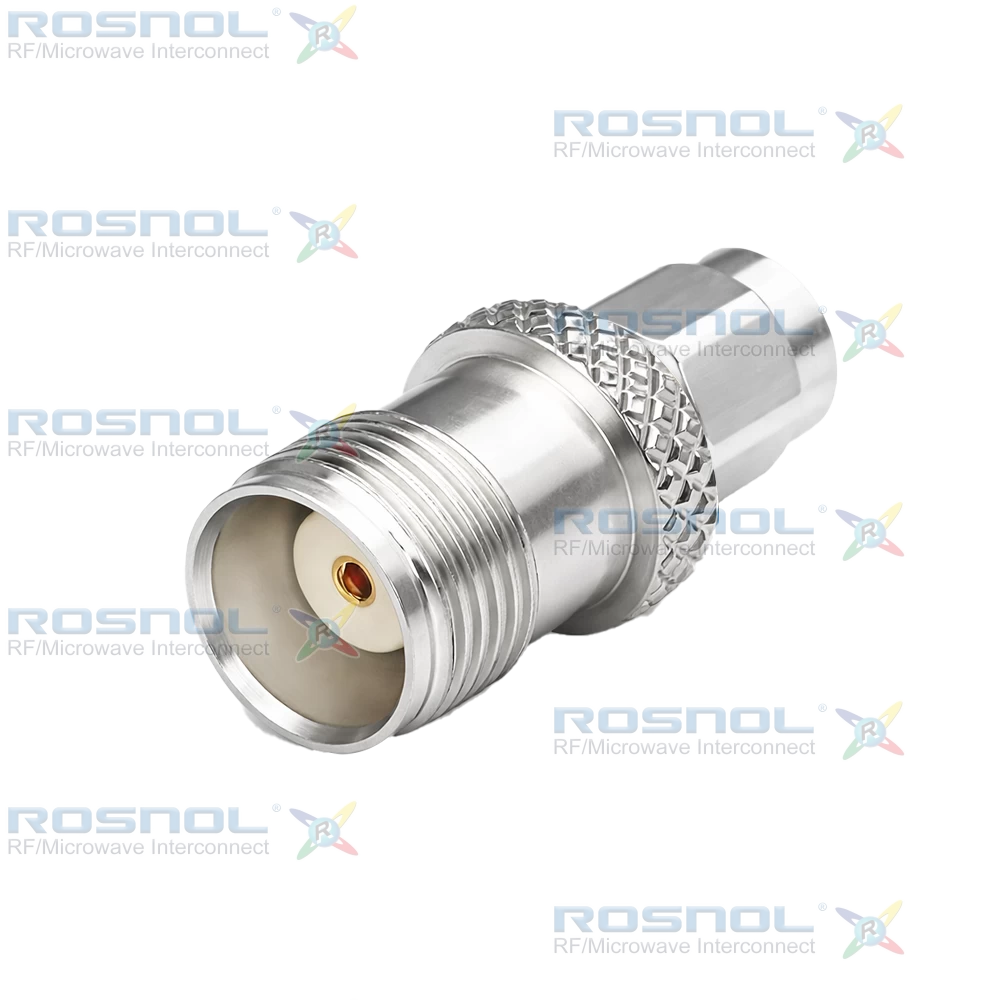

SMA Male to Precision TNC Female Adapter, 18 GHz

Order No:AD-A1PCT25B/933-93
Add Cart

Key Specifications

Type Design:
Precision
Connection Type:
Between Series
Connector 1 Series:
SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision TNC
Connector 2 Gender:
Jack (Female)
Impedance (Ohm):
50
Body Style:
Straight
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
18
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20

Description

SMA Male to Precision TNC Female Straight Adapter, DC-18 GHz, VSWR ≤ 1.20, 50 Ω Impedance.

ROSNOL AD-A1PCT25B/933-93 is a straight RF Adapter engineered for interconnection between SMA Plug (Male) and Precision TNC Jack (Female) connectors. Designed for 50 Ω systems and operating from DC to 18 GHz, it maintains VSWR ≤ 1.20 to support efficient impedance matching and consistent RF performance throughout the operating bandwidth.

The adapter incorporates beryllium copper center contacts with gold plating over non-magnetic nickel-phosphorus underplating to ensure excellent conductivity and signal integrity. Both SMA and Precision TNC bodies, along with the coupling nut, are constructed from nickel-plated brass, while PTFE insulators and silicone rubber gaskets enhance long-term electrical and mechanical reliability. Insertion loss is specified at ≤ 0.05 × √F (GHz) dB, with RF leakage of ≥ 90 dB up to 1 GHz.

Featuring an SMA Male to Precision TNC Female connector configuration and secure threaded coupling, this adapter is well suited for RF interconnection, microwave subsystem integration, calibration setups, production testing, and laboratory measurement environments that demand dependable high-frequency performance.
