Key Specifications
Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision SMA
Connector 1 Gender:
Jack (Female)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Jack (Female)
Body Style:
Right Angle
Impedance (Ohm):
50
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
26.5
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Nickel
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Nickel
VSWR, Max:
1.20
Description

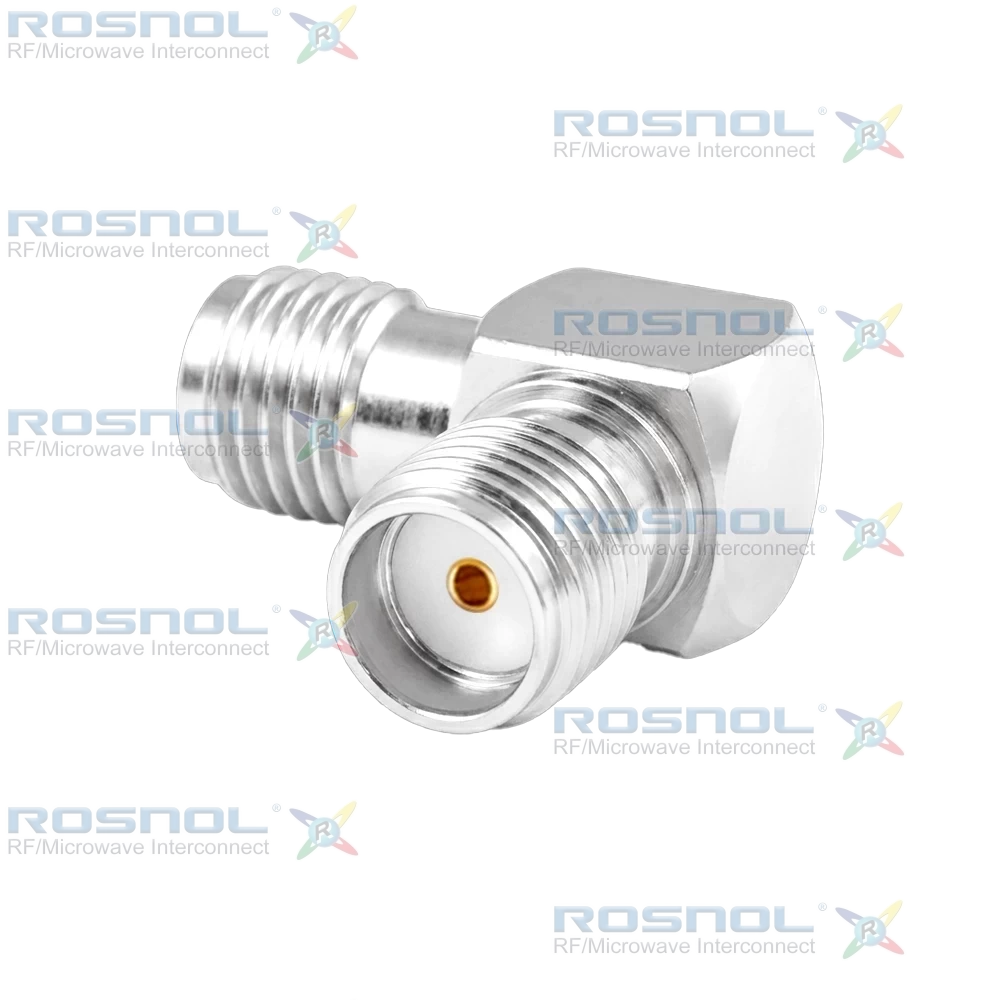

Precision SMA Jack (Female) to Jack (Female) Adapter | Screw-lock | Brass Body
The ROSNOL ADL-PCA2PCA25C/93-93 is a precision-engineered SMA L-adapter featuring dual female connectors, optimized for RF systems operating up to 26.5 GHz. It offers 50 Ω impedance, VSWR ≤1.20 (≥20.83 dB), and insertion loss ≤0.05 × √F (GHz) dB. With insulation resistance ≥5 GΩ and RF leakage ≥100 dB up to 1 GHz, this adapter ensures stable signal transmission. Mechanical specifications include screw-lock coupling, ≥500 mating cycles, axial captivation ≥27 N, and torque range of 0.8–1.1 Nm.Constructed with a nickel-plated brass body, the adapter features beryllium copper center contacts with 3 µinch gold plating over 80 µinch non-magnetic nickel-phosphorus underplating. PTFE insulators provide excellent dielectric performance.
ROSNOL’s precision-engineered solutions offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global regulatory alignment. Customization services for materials, plating, and mechanical design are available to support specialized requirements across a wide range of RF and microwave applications.
