Key Specifications
Type Design:
Precision
Connection Type:
In-Series
Connector 1 Series:
Precision SMA
Connector 1 Gender:
Plug (Male)
Connector 2 Series:
Precision SMA
Connector 2 Gender:
Jack (Female)
Body Style:
Right Angle
Impedance (Ohm):
50
Panel Mount:
None
Connector 1 Connection Method:
Threaded (Screw-lock)
Connector 2 Connection Method:
Threaded (Screw-lock)
Frequency, Max (GHz):
26.5
Connector 1 Body Material:
Brass
Connector 1 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Connector 2 Body Material:
Brass
Connector 2 Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
VSWR, Max:
1.20
Description

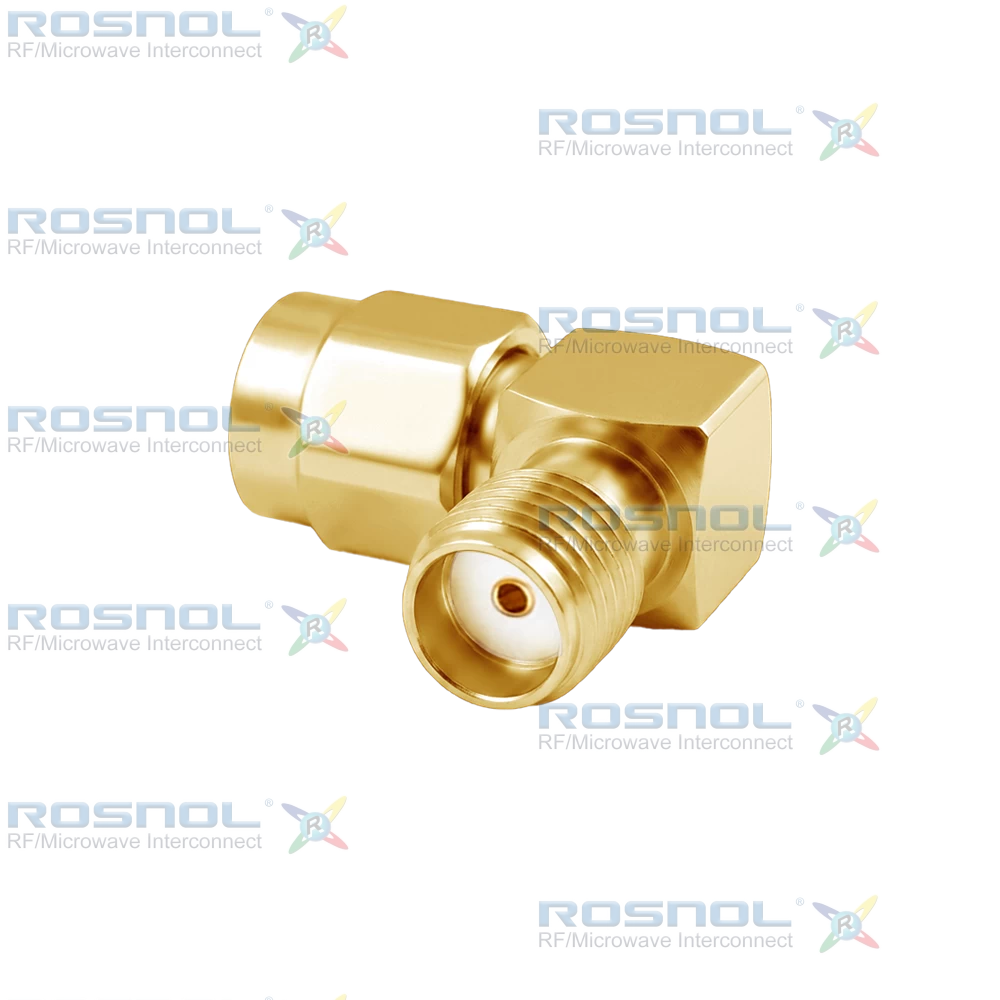

Precision SMA Plug (Male) to Jack (Female) Adapter | Screw-lock | Brass Body
The ROSNOL ADL-PCA1PCA25C/911-91 is a high-performance SMA L-adapter supporting DC to 26.5 GHz operation. It delivers 50 Ω impedance, VSWR ≤1.20 (≥20.83 dB), and insertion loss ≤0.05 × √F (GHz) dB. With insulation resistance ≥5 GΩ and RF leakage ≥100 dB up to 1 GHz, it ensures stable RF performance. Mechanical features include screw-lock coupling, ≥500 mating cycles, axial captivation ≥27 N, and torque range of 0.8–1.1 Nm.This adapter is built with a gold-plated brass body and coupling nut, beryllium copper center contacts plated with 3 µinch gold over 80 µinch non-magnetic nickel-phosphorus underplating, PTFE insulators, and silicone rubber gaskets for optimal sealing and dielectric properties.
ROSNOL’s precision-engineered solutions offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All ROSNOL components are manufactured in ISO 9001-certified facilities and fully comply with RoHS and REACH regulations, ensuring environmental safety and global regulatory alignment. Customization services for materials, plating, and mechanical design are available to support specialized requirements across a wide range of RF and microwave applications.
