Flexible RG178 Triaxial Cable, Ø2.85 mm (.112 inch), FEP Jacket, 50Ω, DC-6GHz

50 Ohm Triaxial Coaxial Cable | FEP Jacket | PTFE Dielectric

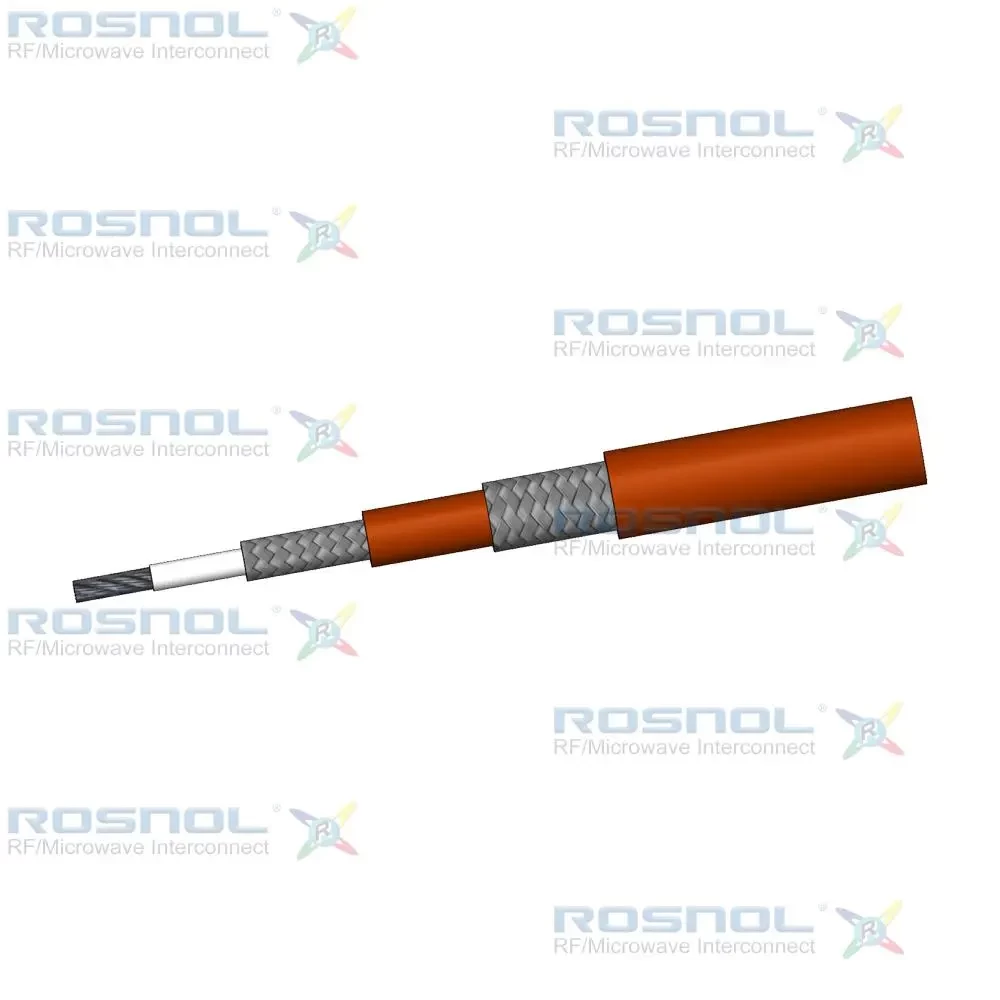

The ROSNOL RG-178TR is a 50 Ohm triaxial cable designed for RF and microwave applications up to 6 GHz. It features a stranded silver-plated copper weld (SPCW) inner conductor (7 × Ø0.102 mm [Ø0.0040 in]), PTFE dielectric (Ø0.86 mm [Ø0.0339 in]), and dual silver-plated copper outer conductors (Ø1.3 mm [Ø0.0512 in] and Ø2.25 mm [Ø0.0886 in]). The cable is jacketed with FEP (Ø1.83 mm [Ø0.0720 in] and Ø2.85 mm [Ø0.1122 in]), offering excellent thermal stability from −65°C to +150°C. Minimum static bend radius is 10 mm [0.394 in].

With a capacitance of 98 pF/m and signal velocity of 70%, the RG-178TR supports up to 1.5 kVrms withstand voltage and delivers shielding effectiveness over 60 dB. Typical attenuation ranges from 0.58 dB/m at 0.1 GHz to 4.13 dB/m at 6 GHz. Maximum CW power handling is 225 W at 0.1 GHz and 23 W at 6 GHz.

ROSNOL’s cable solutions are precision-engineered to meet the rigorous demands of RF and microwave transmission systems. Manufactured under ISO 9001-certified processes, ROSNOL cables deliver consistent high quality and performance at competitive pricing, making them a reliable alternative to products from leading European and American brands. All ROSNOL cables are fully compliant with global environmental and safety regulations, including RoHS and REACH. Customization services for materials, shielding, and mechanical design are available to support specialized application requirements.
