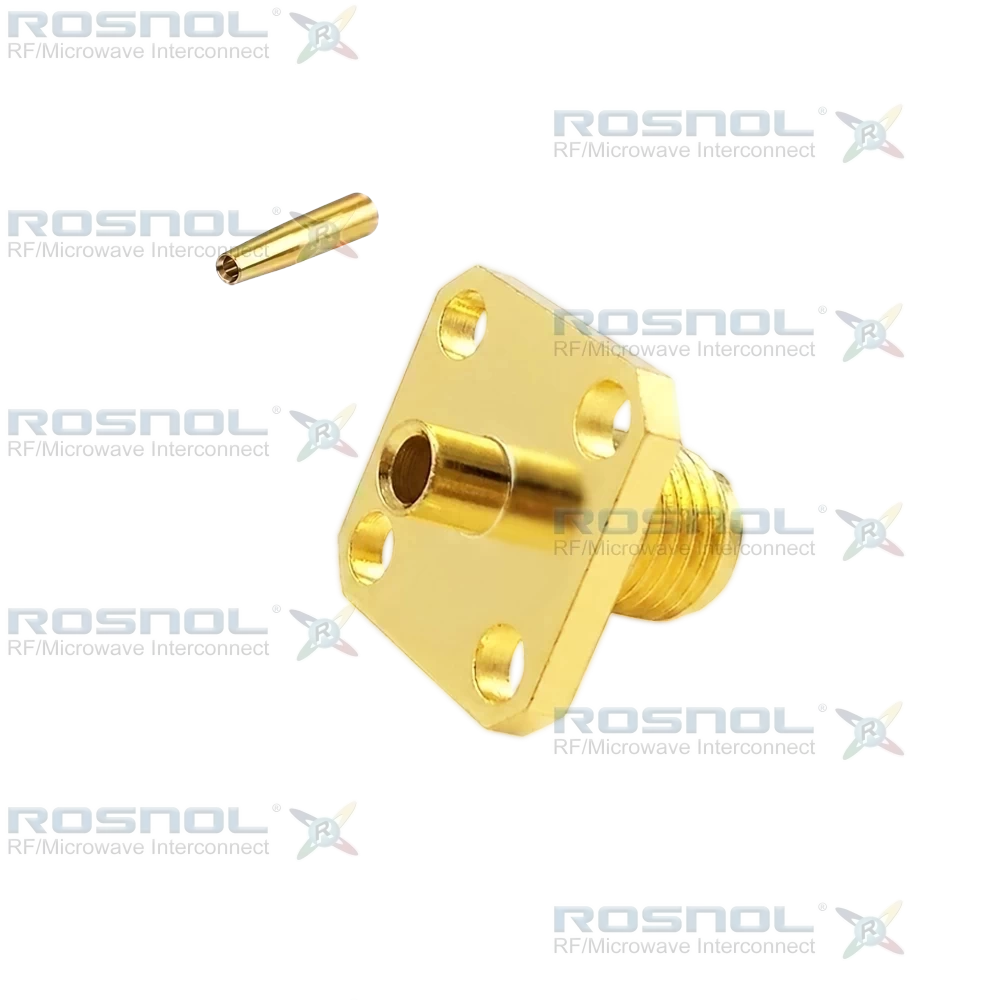

SMA Jack (Female) 4 Hole Flange Mount Cable Connector for Belden 1671J, DC - 18 GHz, VSWR ≤ 1.25, 50 Ω, with Soldered Cable Entry.
The ROSNOL SMA2EBF50-0085A/91 is a straight SMA panel-mount cable jack optimized for 50Ω RF systems from DC to 18 GHz. It features a screw-lock coupling mechanism and a soldered cable entry, with a centre contact supporting both soldered and crimped configurations. VSWR is ≤ 1.25 (≥ 19 dB), and insertion loss is ≤ 0.04 × √F (GHz) dB. Supported 0.086 Semi-Rigid and Semi-Flex Coaxial cables include RSR086, RSF086, RSF-086 FEP, RSF-086 PVC, RG405, EF405, Belden-1671A, and Belden-1671J.
The connector body is brass with gold plating over nickel, and the centre contact is beryllium copper with gold plating. The insulator is PTFE. The 4-hole panel flange measures 12.7 mm × 12.7 mm, with mounting hole spacing of 8.64 mm in both horizontal and vertical directions, ensuring compatibility with standard square panel layouts.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
