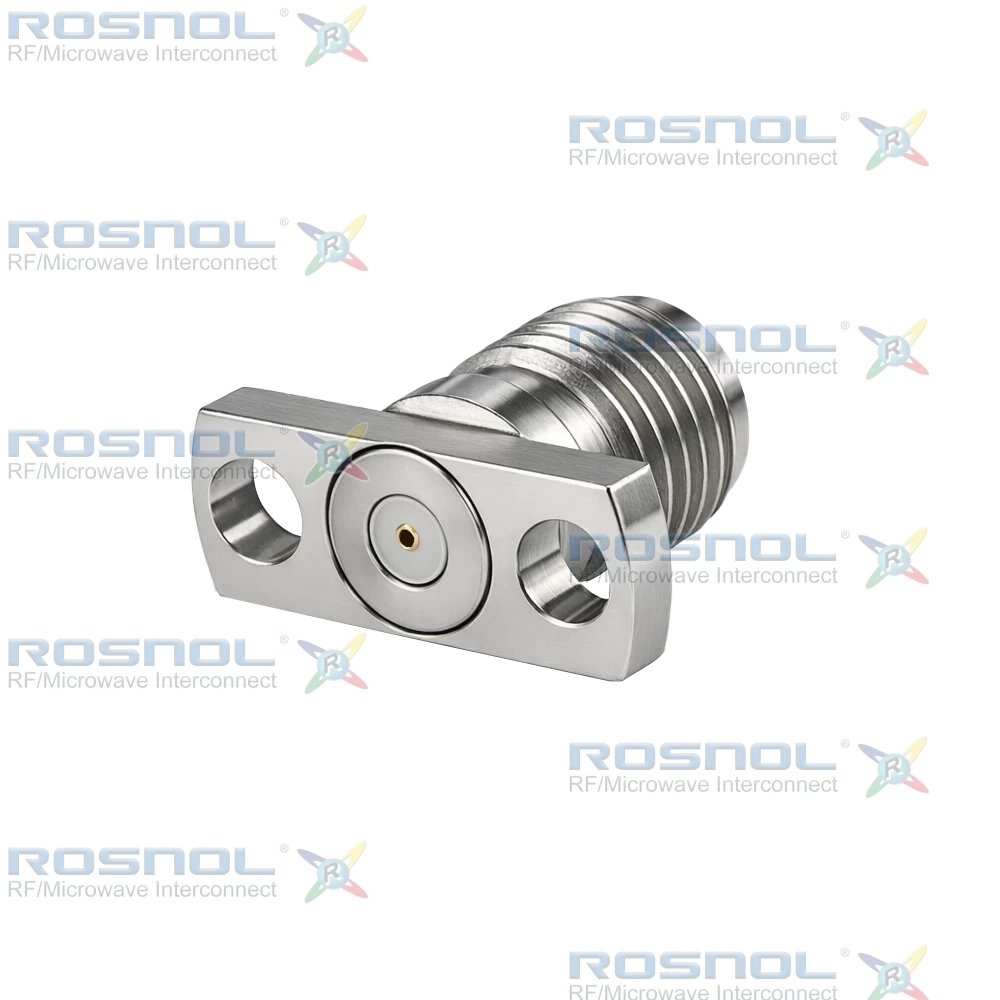

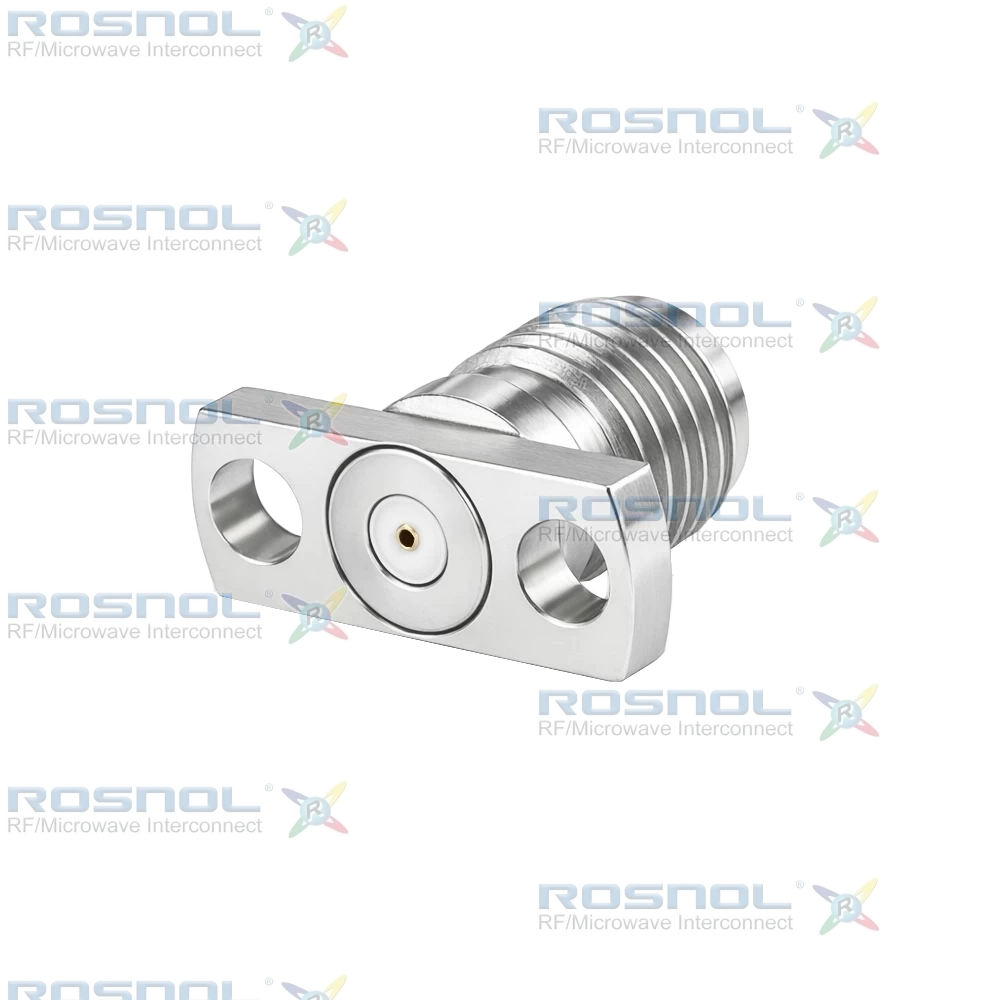

Precision SMA Female Field Replaceable, 27 GHz

Order No:PCA2BT50-0009C/9X
Add Cart

Key Specifications

Type Design:
Precision
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
27
VSWR, Max:
1.15
Connector Series:
Precision SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Accepts Pin ∅0.23 [.009]

Description

Precision SMA 2 Hole Female Field Replaceablet Connector, 9.02mm Hole Spacing, .009" Accept Pin, 27 GHz VSWR ≤ 1.15

ROSNOL PCA2BT50-0009C/9X is a Precision SMA Jack (Female) Connector designed for field-replaceable RF interconnections in broadband microwave systems. This model features a straight connector configuration with 9.02 mm (.355 inch) hole spacing and 0.23 mm (.009") Accept Pin, supporting 50 Ω impedance and an operating frequency range from DC to 27 GHz. The compact design enables reliable integration into RF modules, test fixtures, and microwave assemblies where stable electrical performance and mechanical precision are required.

Electrical performance includes VSWR ≤ 1.15 and insertion loss ≤ 0.04 × √F (GHz) dB, helping maintain excellent signal integrity across the operating bandwidth. The center contact is manufactured from beryllium copper with gold plating and non-magnetic nickel-phosphorus underplating, while the connector body is constructed from passivated stainless steel. A PTFE insulator provides stable dielectric characteristics for demanding RF environments.

The straight SMA Female configuration and compact mounting footprint make this connector suitable for precision RF interconnection applications where space efficiency and repeatable performance are important. Its broadband capability and low-reflection design support use in test & measurement equipment, microwave subsystems, RF interconnection networks, laboratory instrumentation, and communication platforms requiring dependable high-frequency signal transmission.
