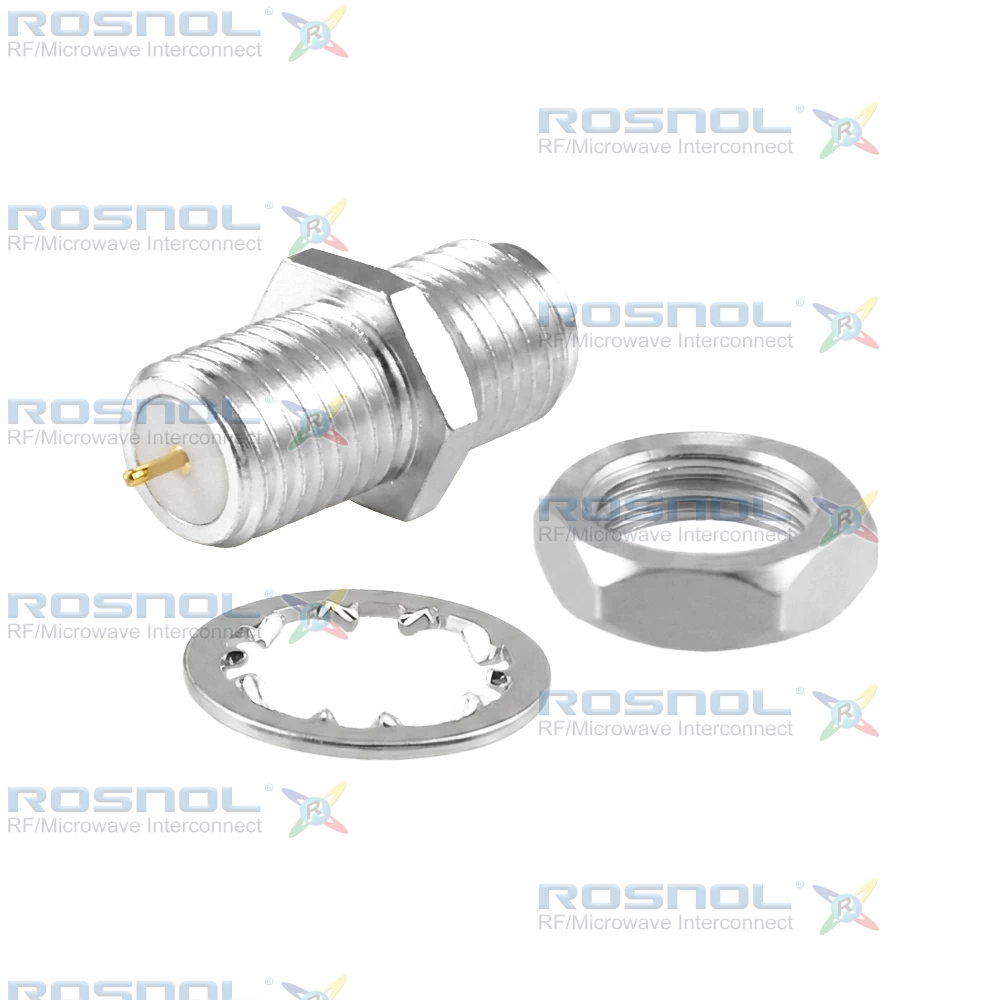

SMA Female Bulkhead Connector, DC-18 GHz

Order No:SMA2FA50-1550A/93
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.25
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
Bulkhead
Body Material:
Brass
Body Plating:
Nickel
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Straight Bulkhead Connector, Solder Attachment, Stub Terminal, DC-18 GHz VSWR ≤ 1.25, 50 Ω Impedance.

ROSNOL SMA2FA50-1550A/93 is a 50 Ohm SMA Jack (Female) straight bulkhead connector engineered for RF and microwave applications operating from DC to 18 GHz. Designed with a solder attachment and stub terminal structure, this connector offers VSWR ≤ 1.25, low insertion loss, insulation resistance of at least 5 GΩ, and RF leakage of 100 dB up to 1 GHz. Its power handling capability of up to 200 W at 2 GHz supports reliable signal transmission in demanding RF systems and electronic equipment.

The center contact is manufactured from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating, while the body, fastening nut, and washer are constructed from brass with nickel plating. A PTFE insulator enhances electrical stability across the connector interface. The bulkhead connector features a screw-lock coupling mechanism, soldered center contact, and supports more than 500 mating cycles. With an operating temperature range of -65°C to +165°C, the design provides durability for long-term installation in diverse operating conditions.

This SMA female bulkhead connector is well suited for RF instrumentation, communication infrastructure, microwave equipment, antenna interfaces, signal routing modules, and electronic integration projects. The combination of broadband frequency coverage, secure mechanical retention, and robust material construction helps ensure dependable RF performance in professional applications.
