Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Style:
PCB Connector
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
None
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

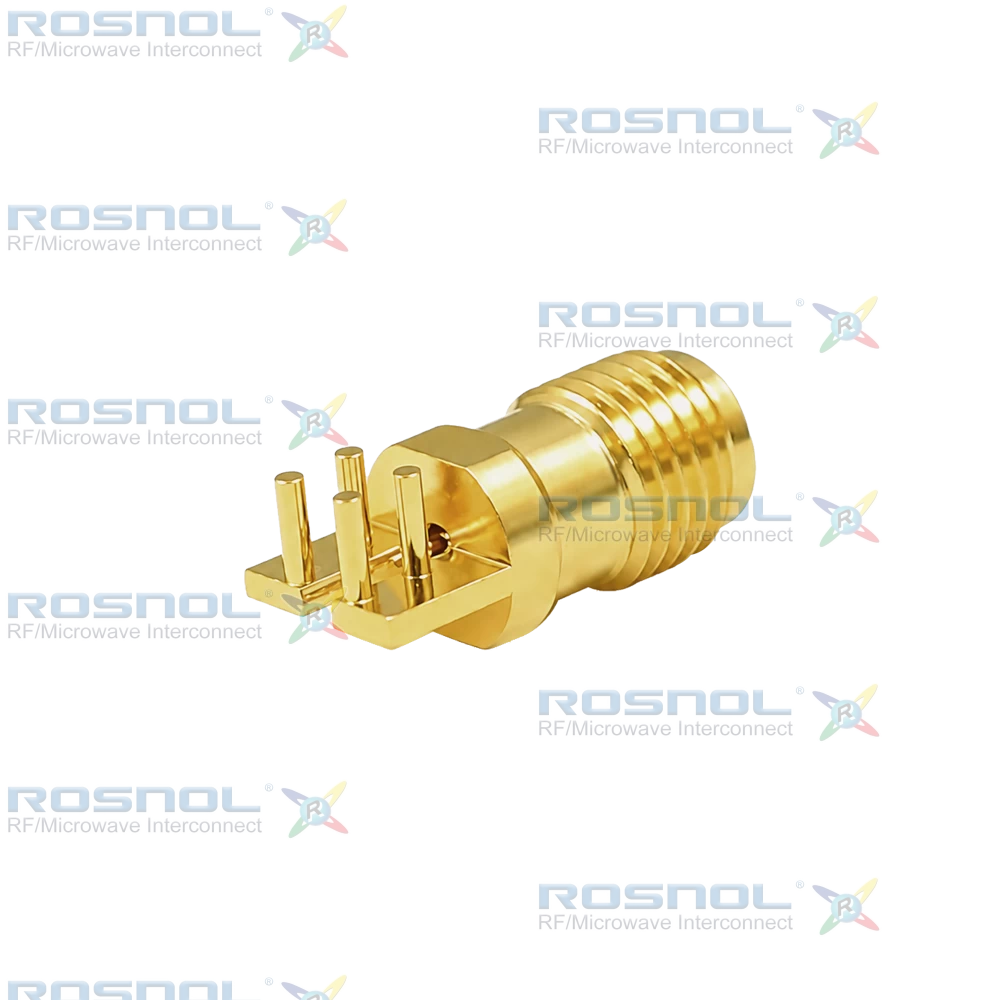

SMA PCB Connector | End Launch | Brass Body
The SMA2H1A50-1410A/91 is a high-performance SMA Jack (female) PCB connector designed for end launch mounting. Featuring a screw-lock coupling mechanism, this connector ensures secure mating with a minimum of 500 cycles. It supports frequencies from DC to 18 GHz with an impedance of 50 Ω, and offers excellent electrical performance including low VSWR and insertion loss. The connector utilizes a coaxial pin with air Teflon insulation and is built for straight orientation.Constructed with a brass body and beryllium copper center contact, both plated with 3 µinch gold over 80 µinch non-magnetic nickel-phosphorus, the SMA2H1A50-1410A/91 guarantees durability and optimal conductivity. The end launch terminal style is ideal for high-frequency PCB applications, and the connector meets MIL-STD environmental standards for thermal shock, corrosion, vibration, and moisture resistance.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
