Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
4.0
VSWR, Max:
1.09
Connector Style:
Panel Connector
Connector Series:
TNC
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Nickel
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

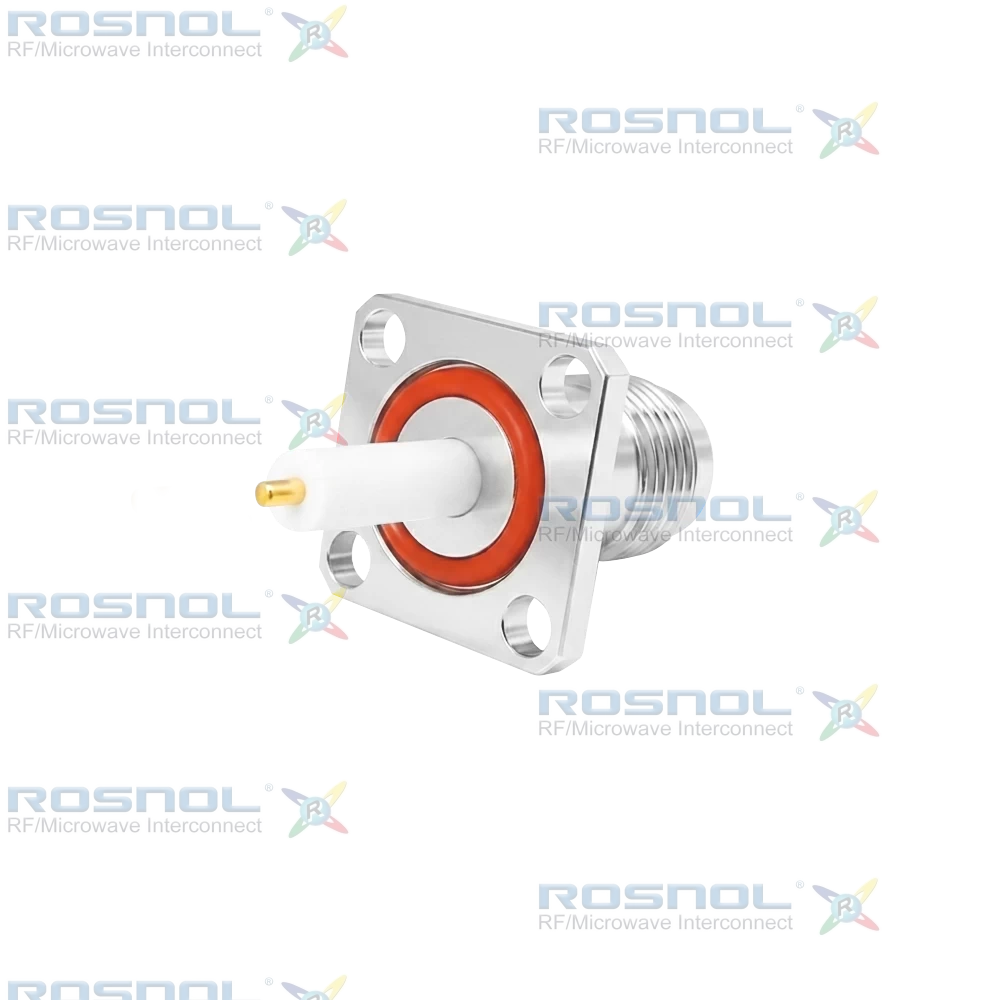

TNC Jack Panel Connector | Brass Body | Stub Terminal | Mechanical Captivation
The ROSNOL TNC2GFA50-2880A/H3 is a high-performance TNC Jack (female) panel connector designed for RF applications up to 4 GHz. Featuring a 4-hole flange mount and stub terminal configuration with 12.7mm (.500 inch) hole spacing, it ensures secure mechanical captivation. Engineered with a 50 Ω impedance and a Screw-lock coupling mechanism, it delivers excellent signal integrity with a VSWR of ≤ 1.09 (≥ 27 dB).The ROSNOL TNC2GFA50-2880A/H3 is constructed using premium materials to ensure durability and optimal electrical performance. The centre contact is made of Phosphor Bronze, Gold plating 3 µinch (Nickel-phosphorus underplating 80 µinch), while the body is crafted from Brass, Nickel. An insulator of PTFE and a gasket of Silicone Rubber complete the assembly, providing robust insulation and environmental sealing.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
