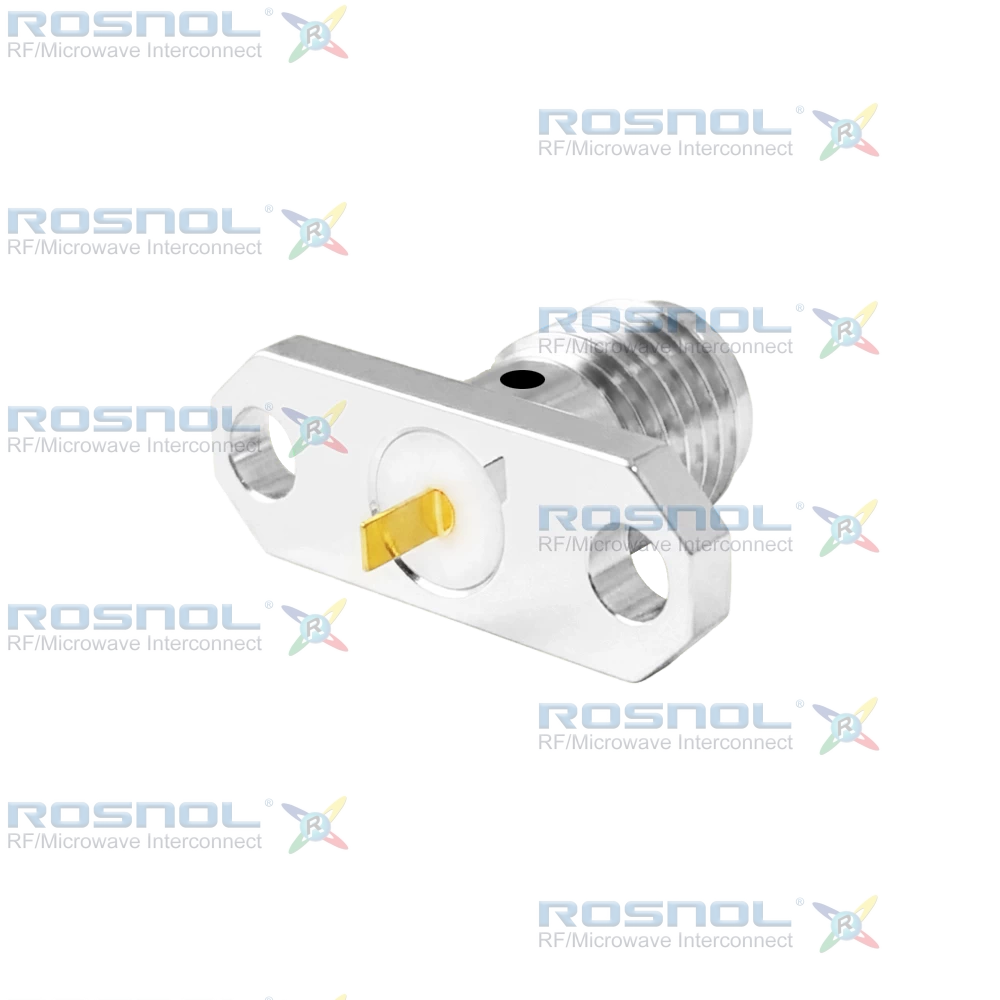

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTD50-1200A-EC/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Epoxy Captivation
Bankend Type:
Flat End

Description

SMA Female Connector, 2 Hole Flange Mount, Flat Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz, VSWR ≤1.30.

ROSNOL SMA2GTD50-1200A-EC/9X is a high-performance SMA Jack (Female) RF connector designed for solder attachment and 2-hole flange mount installations. Featuring a flat terminal design and 12.22 mm (0.481 inch) hole spacing, this 50 Ohm connector supports reliable RF and microwave signal transmission from DC to 18 GHz. Key electrical specifications include VSWR ≤ 1.30, insertion loss ≤ 0.05 × √F (GHz) dB, insulation resistance ≥ 5 GΩ, and power handling up to 200 W at 2 GHz. These characteristics make the connector suitable for applications where stable impedance control and low signal loss are critical.

The connector utilizes a beryllium copper center contact with gold plating and non-magnetic nickel-phosphorus underplating to promote excellent conductivity and contact reliability. The body is manufactured from stainless steel with a passivated finish, while a PTFE insulator provides dependable dielectric performance. Mechanical features include a screw-lock coupling mechanism, soldered center contact, flat terminal construction, and epoxy captivation design. The connector supports a minimum of 500 mating cycles and operates within a temperature range of -65°C to +165°C, providing reliable operation in demanding environments. The flange mount design incorporates 12.22 mm (0.481 inch) hole spacing for secure panel integration.

This SMA Jack (Female) RF connector is suitable for RF communication systems, microwave equipment, antenna interfaces, test and measurement instruments, wireless infrastructure, and high-frequency electronic assemblies. Its wide frequency coverage, durable mechanical structure, and dependable electrical performance make it a practical solution for professional RF interconnect applications.
