SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTC50-1700C/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Semicircular End

Description

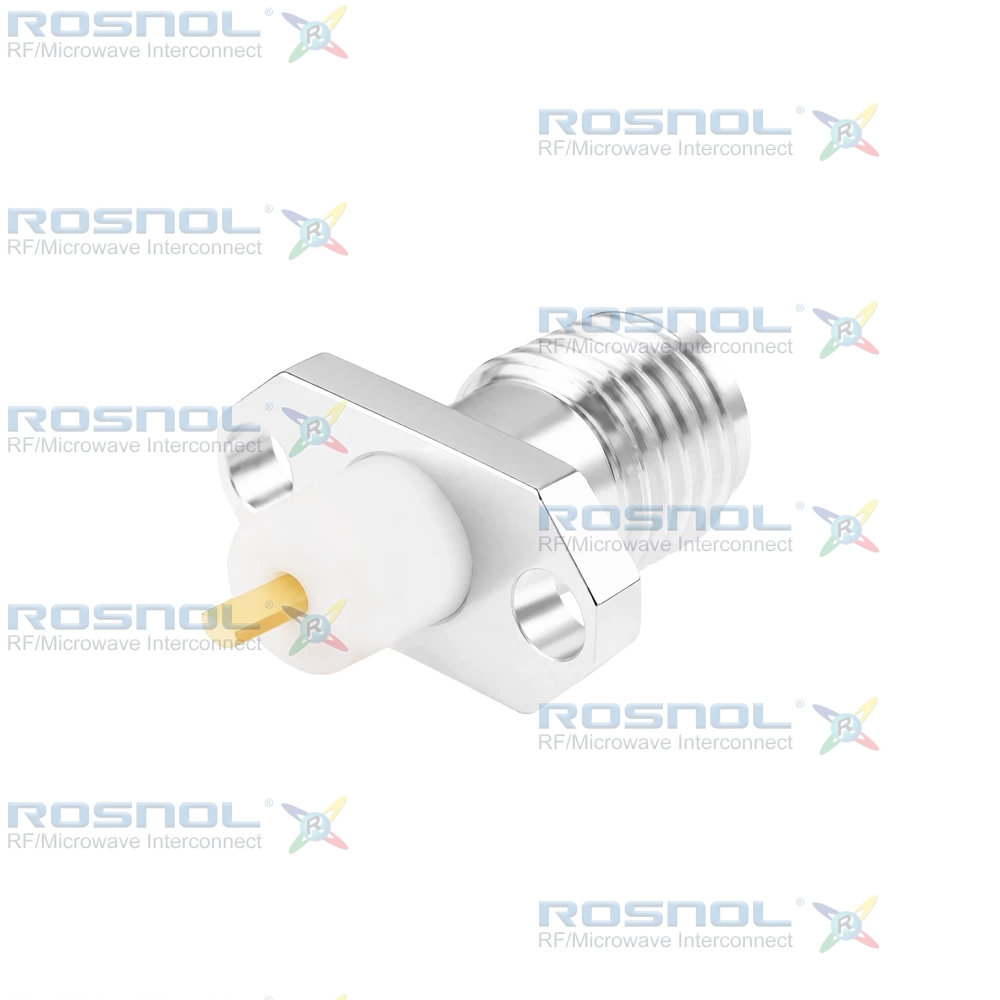

SMA Female Connector, 2 Hole Flange Mount, Semicircular Terminal, 9 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTC50-1700C/9X is a precision SMA Straight Panel Receptacle Jack (Female) designed for RF and microwave applications requiring dependable panel-mounted connectivity. This 50 Ohm connector features a semicircular-end receptacle design and operates from DC to 18 GHz. Electrical performance includes a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, providing stable signal transmission for demanding RF systems. The connector incorporates a compact 17 mm (0.669 inch) overall length, making it suitable for equipment where installation space and RF performance are both important considerations.

The connector utilizes a beryllium copper center contact with gold plating over nickel underplating to ensure reliable conductivity and long-term performance. The body is manufactured from stainless steel with a passivated finish that enhances corrosion resistance, while the PTFE insulator provides stable dielectric properties. Mechanical features include a screw-lock coupling mechanism and a lightweight construction of approximately 0.0024 kg. The connector is rated for operation from -65°C to +165°C, allowing use in a wide range of environmental conditions.

This SMA Jack (Female) connector is suitable for RF communication systems, microwave assemblies, antenna interfaces, wireless devices, instrumentation platforms, and signal routing applications. Its rugged stainless-steel construction, compact receptacle design, and broad DC-18 GHz frequency coverage make it a reliable RF interconnect solution for professional microwave and RF applications.
