Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Style:
Panel Connector
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Epoxy Captivation
Bankend Type:
Semicircular End
Description

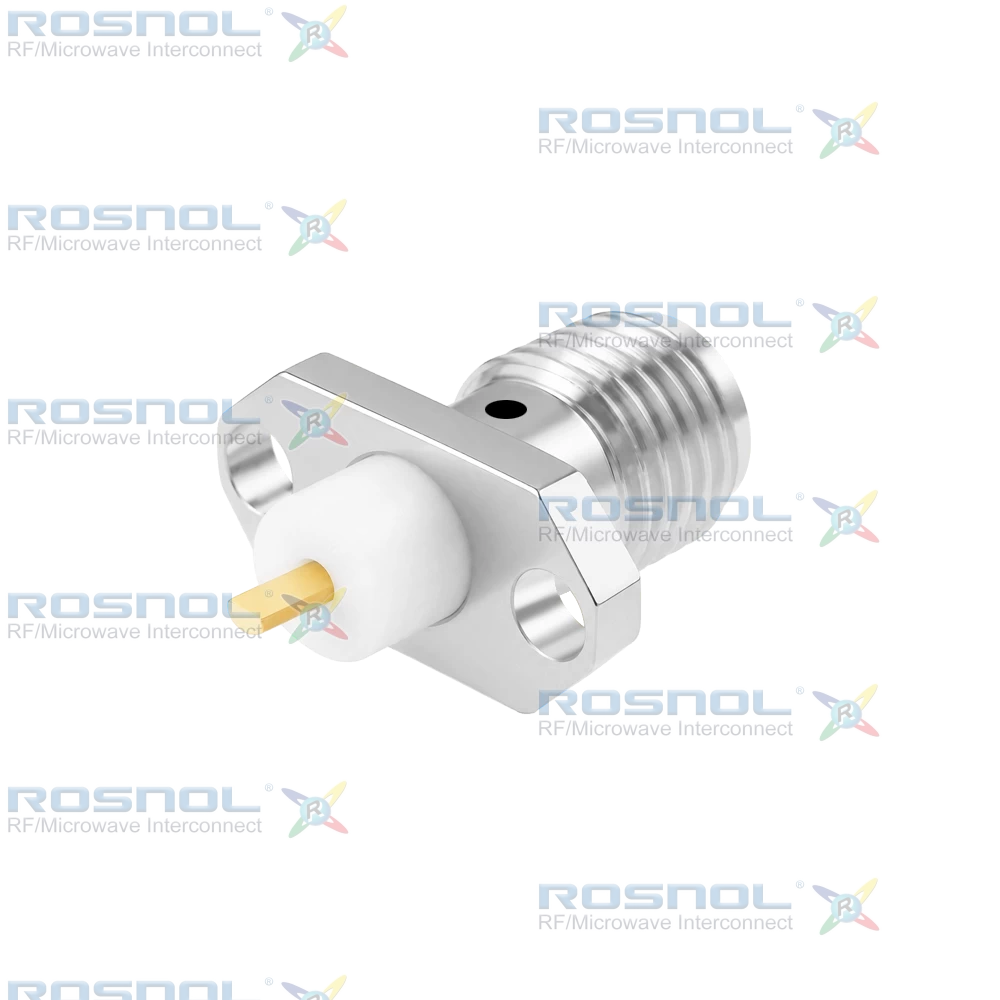

SMA Panel Connector | Stainless Steel Body | Semicircular Terminal | Epoxy Captivation
The ROSNOL SMA2GTC50-1500A/9X is a high-frequency SMA jack engineered for DC to 18 GHz applications. It features a semicircular terminal and a 2-hole flange mount with 9.0 mm (.354 inch) spacing, ensuring secure solder attachment and mechanical stability. The epoxy-captivated center contact provides enhanced resistance to axial and radial stress, with torque ratings up to 1.7 Nm and ≥500 mating cycles.This connector is constructed with a passivated brass body and a beryllium copper center contact, plated with 3 µinch gold over 80 µinch non-magnetic nickel-phosphorus underplating. The PTFE insulator ensures dielectric stability across a wide operating temperature range from −65°C to +165°C. Electrical performance includes ≤1.30 VSWR, ≤0.05√F(GHz) dB insertion loss, and ≥200 W power handling at 2 GHz.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
