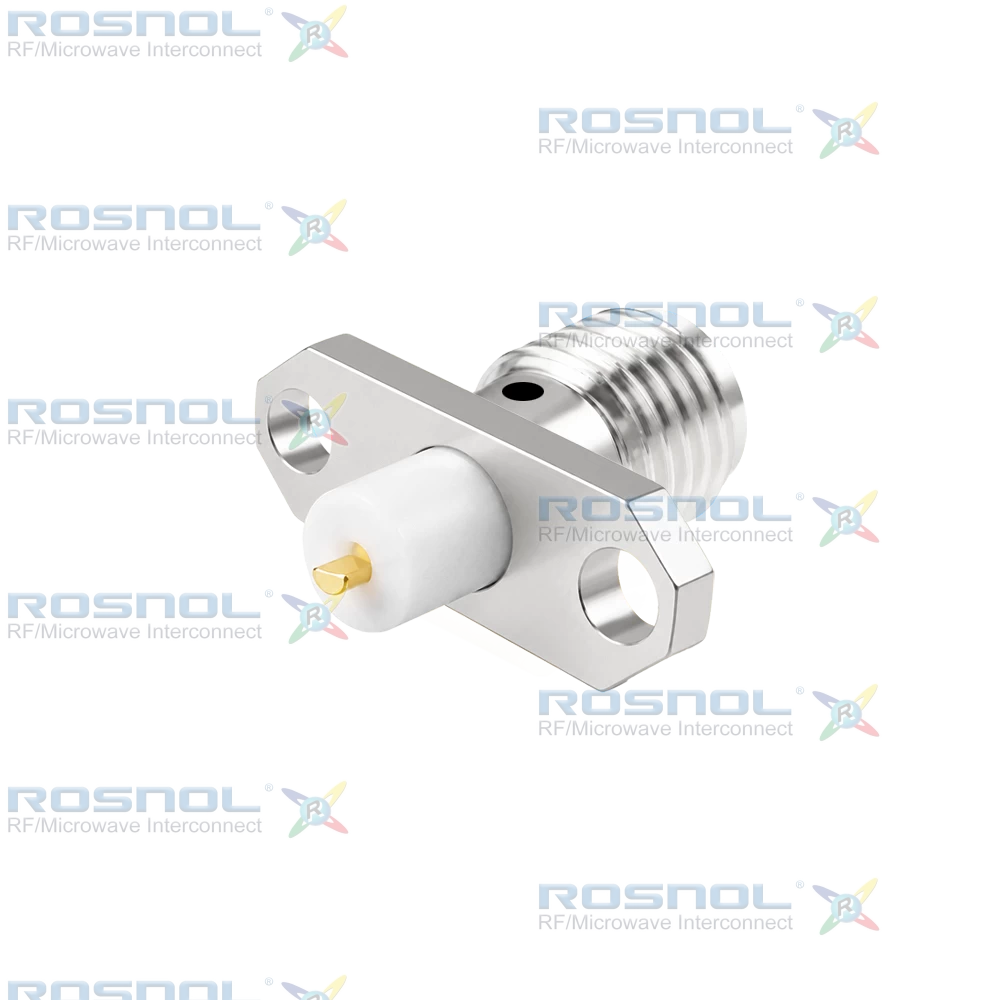

SMA Female Connector, 2 Hole Flange Mount, Semicircular Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz, VSWR ≤1.30.
ROSNOL SMA2GTC50-1450A-EC/9X is an SMA Jack (Female) connector engineered for RF and microwave applications that require reliable solder-mounted panel connectivity. The connector features a 2-hole flange mount design with semicircular terminal configuration and 12.22 mm (0.481 inch) hole spacing. Designed with a 50 Ohm impedance, it supports frequencies from DC to 18 GHz while maintaining a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. These electrical characteristics help ensure efficient signal transmission across a wide operating bandwidth.
The center contact is fabricated from beryllium copper with gold plating and non-magnetic nickel-phosphorus underplating to promote conductivity and long-term reliability. The body is manufactured from brass with a passivated finish, while the insulator is constructed from PTFE for consistent dielectric performance. Mechanical features include a screw-lock coupling mechanism, soldered center contact, epoxy captivation, and a minimum mating durability of 500 cycles. The connector operates within a temperature range of -65°C to +165°C, supporting use in demanding industrial and communication environments.
This SMA Jack (Female) connector is suitable for wireless communication equipment, microwave modules, RF instrumentation, antenna interfaces, laboratory measurement systems, and other high-frequency electronic devices. Its compact flange-mount structure, broad frequency capability, and stable electrical performance provide a dependable RF interconnect solution for professional signal transmission applications.
