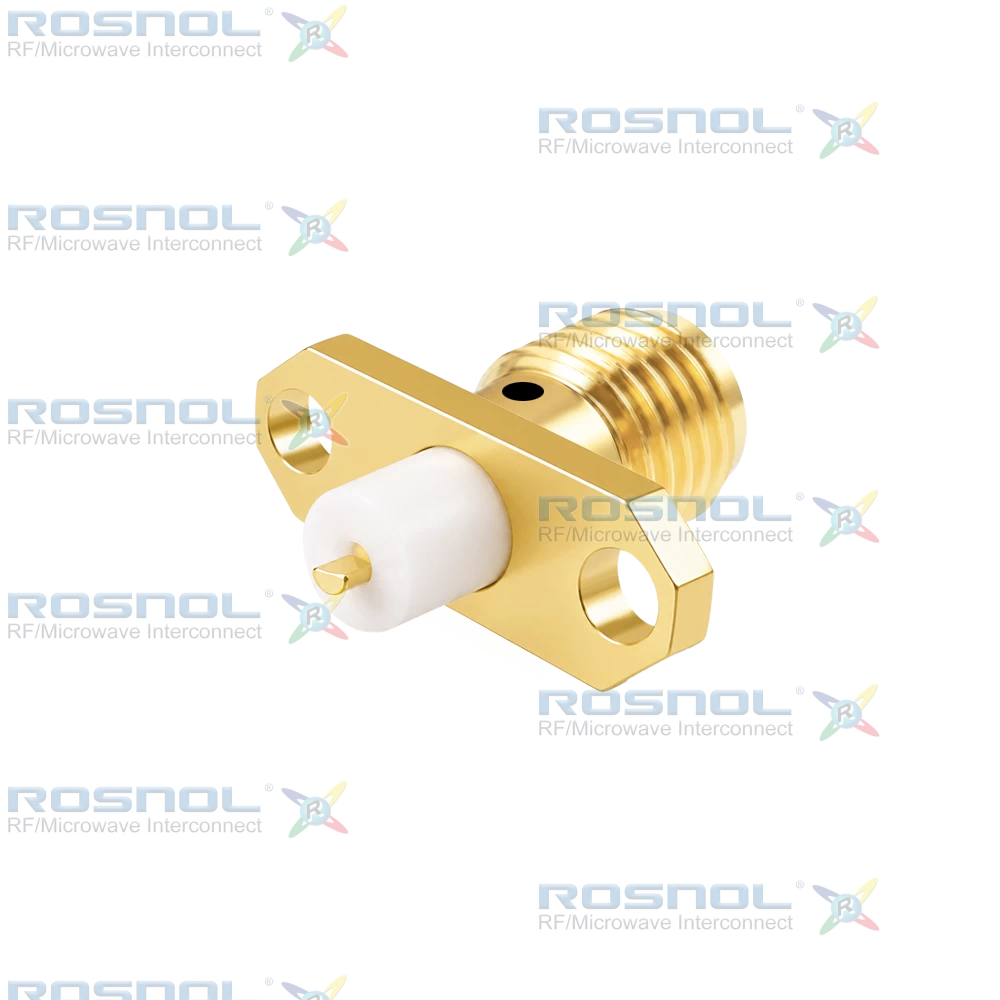

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTC50-1450A-EC/91
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Epoxy Captivation
Bankend Type:
Semicircular End

Description

SMA Female Connector, 2 Hole Flange Mount, Semicircular Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz, VSWR ≤1.30.

ROSNOL SMA2GTC50-1450A-EC/91 is a precision SMA Jack (Female) RF connector designed for solder attachment and 2-hole flange mounting. Featuring a semicircular terminal layout and 12.22 mm (0.481 inch) hole spacing, this 50 Ohm connector supports RF and microwave signal transmission from DC to 18 GHz. Key electrical specifications include VSWR ≤ 1.30, insertion loss ≤ 0.05 × √F (GHz) dB, insulation resistance of at least 5 GΩ, and power handling up to 200 W at 2 GHz. These characteristics make it suitable for systems requiring efficient signal integrity and stable electrical performance.

The connector utilizes a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating. The brass body is also finished with gold plating and matching underplating to enhance conductivity and corrosion resistance. A PTFE insulator provides reliable electrical isolation. Additional mechanical features include a screw-lock coupling mechanism, soldered center contact, semicircular terminal design, epoxy captivation structure, and mating durability of at least 500 cycles. The operating temperature range extends from -65°C to +165°C for dependable performance in challenging environments.

This SMA Jack (Female) RF connector is ideal for RF communication systems, microwave assemblies, test and measurement instruments, antenna integration, wireless infrastructure, and signal routing equipment. By combining wide frequency coverage, durable gold-plated construction, and secure flange mounting, it provides a reliable interconnect solution for professional RF and microwave applications.
