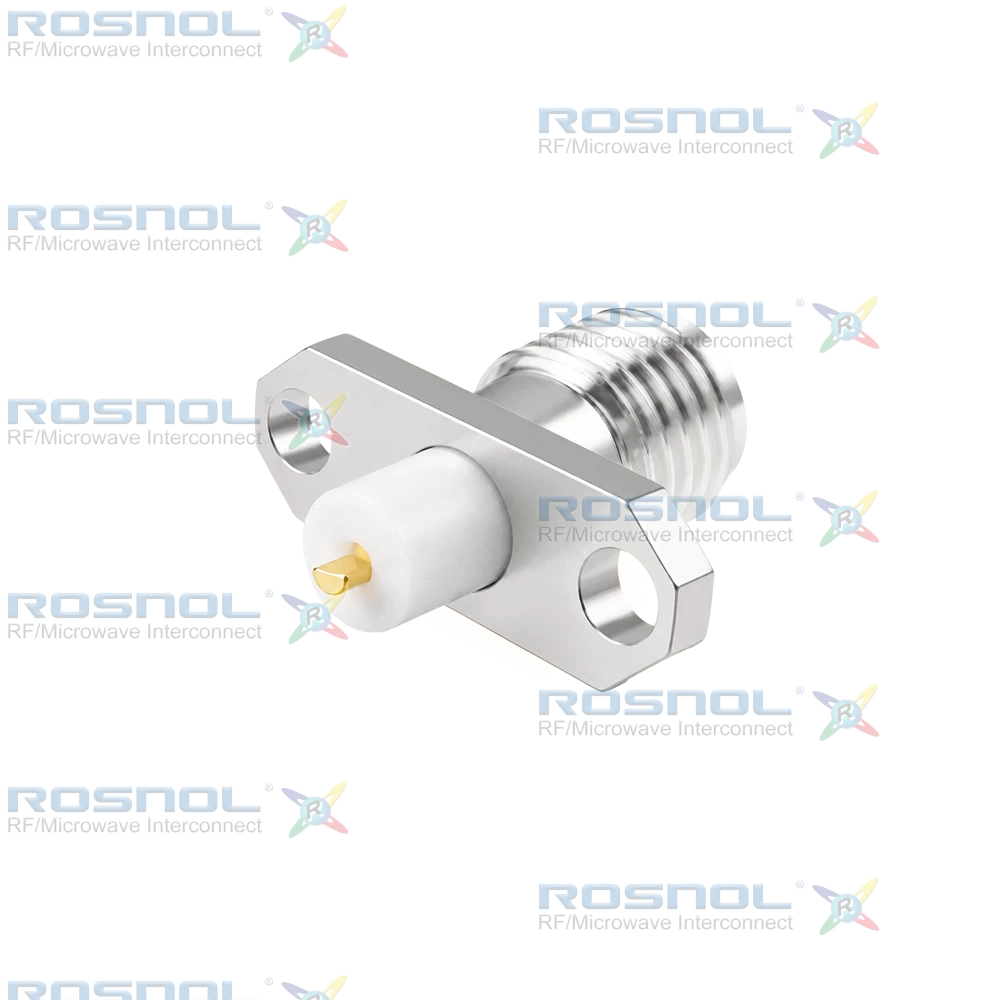

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTC50-1450A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Semicircular End

Description

SMA Female Connector, 2 Hole Flange Mount, Semicircular Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTC50-1450A/9X is a high-performance SMA Jack (Female) connector designed for RF and microwave systems requiring reliable panel-mounted connectivity. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and a semicircular terminal design with 12.22 mm (0.481 inch) hole spacing. Operating from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, helping maintain stable signal transmission across the operating frequency range. Additional electrical characteristics include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, outer contact resistance of ≤ 2 mΩ, and power handling up to 200 W at 2 GHz.

The connector utilizes a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating for dependable conductivity and mating performance. The body is manufactured from stainless steel with a passivated finish to enhance corrosion resistance, while the PTFE insulator provides excellent dielectric stability. Mechanical specifications include a screw-lock coupling mechanism, soldered center contact, semicircular terminal structure, mechanical captivation design, and a minimum mating life of 500 cycles. The operating temperature range extends from -65°C to +165°C.

This SMA Jack (Female) connector is suitable for wireless communication systems, microwave equipment, antenna assemblies, RF instrumentation, test platforms, and high-frequency signal routing applications. Its rugged stainless-steel construction, durable mechanical design, and DC-18 GHz frequency coverage provide a reliable RF connectivity solution for demanding professional environments.
