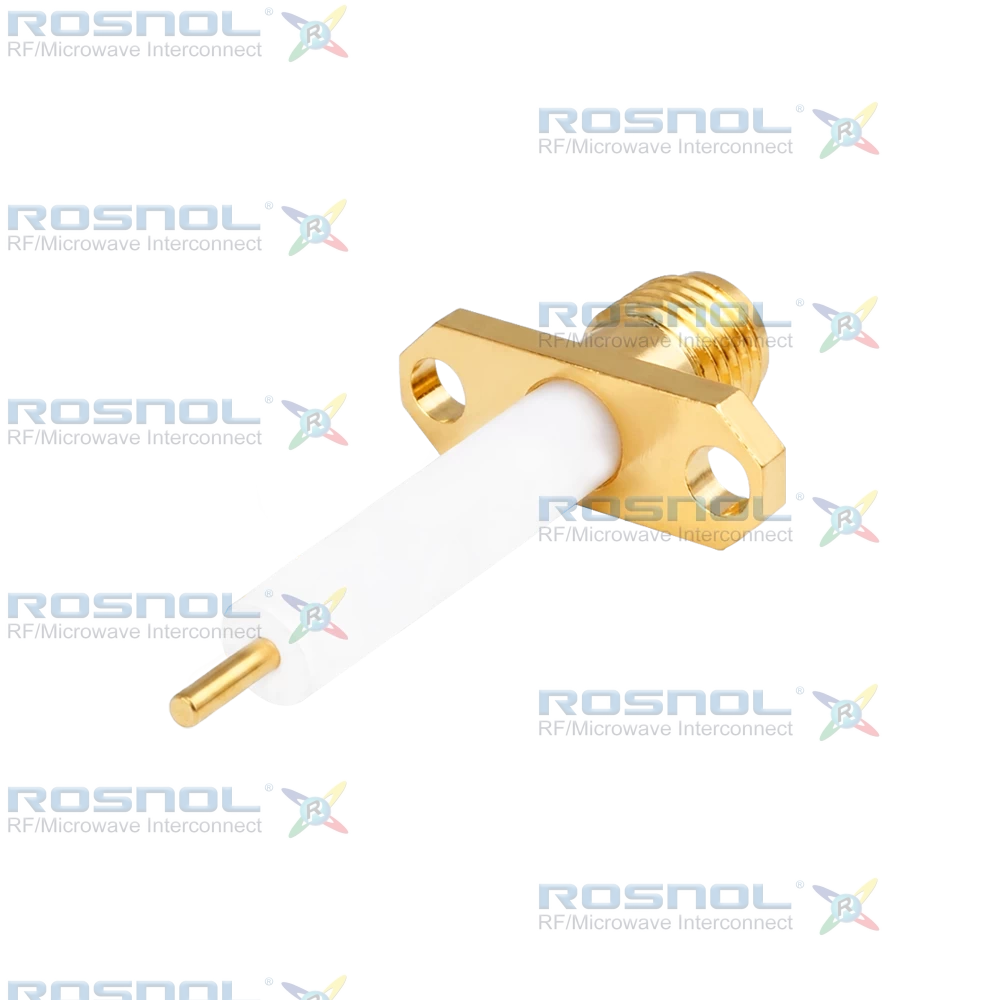

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.
ROSNOL SMA2GTA50-2950A/91 is an SMA Jack (Female) connector engineered for RF and microwave systems requiring dependable panel-mounted signal connections. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) hole spacing. Operating from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. Additional electrical specifications include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.
The center contact is manufactured from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating, while the body is constructed from brass with matching gold plating and underplating. A PTFE insulator ensures stable dielectric properties and reliable electrical isolation. Mechanical characteristics include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and mating durability of at least 500 cycles. The connector is designed to operate from -65°C to +165°C for long-term reliability.
This SMA Jack (Female) connector is suitable for wireless communication equipment, RF communication systems, microwave devices, antenna assemblies, signal routing equipment, and laboratory measurement platforms. Its stable electrical performance, durable plated construction, and secure flange-mount design provide a practical RF connectivity solution for demanding applications.
