SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-2740A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

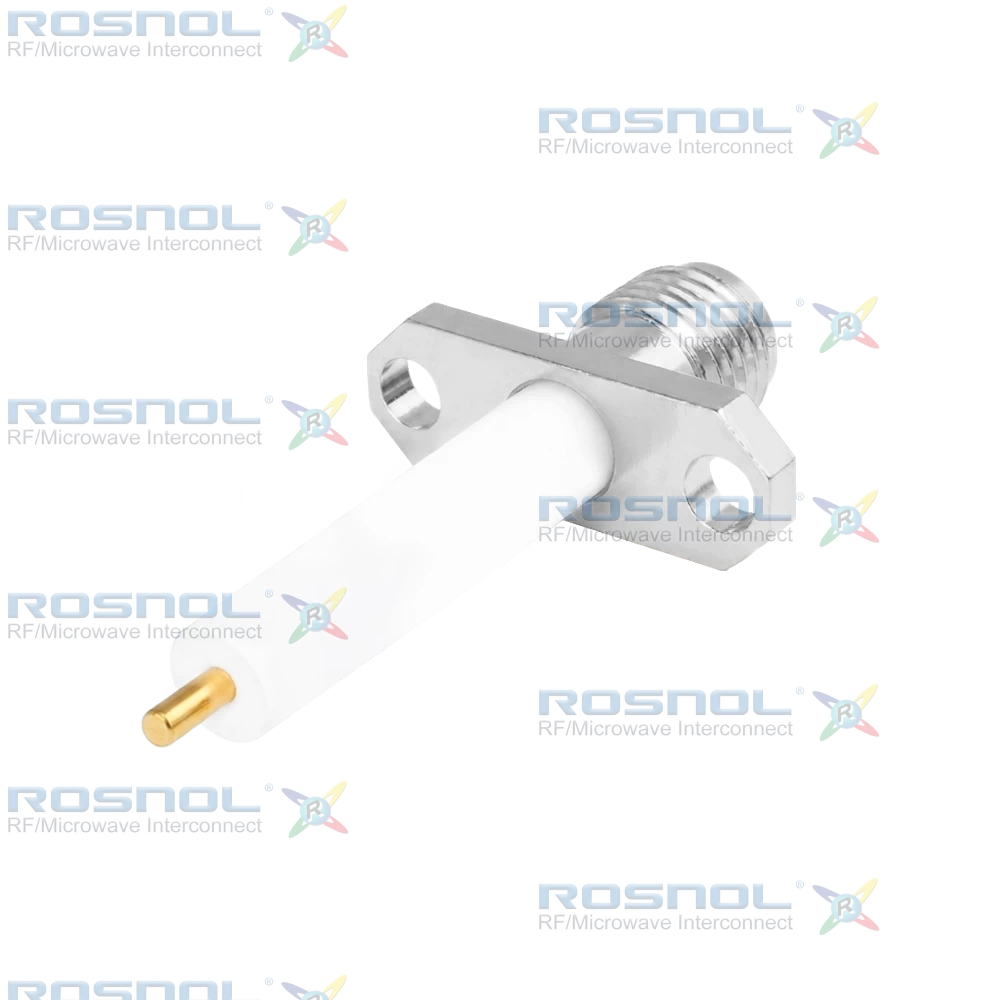

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-2740A/9X is a high-performance SMA Jack (Female) connector engineered for RF and microwave applications that require secure panel-mounted connectivity and reliable electrical performance. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount construction, and stub terminal design with 12.22 mm (0.481 inch) hole spacing. Operating from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, helping maintain signal integrity across a broad frequency range. Additional electrical specifications include insulation resistance of ≥ 5 GΩ and power handling of up to 200 W at 2 GHz.

The connector utilizes a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating for excellent conductivity and mating durability. The body is manufactured from stainless steel with a passivated finish for enhanced corrosion resistance, while the PTFE insulator provides dependable dielectric stability. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and mating durability of at least 500 cycles. The connector is designed for operation from -65°C to +165°C in demanding RF environments.

This SMA Jack (Female) RF connector is suitable for wireless communication equipment, microwave assemblies, antenna systems, RF instrumentation, laboratory test platforms, and signal routing applications. Its rugged stainless-steel construction, broad frequency coverage, and reliable flange-mount architecture make it an effective RF interconnect solution for professional high-frequency systems.
