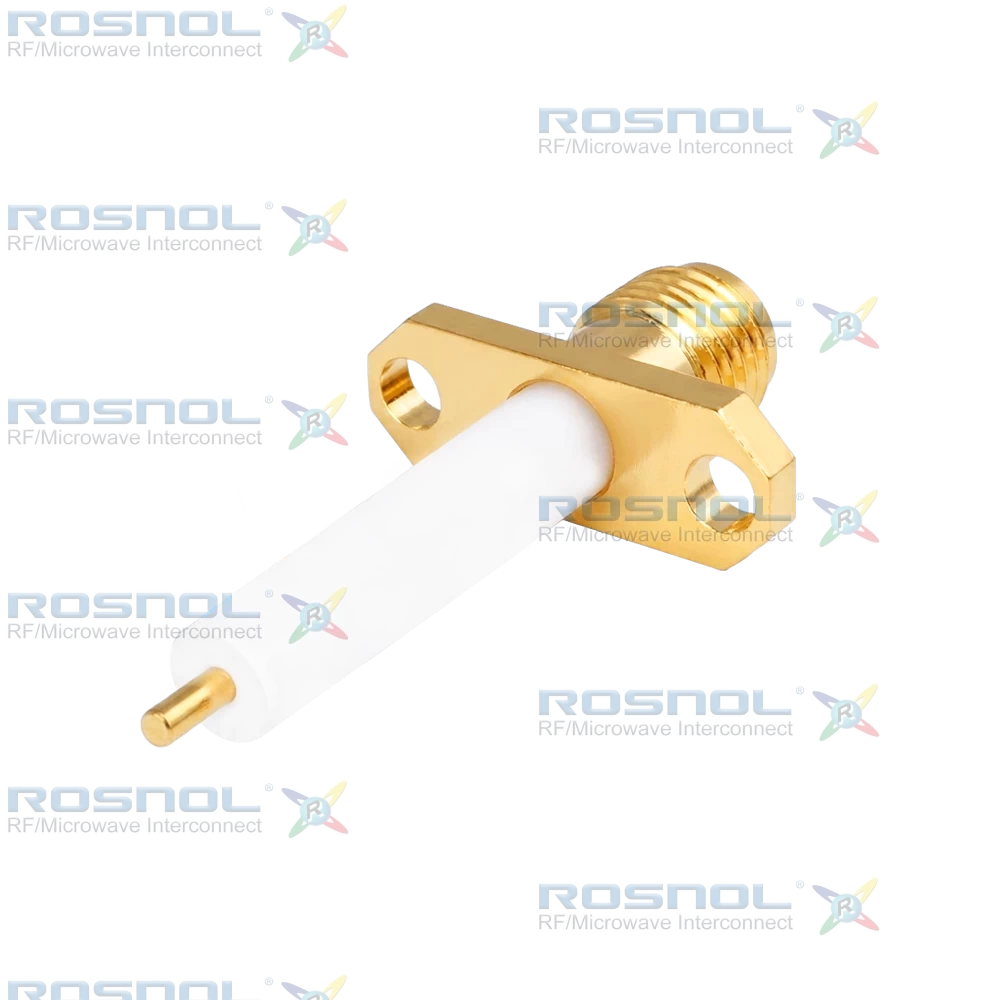

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.
ROSNOL SMA2GTA50-2738A/91 is a high-performance SMA Jack (Female) connector developed for RF and microwave applications requiring precise flange-mounted installation and dependable signal transmission. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.2 mm (0.480 inch) hole spacing. Designed for operation from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. Electrical performance also includes insulation resistance of at least 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.
The connector utilizes a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating to ensure reliable conductivity and long service life. The body is manufactured from brass with gold plating and matching underplating, while the PTFE insulator provides excellent dielectric stability. Mechanical specifications include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and a minimum mating life of 500 cycles. The mounting design incorporates panel dimensions with hole spacing between 12.15 mm and 12.25 mm (0.478 to 0.482 inch) to support accurate installation, while the operating temperature range extends from -65°C to +165°C.
This SMA Jack (Female) connector is suitable for wireless communication systems, RF communication equipment, microwave devices, antenna integration, signal distribution assemblies, and electronic measurement platforms. Its precise mounting configuration, stable electrical performance, and durable plated construction make it a reliable RF interconnect solution for demanding applications.
