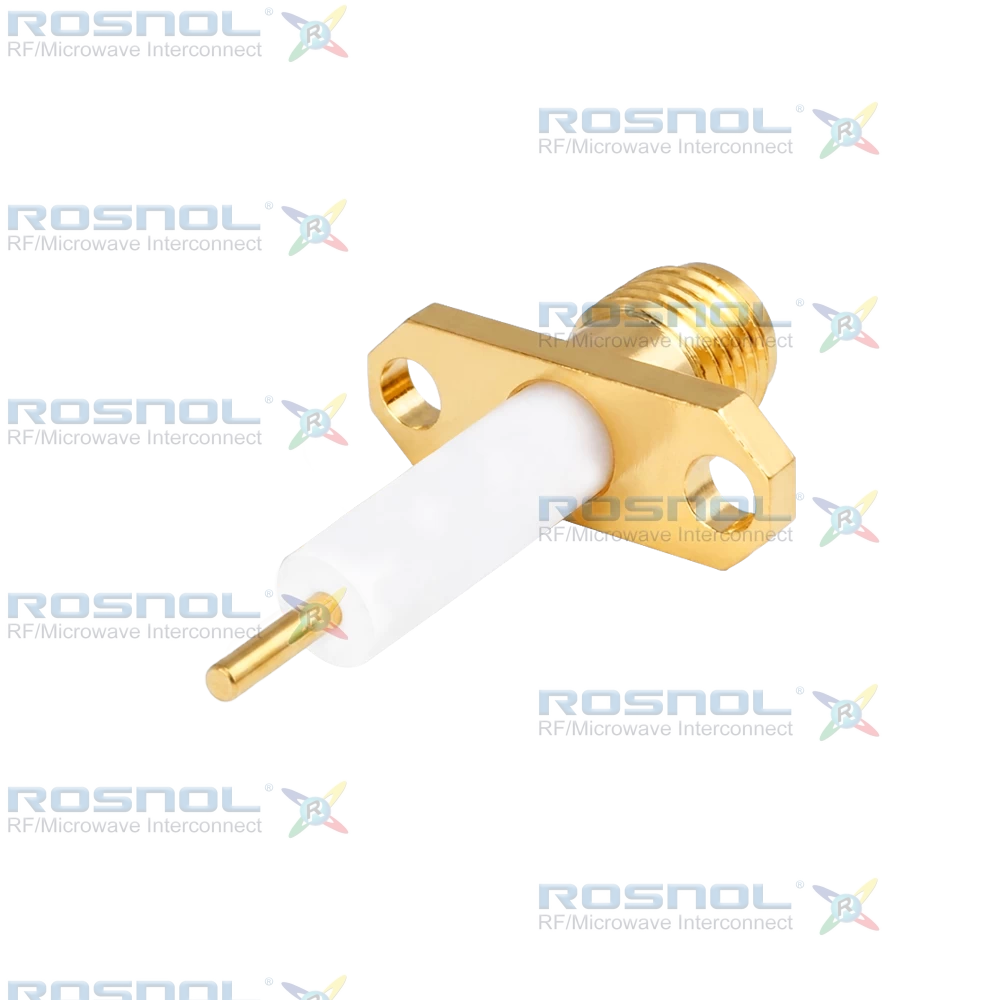

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.
ROSNOL SMA2GTA50-2600A/91 is an SMA Jack (Female) connector designed for RF and microwave systems requiring reliable flange-mounted signal connections. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount structure, and stub terminal configuration with 12.22 mm (0.481 inch) hole spacing. Supporting operation from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. Additional electrical characteristics include insulation resistance of at least 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling up to 200 W at 2 GHz, ensuring stable RF performance.
The connector incorporates a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating for excellent conductivity and mating reliability. Its brass body is finished with gold plating and matching underplating, while a PTFE insulator provides consistent dielectric stability. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, mating durability of at least 500 cycles, and an operating temperature range from -65°C to +165°C.
This SMA Jack (Female) connector is suitable for wireless communication equipment, microwave assemblies, RF test systems, antenna interfaces, instrumentation platforms, and signal routing applications. Its combination of durable construction, secure panel installation, and broad frequency coverage makes it an effective RF connectivity solution for professional high-frequency environments.
