Key Specifications
Description
SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

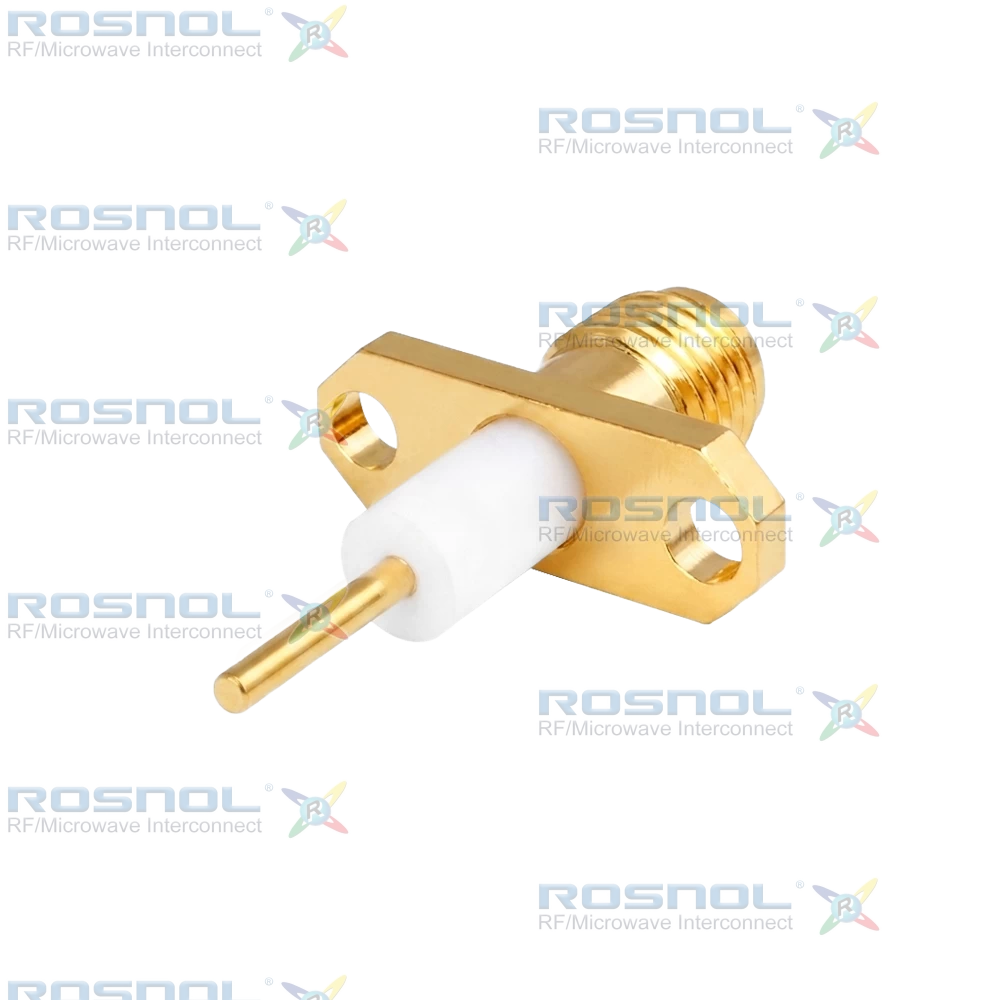

ROSNOL SMA2GTA50-2250A/91 is an SMA Jack (Female) connector engineered for RF and microwave systems requiring stable panel-mounted connectivity and reliable electrical performance. Featuring a solder attachment interface, 2-hole flange mount construction, and stub terminal design, this 50 Ohm connector incorporates 12.22 mm (0.481 inch) hole spacing for secure installation. The connector operates from DC to 18 GHz with a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. Additional electrical characteristics include insulation resistance of at least 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.
The center contact is fabricated from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating to provide reliable conductivity and long-term durability. The connector body is manufactured from brass with gold plating and matching underplating, while the PTFE insulator delivers dependable dielectric stability. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, mating durability of at least 500 cycles, and an operating temperature range from -65°C to +165°C.
This SMA Jack (Female) connector is suitable for wireless communication equipment, RF communication systems, microwave devices, antenna assemblies, laboratory instruments, and signal routing applications. Its precision construction, secure flange-mount design, and stable electrical performance provide a practical RF connectivity solution for demanding applications.
