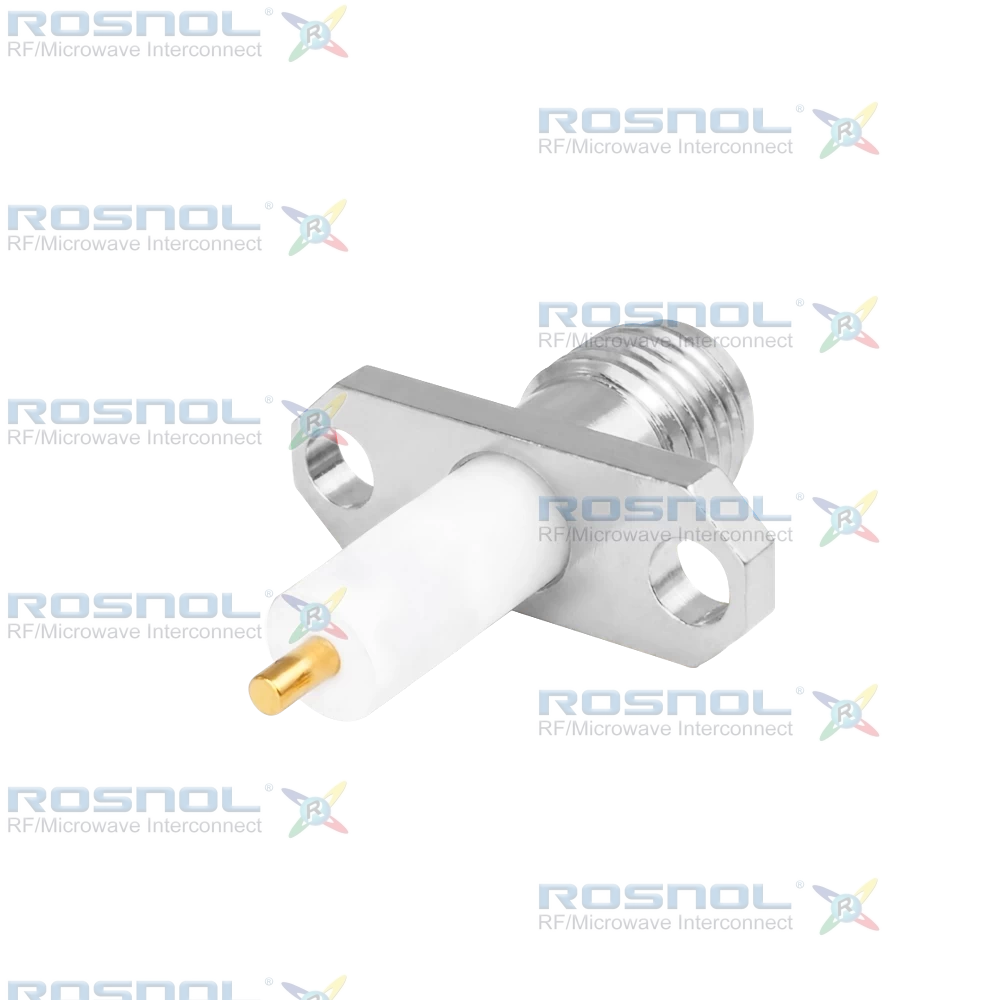

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-2200A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-2200A/9X is an SMA Jack (Female) connector developed for RF and microwave systems that require secure panel integration and dependable electrical performance. Featuring a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) hole spacing, this 50 Ohm connector supports frequencies from DC to 18 GHz. Electrical performance includes a VSWR of ≤ 1.30, insertion loss of ≤ 0.05 × √F (GHz) dB, insulation resistance of at least 5 GΩ, and power handling up to 200 W at 2 GHz. These specifications help maintain efficient signal transmission in high-frequency applications.

The connector utilizes a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating for reliable conductivity. The stainless-steel body features a passivated finish to improve corrosion resistance, while the PTFE insulator provides excellent dielectric stability. Mechanical characteristics include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and a mating life of at least 500 cycles. It is designed to operate continuously from -65°C to +165°C.

This SMA Jack (Female) RF connector is suitable for microwave equipment, wireless communication systems, antenna interfaces, RF test benches, signal distribution assemblies, and instrumentation platforms. Its rugged stainless-steel construction, wide operating frequency range, and reliable flange-mount architecture provide a practical RF connectivity solution for professional environments.
