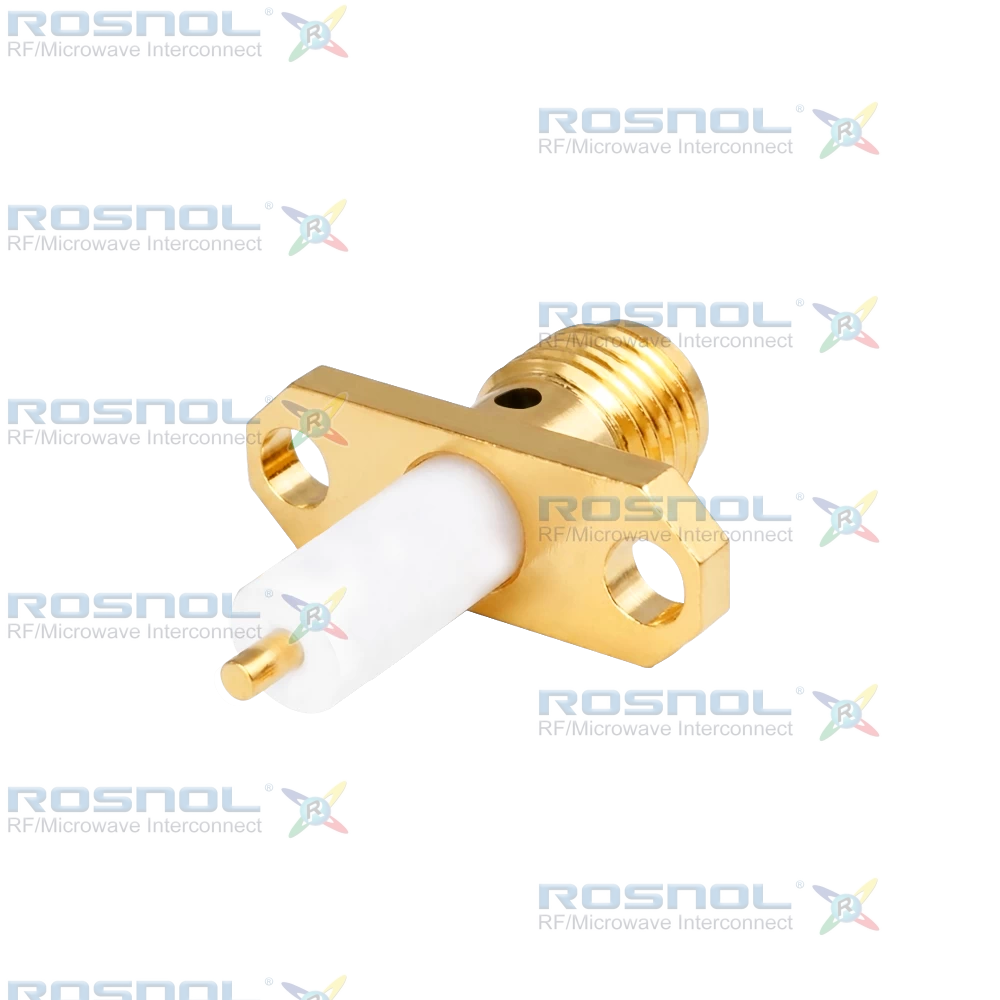

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-2060A-EC/91
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Epoxy Captivation
Bankend Type:
Coaxial End

Description

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

The ROSNOL SMA2GTA50-2060A-EC/91 is a precision SMA jack (female) connector featuring solder attachment, 2-hole flange mount, and stub terminal with 12.22 mm (0.481 inch) hole spacing. This 50 Ω interface operates from DC to 18 GHz with VSWR ≤ 1.30 and insertion loss ≤ 0.05 × √f (GHz) dB. Electrical ratings include insulation resistance ≥ 5 GΩ, center contact resistance ≤ 3 mΩ, outer contact resistance ≤ 2 mΩ, test voltage of 1000 V rms, working voltage of 480 V rms, and power handling up to 200 W at 2 GHz, supporting high-frequency signal integrity in flange-mounted RF designs.

The body is fabricated from brass with gold plating over a non-magnetic nickel-phosphorus underplate, while the center contact is beryllium copper with identical gold plating for excellent conductivity and durability. A PTFE insulator provides stable dielectric characteristics. The design features epoxy captivation of the center contact, screwlock coupling, and soldered center contact termination. Mechanical performance includes ≥ 500 mating cycles, axial captivation force ≥ 27 N, radial captivation ≥ 3 Ncm, and recommended coupling torque of 0.8–1.1 Nm. The connector operates reliably across a temperature range of –65 °C to +165 °C under thermal and mechanical stress.

This SMA jack is intended for RF and microwave systems requiring robust flange-mounted interconnects, including communication equipment, test and measurement instruments, radar assemblies, and wireless infrastructure. Its low VSWR, controlled insertion loss, robust gold-plated contacts, and wide temperature capability ensure consistent signal performance and extended operational life for RF engineers and procurement teams selecting precision coaxial connectors.
