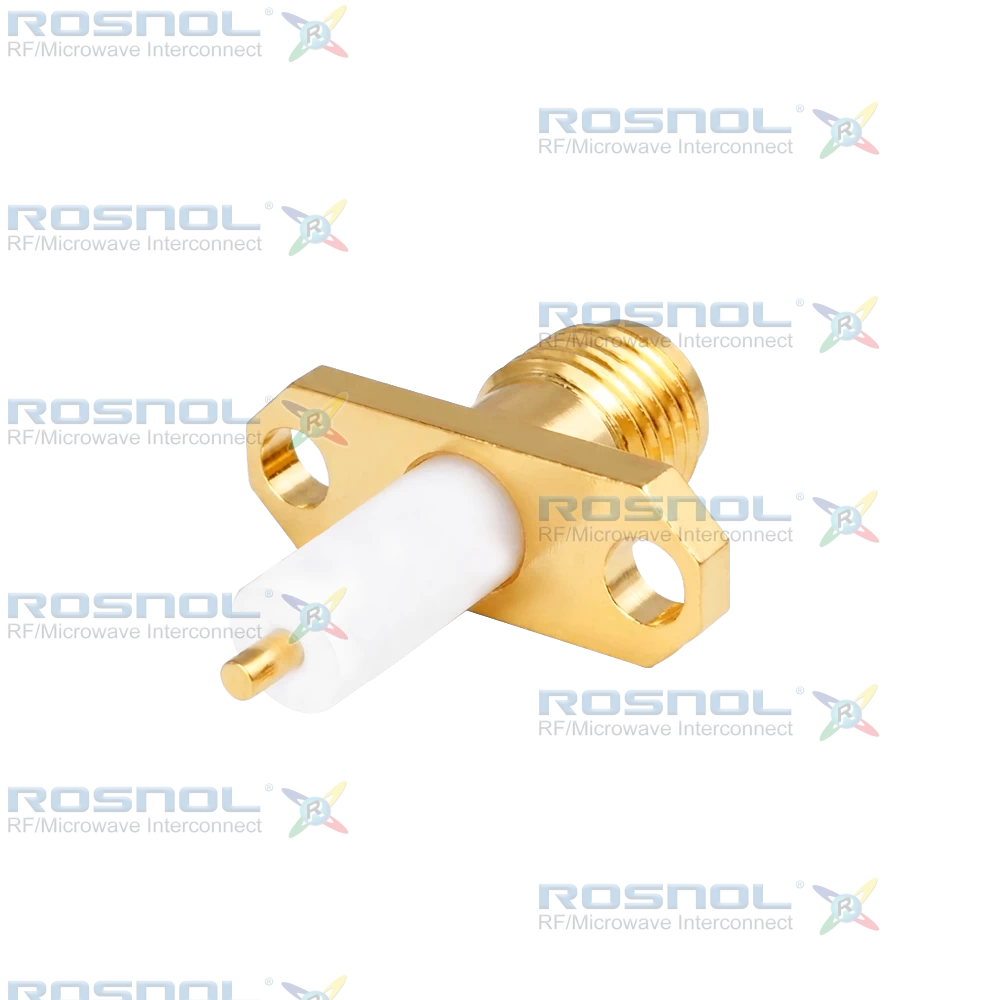

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.
ROSNOL SMA2GTA50-2060A/91 is a precision SMA Jack (Female) connector designed for RF and microwave systems requiring secure panel-mounted connectivity and stable signal transmission. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) hole spacing. Operating from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, supporting reliable performance across a broad frequency range. Additional electrical specifications include insulation resistance of at least 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.
The connector incorporates a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating for excellent conductivity and mating reliability. The body is manufactured from brass with gold plating and matching underplating, while a PTFE insulator provides dependable dielectric stability. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and a minimum mating life of 500 cycles. Designed for demanding operating conditions, the connector supports temperatures from -65°C to +165°C.
This SMA Jack (Female) RF connector is suitable for RF communication equipment, wireless infrastructure, microwave assemblies, antenna interfaces, signal distribution systems, and electronic test instrumentation. Its durable construction, wide DC-18 GHz frequency range, and secure flange-mount design provide a dependable RF interconnect solution for professional high-frequency applications.
