SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-2000A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

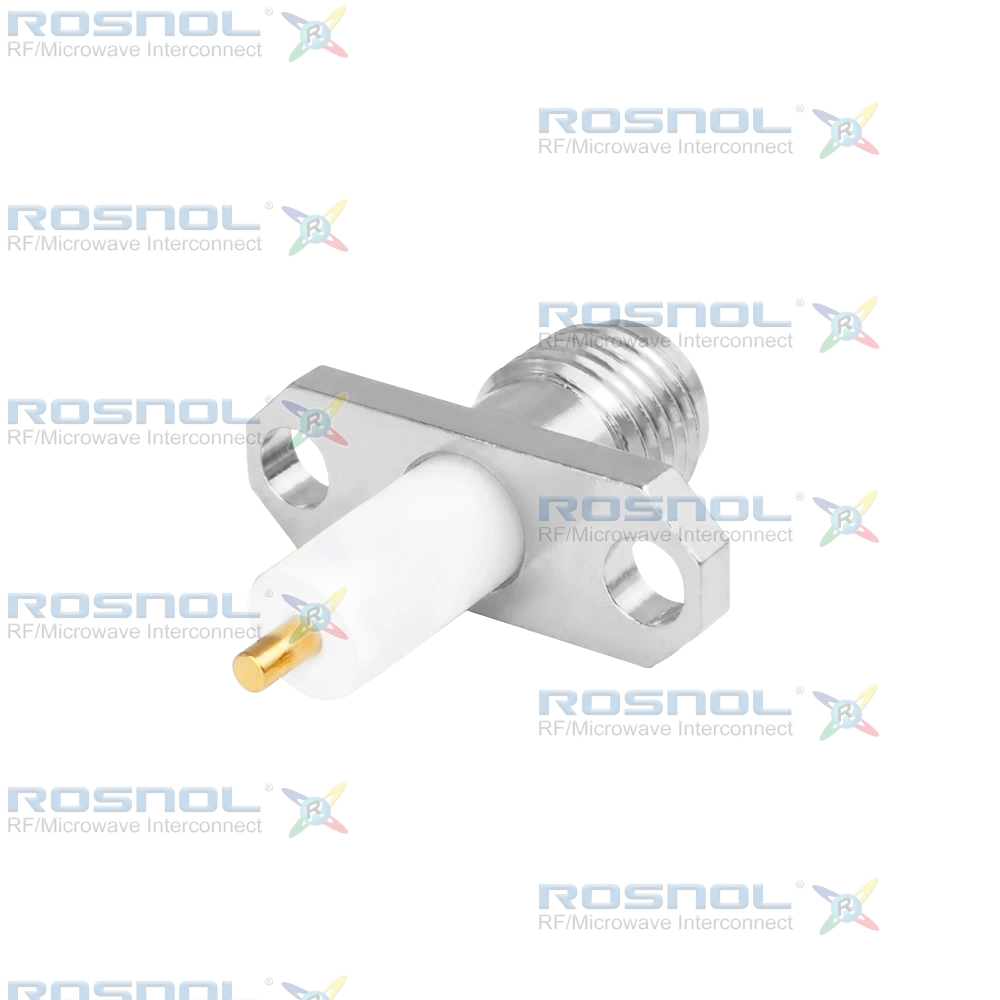

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-2000A/9X is an SMA Jack (Female) connector designed for high-frequency RF and microwave systems that require secure flange mounting and dependable electrical performance. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) mounting hole spacing. Supporting operation from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB. The connector also offers insulation resistance of ≥ 5 GΩ and power handling up to 200 W at 2 GHz, helping maintain signal integrity in demanding applications.

The connector incorporates a beryllium copper center contact with gold plating and non-magnetic nickel-phosphorus underplating for reliable conductivity and mating stability. The body is manufactured from stainless steel with a passivated finish to improve corrosion resistance, while the PTFE insulator ensures stable dielectric characteristics. Mechanical specifications include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, mating durability of at least 500 cycles, and an operating temperature range from -65°C to +165°C.

This SMA Jack (Female) connector is suitable for RF communication equipment, microwave modules, wireless systems, antenna assemblies, signal distribution devices, and laboratory instrumentation. Its stainless-steel construction, wide operating frequency range, and secure panel-mount design make it an effective RF interconnect solution for professional RF and microwave applications.
