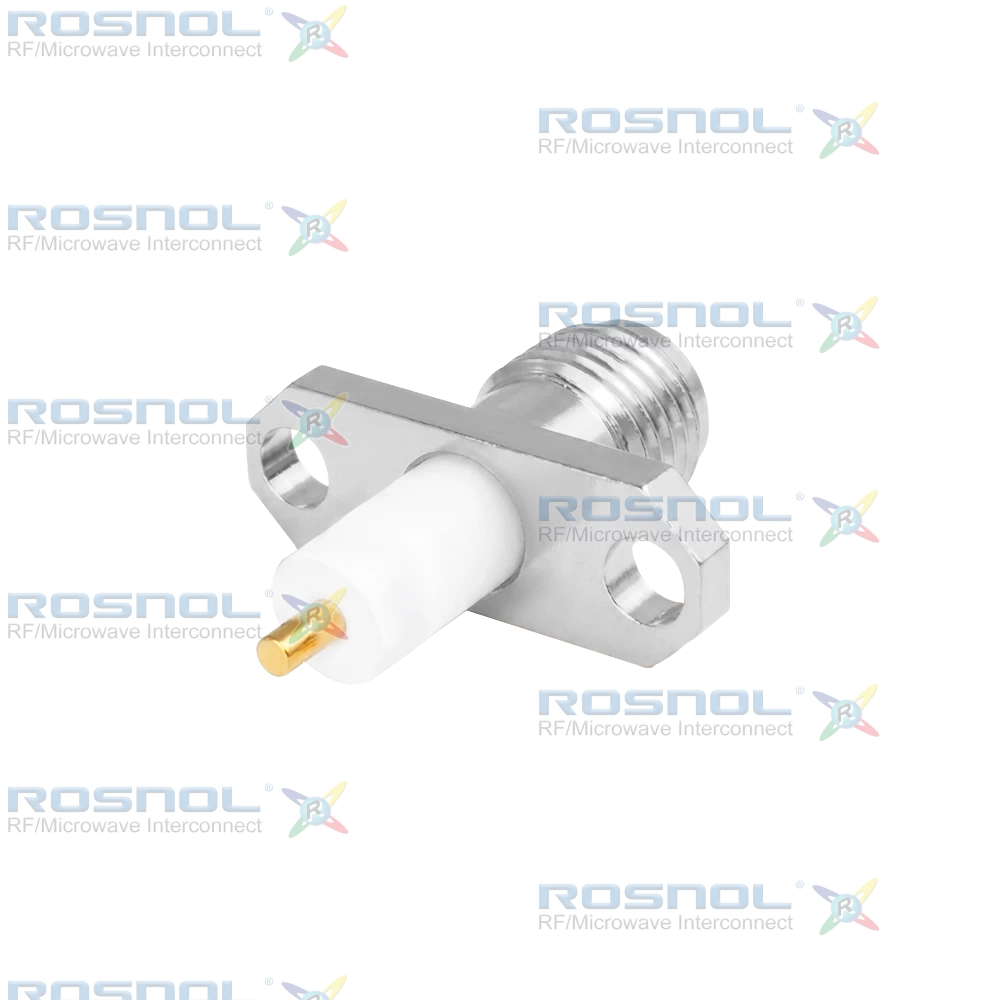

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-1850A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-1850A/9X is a high-performance SMA Jack (Female) connector developed for RF and microwave applications requiring secure flange-mounted installation and dependable electrical performance. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount design, and stub terminal configuration with 12.22 mm (0.481 inch) hole spacing. It operates from DC to 18 GHz and provides a VSWR of ≤ 1.30 with insertion loss of ≤ 0.05 × √F (GHz) dB, supporting efficient signal transmission. Additional specifications include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability of up to 200 W at 2 GHz.

The connector utilizes a beryllium copper center contact with gold plating and non-magnetic nickel-phosphorus underplating for excellent conductivity and long-term reliability. The body is manufactured from stainless steel with a passivated finish to enhance corrosion resistance, while the PTFE insulator provides stable dielectric performance. Mechanical specifications include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and a minimum of 500 mating cycles. The operating temperature range extends from -65°C to +165°C.

This SMA Jack (Female) connector is ideal for RF communication equipment, wireless infrastructure, microwave devices, antenna interfaces, instrumentation systems, and test environments. Its robust construction, broad DC-18 GHz frequency coverage, and secure flange-mount configuration make it a dependable RF interconnect solution for professional RF and microwave applications.
