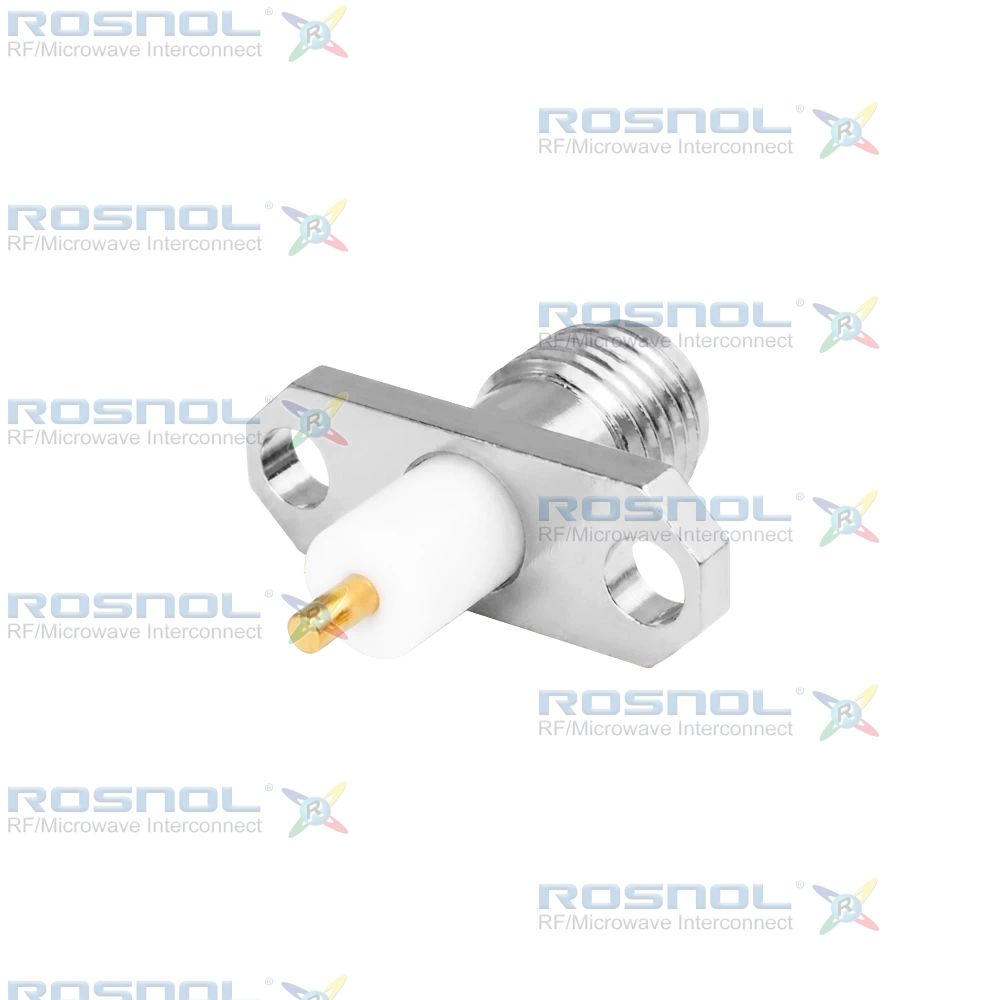

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-1745A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-1745A/9X is a precision SMA Jack (Female) connector designed for RF and microwave applications that require secure panel mounting and stable signal transmission. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) hole spacing. Operating from DC to 18 GHz, it provides a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, helping maintain excellent signal integrity across a broad frequency range. Additional electrical specifications include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability of up to 200 W at 2 GHz.

The connector incorporates a beryllium copper center contact with gold plating over non-magnetic nickel-phosphorus underplating to ensure reliable conductivity and mating performance. The body is manufactured from stainless steel with a passivated finish for enhanced corrosion resistance, while a PTFE insulator provides stable dielectric properties. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and mating durability of at least 500 cycles. The connector is rated for operation from -65°C to +165°C, supporting dependable use in demanding environments.

This SMA Jack (Female) RF connector is well suited for RF communication systems, microwave modules, wireless infrastructure, antenna interfaces, signal distribution assemblies, and test and measurement equipment. Its durable stainless-steel construction, wide frequency coverage, and reliable flange-mount design make it an effective RF interconnect solution for professional applications.
