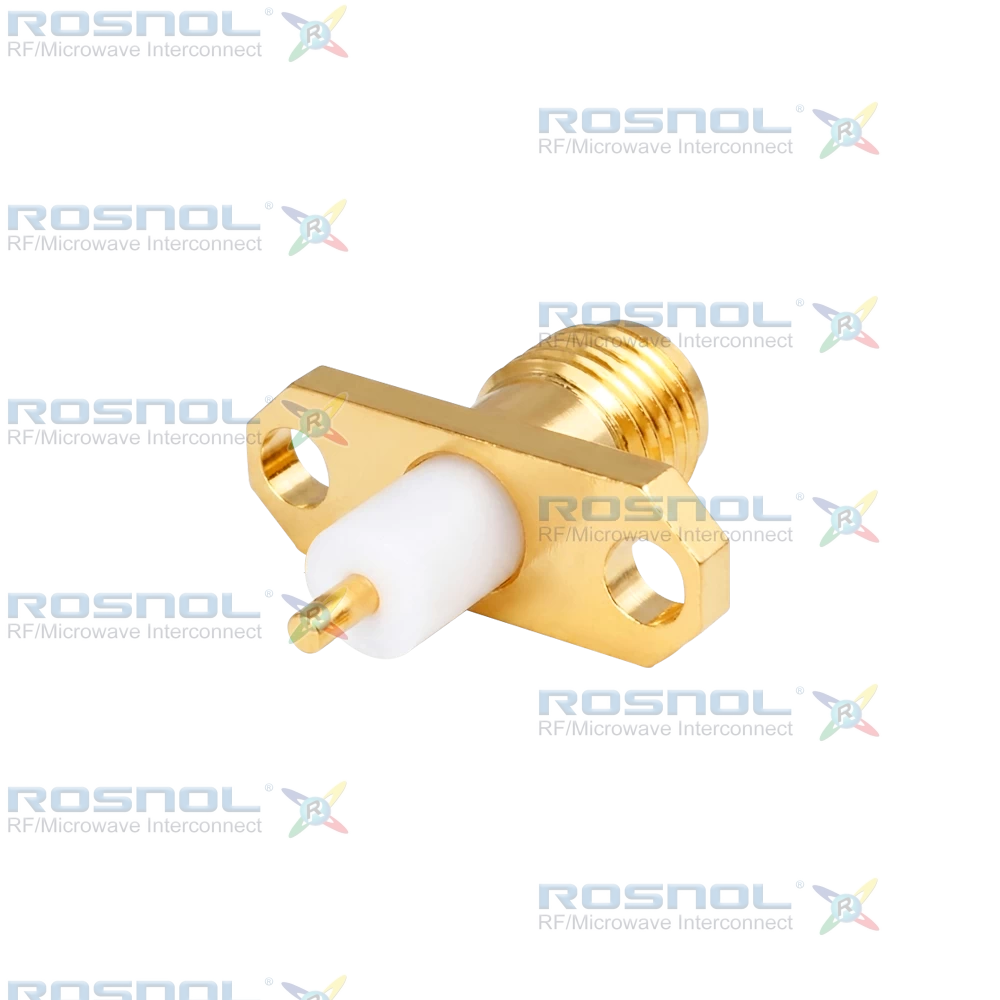

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.
ROSNOL SMA2GTA50-1745A/91 is an SMA Jack (Female) connector engineered for high-frequency RF and microwave applications requiring dependable panel-mounted connectivity. Featuring a solder attachment interface, 2-hole flange mount structure, and stub terminal configuration, this 50 Ohm connector utilizes 12.22 mm (0.481 inch) hole spacing for secure installation. The connector operates from DC to 18 GHz and delivers a VSWR of ≤ 1.30 with insertion loss of ≤ 0.05 × √F (GHz) dB. Additional electrical characteristics include insulation resistance of at least 5 GΩ and power handling capability up to 200 W at 2 GHz.
The center contact is fabricated from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating, while the body is constructed from brass with matching gold plating. A PTFE insulator provides reliable dielectric stability and electrical isolation. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation design, and a mating life of at least 500 cycles. The connector supports a temperature range from -65°C to +165°C, making it suitable for operation in demanding environmental conditions.
This SMA Jack (Female) connector is suitable for wireless communication equipment, RF communication systems, microwave assemblies, antenna systems, laboratory instruments, and high-frequency signal routing applications. Its combination of stable electrical performance, durable plated construction, and reliable flange-mount architecture provides a practical RF connectivity solution.
