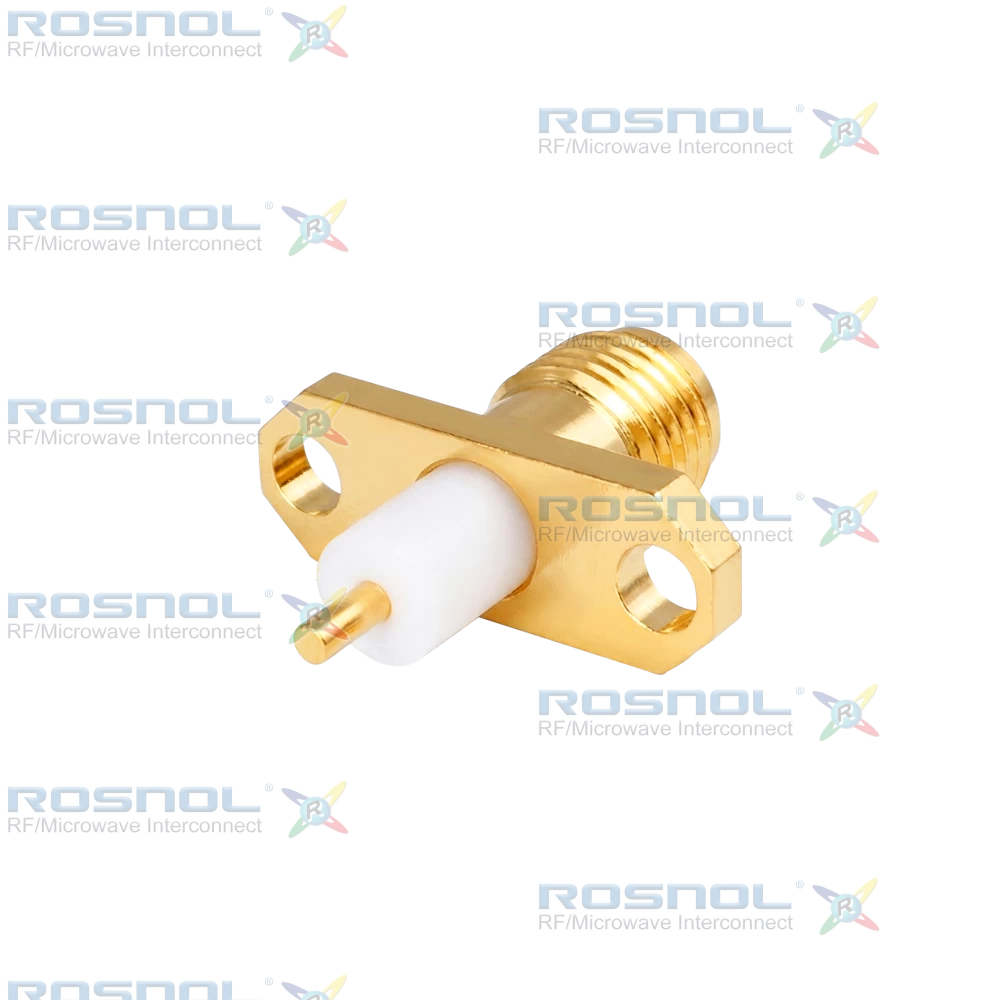

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-1740A/91
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-1740A/91 is a precision SMA Jack (Female) connector developed for RF and microwave applications requiring reliable panel-mounted signal transmission. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) hole spacing. Supporting operation from DC to 18 GHz, it offers a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, helping maintain dependable electrical performance in high-frequency environments. Additional specifications include insulation resistance of ≥ 5 GΩ and power handling capability of up to 200 W at 2 GHz.

The center contact is fabricated from beryllium copper with gold plating and non-magnetic nickel-phosphorus underplating for excellent conductivity and mating reliability. The connector body is manufactured from brass with matching gold plating and underplating, while a PTFE insulator provides consistent dielectric characteristics. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and mating durability of at least 500 cycles. The connector is designed to operate within a temperature range of -65°C to +165°C.

This SMA Jack (Female) RF connector is suitable for communication systems, microwave equipment, wireless infrastructure, antenna interfaces, RF signal routing assemblies, and laboratory measurement equipment. Its robust construction, stable electrical performance, and secure flange-mount design make it a reliable solution for professional RF and microwave interconnection requirements.
