SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-1700A-EC/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Epoxy Captivation
Bankend Type:
Coaxial End

Description

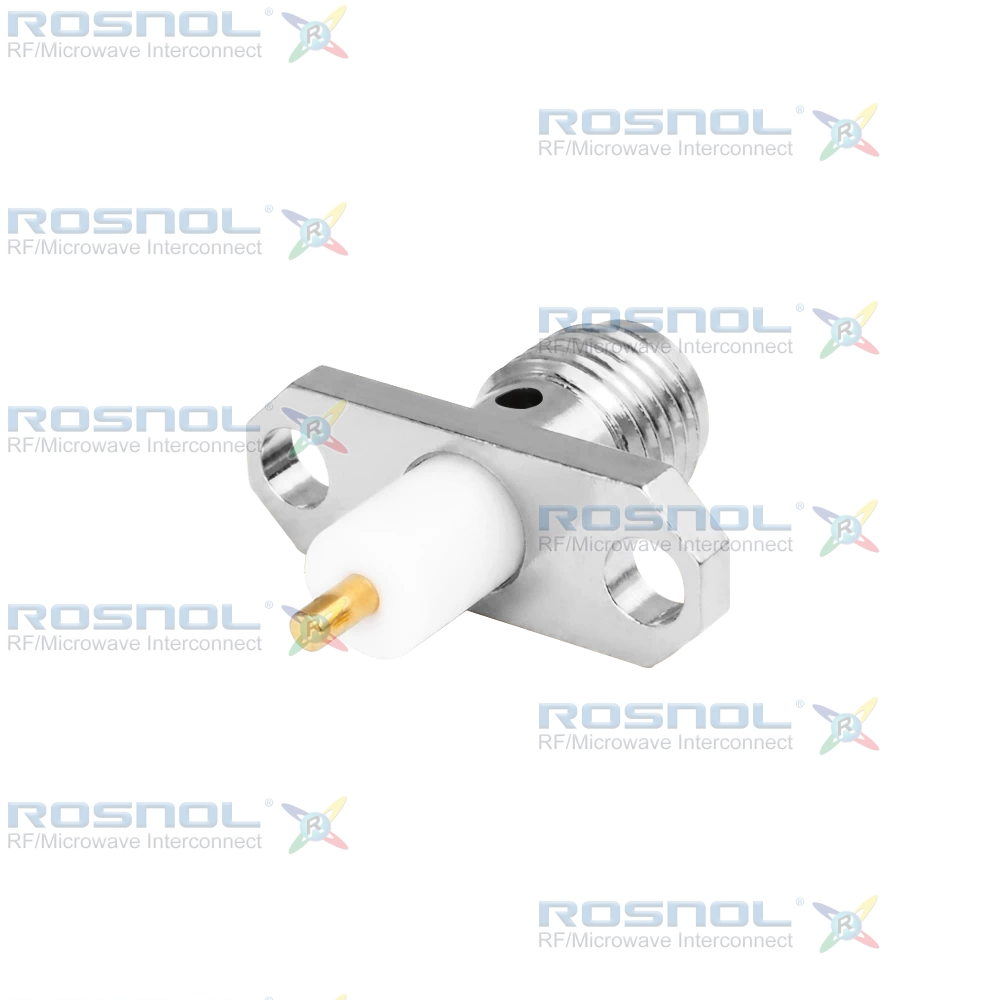

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

The ROSNOL SMA2GTA50-1700A-EC/9X is a precision SMA jack (female) connector with solder attachment, 2-hole flange mount, and stub terminal featuring 12.22 mm (0.481 inch) hole spacing. Designed for reliable RF performance, this 50 Ω interface supports operation from DC to 18 GHz with VSWR ≤ 1.30 and insertion loss ≤ 0.05 × √f (GHz) dB. Key electrical data include insulation resistance ≥ 5 GΩ, center contact resistance ≤ 3 mΩ, outer contact resistance ≤ 2 mΩ, test voltage of 1000 V rms, working voltage of 480 V rms, and power handling up to 200 W at 2 GHz, enabling stable signal integrity in demanding interconnect environments.

The body is constructed from stainless steel with a passivated finish, while the center contact uses beryllium copper with gold plating over a non-magnetic nickel-phosphorus underplate. A PTFE insulator ensures reliable dielectric properties. The construction features epoxy captivation of the center contact, screwlock coupling mechanism, and soldered center contact termination. Mechanical specifications include ≥ 500 mating cycles, axial captivation force ≥ 27 N, radial captivation ≥ 3 Ncm, and recommended coupling torque of 0.8–1.1 Nm. Environmental capability covers a temperature range of –65 °C to +165 °C, ensuring dependable operation across thermal extremes.

This SMA jack serves RF and microwave systems that require durable flange-mounted interconnects, such as communication equipment, test instrumentation, radar modules, and wireless infrastructure. The combination of low VSWR, controlled insertion loss, corrosion-resistant stainless steel body, and broad temperature range provides reliable signal transmission and long service life for engineers and buyers specifying high-performance coaxial connectors.
