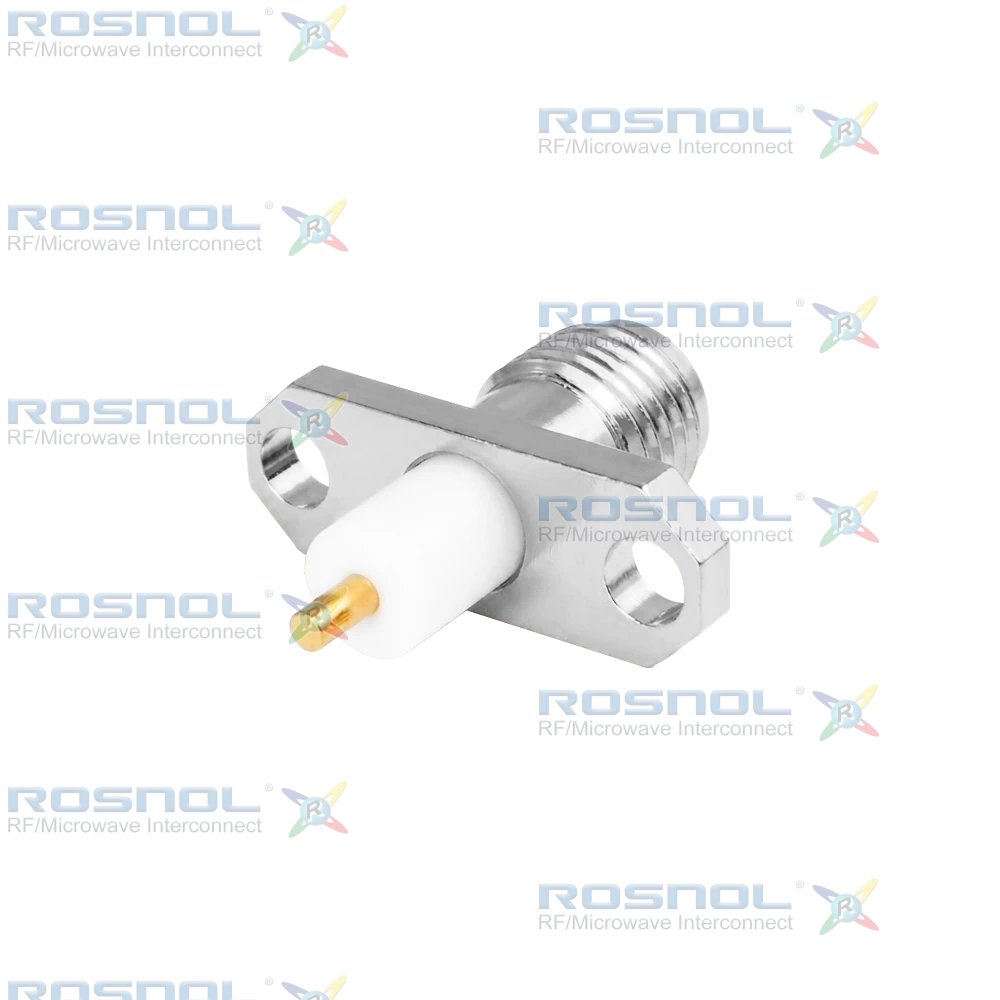

SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-1700A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-1700A/9X is a high-frequency SMA Jack (Female) connector designed for solder attachment and 2-hole flange mount RF applications. This 50 Ohm connector features a stub terminal design with 12.22 mm (0.481 inch) hole spacing, providing secure panel installation and dependable electrical performance. Operating from DC to 18 GHz, it delivers a VSWR of ≤ 1.30 and insertion loss of ≤ 0.04 × √F (GHz) dB, supporting low-loss signal transmission in RF and microwave systems. Additional specifications include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.

The connector incorporates a beryllium copper center contact with gold plating and non-magnetic nickel-phosphorus underplating for reliable conductivity and mating performance. The body is manufactured from stainless steel with a passivated finish to enhance corrosion resistance, while the PTFE insulator provides stable dielectric properties. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation design, and durability of at least 500 mating cycles. The connector is designed to operate across a temperature range of -65°C to +165°C.

This SMA Jack (Female) RF connector is suitable for wireless communication equipment, microwave modules, RF measurement systems, antenna assemblies, test fixtures, and signal distribution networks. Its low insertion loss, wide frequency coverage, and rugged stainless-steel construction make it a dependable RF interconnect solution for demanding professional applications.
