SMA Female Connector, 2 Hole Flange, 18 GHz

Order No:SMA2GTA50-1700A/91
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

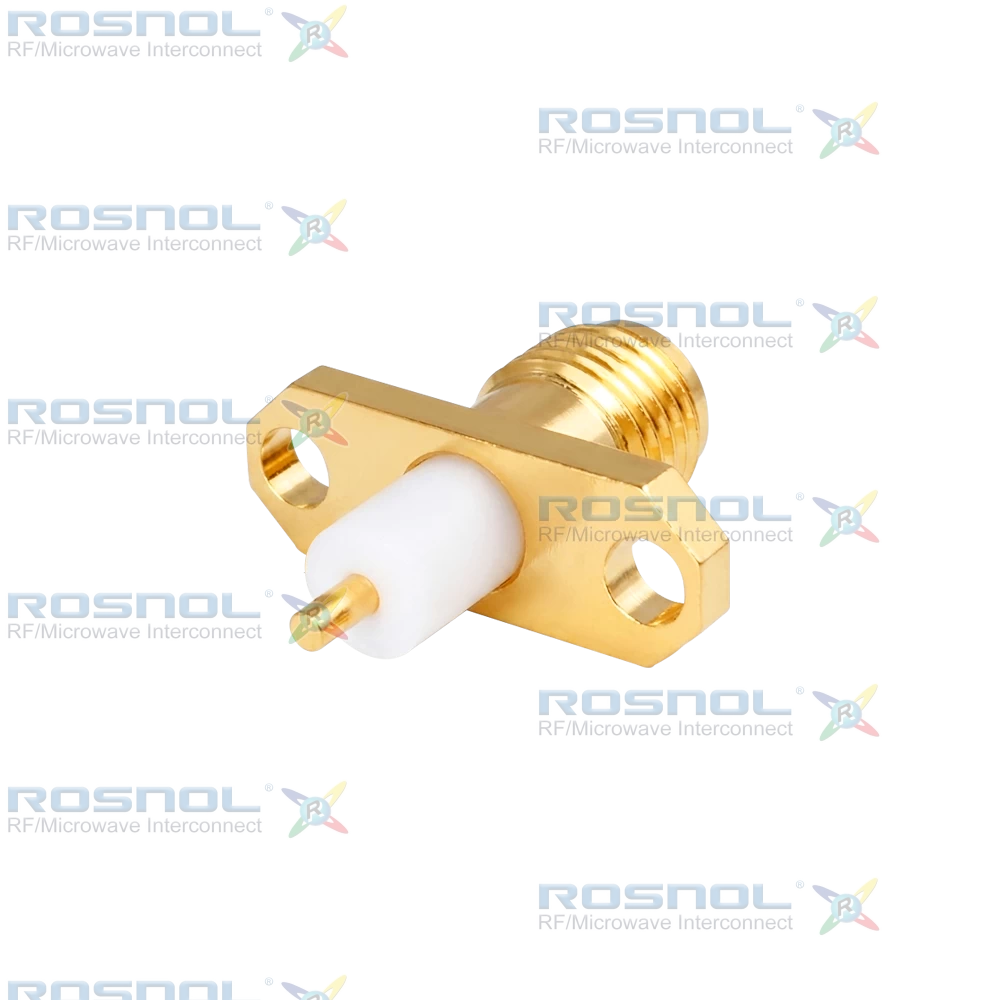

SMA Female Connector, 2 Hole Flange Mount, Stub Terminal, 12.22 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

ROSNOL SMA2GTA50-1700A/91 is an SMA Jack (Female) connector designed for RF and microwave applications requiring secure panel mounting and dependable signal transmission. This 50 Ohm connector features a solder attachment interface, 2-hole flange mount configuration, and stub terminal design with 12.22 mm (0.481 inch) hole spacing. Operating from DC to 18 GHz, it delivers a VSWR of ≤ 1.30 and insertion loss of ≤ 0.05 × √F (GHz) dB, supporting stable high-frequency performance. Additional electrical characteristics include insulation resistance of ≥ 5 GΩ, center contact resistance of ≤ 3 mΩ, and power handling capability up to 200 W at 2 GHz.

The center contact is manufactured from beryllium copper with gold plating over non-magnetic nickel-phosphorus underplating, while the body is constructed from brass with the same plating system. A PTFE insulator provides reliable dielectric stability and electrical isolation. Mechanical features include a screw-lock coupling mechanism, soldered center contact, mechanical captivation structure, and durability of at least 500 mating cycles. Designed for demanding operating conditions, the connector supports a temperature range from -65°C to +165°C and provides consistent mechanical performance throughout its service life.

This SMA Jack (Female) RF connector is suitable for RF communication systems, microwave assemblies, wireless equipment, antenna interfaces, signal distribution modules, and electronic test instrumentation. Its combination of broad DC-18 GHz frequency coverage, durable plated construction, and reliable flange-mount design makes it a practical solution for professional RF interconnect applications.
