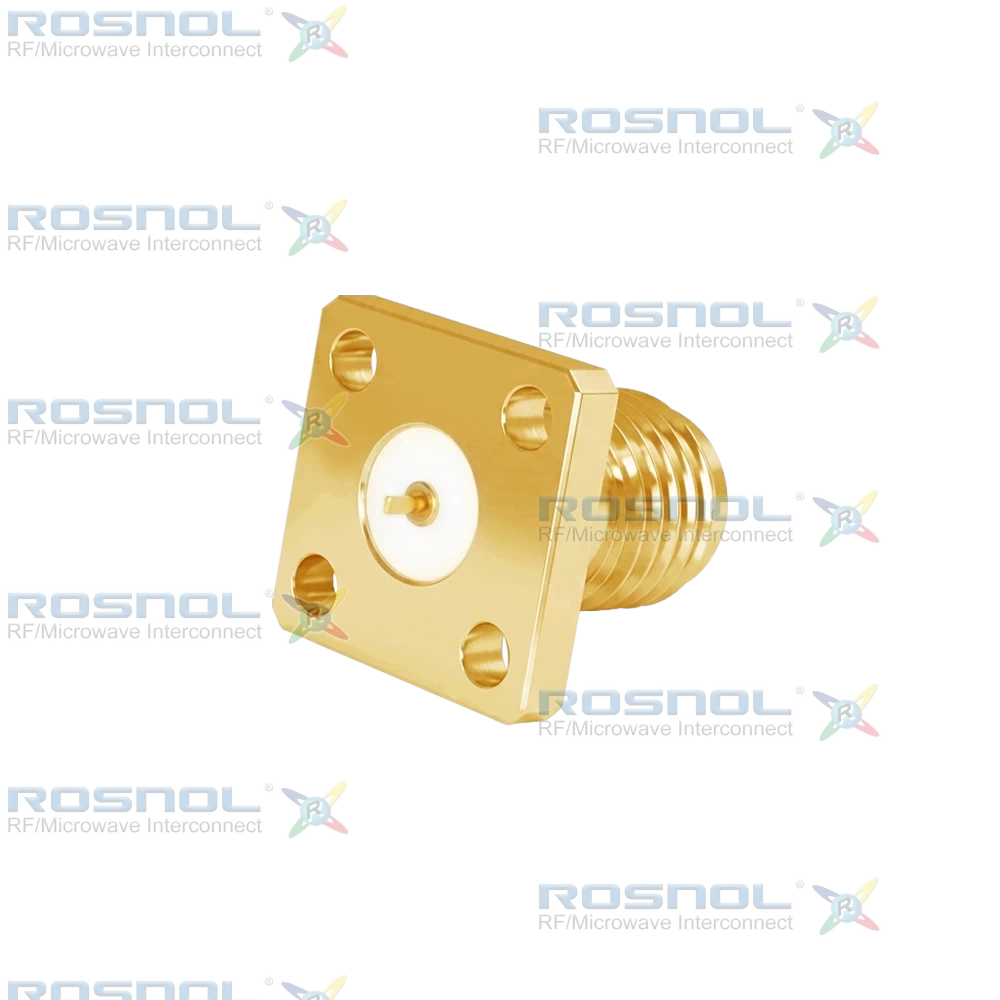

SMA Female Connector, 4 Hole Flange, Flat Terminal, 6.35 mm Hole Spacing, 50 Ω, 18 GHz VSWR ≤1.30, Epoxy Captivated.
The ROSNOL SMA2GFD50-1077B-EC/91 is an SMA Jack (Female) connector designed with solder attachment, 4-hole flange mount, and flat terminal using 6.35 mm (.250 inch) hole spacing. It covers DC to 18 GHz with 50 Ω impedance and delivers VSWR ≤ 1.30 together with insertion loss ≤ 0.04 × √f (GHz) dB for low-loss RF signal integrity.
Construction features a brass body with gold plating over non-magnetic nickel-phosphorus underplating, a beryllium copper center contact with gold plating, and a PTFE insulator. Epoxy captivation locks the center contact in place, providing strong axial and radial retention that resists displacement from vibration or shock, preserves contact integrity over repeated cycles, and supports long-term electrical stability. The design accommodates ≥ 500 mating cycles via screwlock coupling and a temperature range of –65 °C to +165 °C.
Suitable for panel-mount RF and microwave applications, this SMA Jack serves communication systems, test instrumentation, and electronic devices that require dependable high-frequency connections up to 18 GHz. Its gold-plated brass body, epoxy-captivated contact, and solid electrical performance offer a practical, reliable interconnect option for RF engineers and system designers.
